Din Rail Mount Power & Back-up Modules
DIN Rail Power Supplies install on metal standard DIN rail, commonly used for mounting circuit breakers and industrial control equipment inside industrial equipment. These power supplies come in varying Voltage and Wattages to ensure that the product offering fulfills all of your needs. With a high reliability and compact size, they are an excellent choice for any space-critical applications where a mountable AC-DC converter is required. This power supply also contains a universal AC input and a short circuit, overload, and over voltage protection. Additionally, LED Indicators on the power supply indicates output voltage status. The enclosure is UL compliant fully isolated plastic and made with a slim design with a total product weight of only .35 lbs. This device also operates in extended temperatures from -20°- 70° C. We offer large selection of DIN Rail Power supplies for automation, industrial and process control applications.
DIN RAIL POWER SUPPLIES

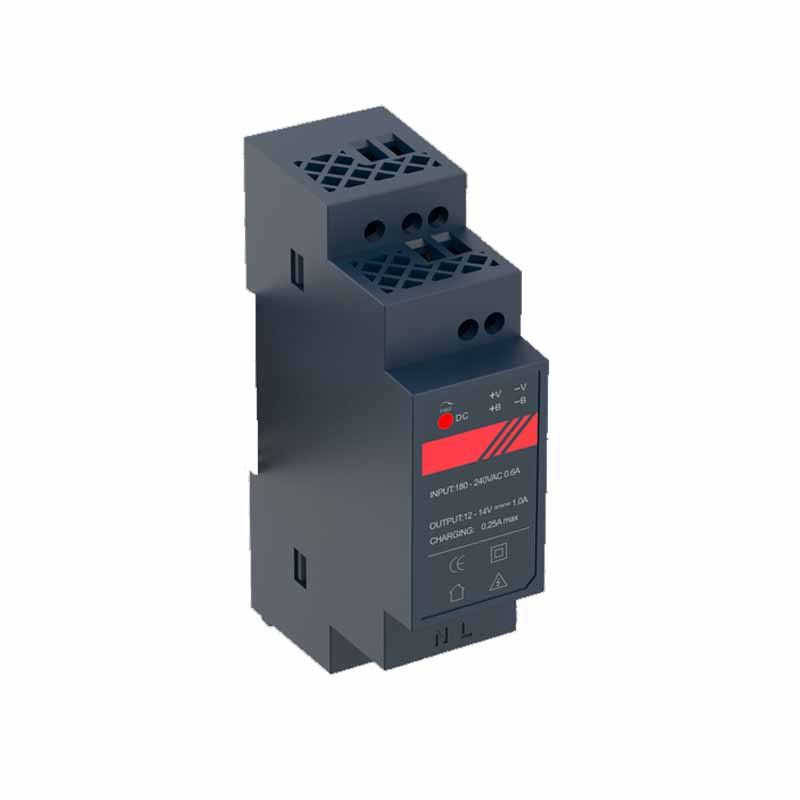

F-12024-01
Input Voltage range – 190-265VAC
Maximum Output Power: 28W.
High efficiency, long life and high reliability.
Protection: Input fuse/overload/over voltage/short circuit.
Multifunction LED indicators.
100% full load burn-it test.
Din Rail Mounting.
F-12060-02
Input Voltage range – 190-265VAC
Maximum Output Power: 70W.
High efficiency, long life and high reliability.
Protection: Input fuse/overload/over voltage/short circuit.
Multifunction LED indicators.
100% full load burn-it test.
Din Rail Mounting.
F-24060-02
Input Voltage range – 190-265VAC
Maximum Output Power: 70W.
High efficiency, long life and high reliability.
Protection: Input fuse/overload/over voltage/short circuit.
Multifunction LED indicators.
100% full load burn-it test.
Din Rail Mounting.

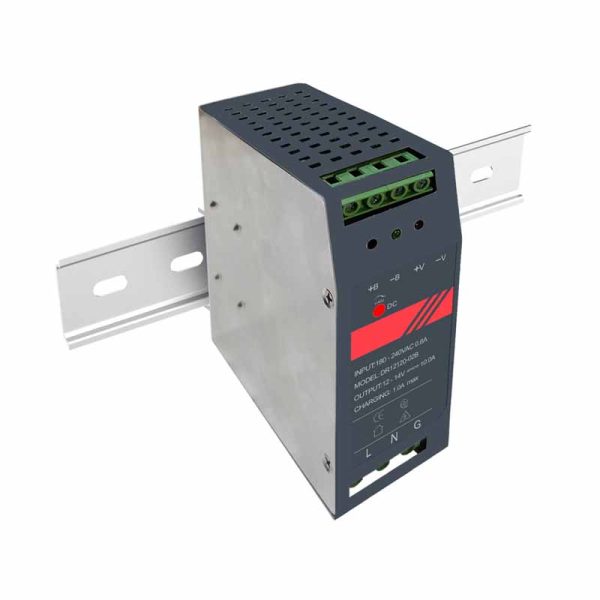

F-24120-02
Input Voltage range – 190-265VAC
Maximum Output Power: 140W.
High efficiency up to 88%, long life and high reliability.
Protection: Input fuse/overload/over voltage/short circuit.
Multifunction LED indicators.
100% full load burn-it test.
Din Rail Mounting.
DIN RAIL BACK-UP POWER SUPPLIES (UPS)
F-12024UPS
DIN-Rail Mounting.
Input voltage range – 190-265VAC
Maximum Output Power – 28W
High efficiency, long life and high reliability.
Multifunction LED indicators.
100% full load burn-it test.
Charging current (Battery mode): 250MA
F-12060UPS
DIN-Rail Mounting.
Input voltage range – 190-265VAC
Maximum Output Power – 70W
High efficiency, long life and high reliability.
Multifunction LED indicators.
100% full load burn-it test.
Charging current (Battery mode): 250MA
F-24060UPS
DIN-Rail Mounting.
Input voltage range – 190-265VAC
Maximum Output Power – 70W
High efficiency, long life and high reliability.
Multifunction LED indicators.
100% full load burn-it test.
Charging current (Battery mode): 250MA
F-24120UPS
Miniature plastic housing for DIN-Rail mounting.
Input voltage range – 190-265VAC
Maximum Output Power – 140W
High efficiency, long life and high reliability.
Multifunction LED indicators.
100% full load burn-it test.
Charging current (Battery mode): 250MA
