Lift Access Controllers

Nowadays, Corporate Offices, Healthcare, Manufacturing Units, Hotels, Chemical Industries, educational and many other buildings are equipped with modern lifts/elevators. These sectors need to intensify security by lifts/elevator access control system. Elock  Lift/Elevator Access Control System authorizes users to have access to specific floors in a building or to all floors, at a pre-determined date and time zone. This helps to have limited access to building or certain floors from unauthorized users. Moreover, Lift/Elevator Access Control system can grant or deny access based on user’s classification, time-based classification and group-wise classification. The access to the elevators can be defined by the administrator through the help of PC based access control management application.

Types of elevator Access control configurations:

  1. Single Elevator Access Control to selected Floors or all floors
  2. Multi- Elevator with Access to Selected Floors or all floors

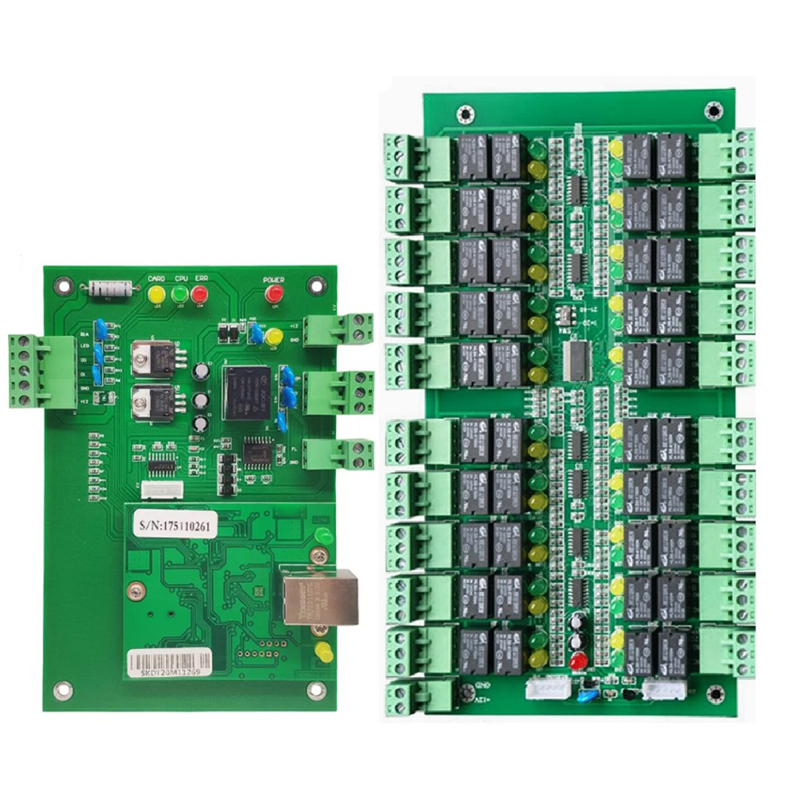

FM-C20

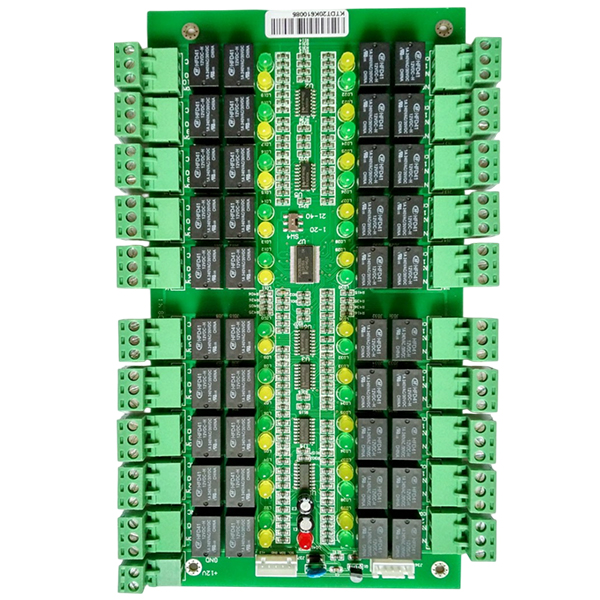

Its consist of main board + extended board which can have 20 floors and 40 floors elevator control.

This system offers complete management of floor movements of guests, residents and their visitors.

Support up to 20,000 Card Users and 100,000 Off-Line Transaction Events

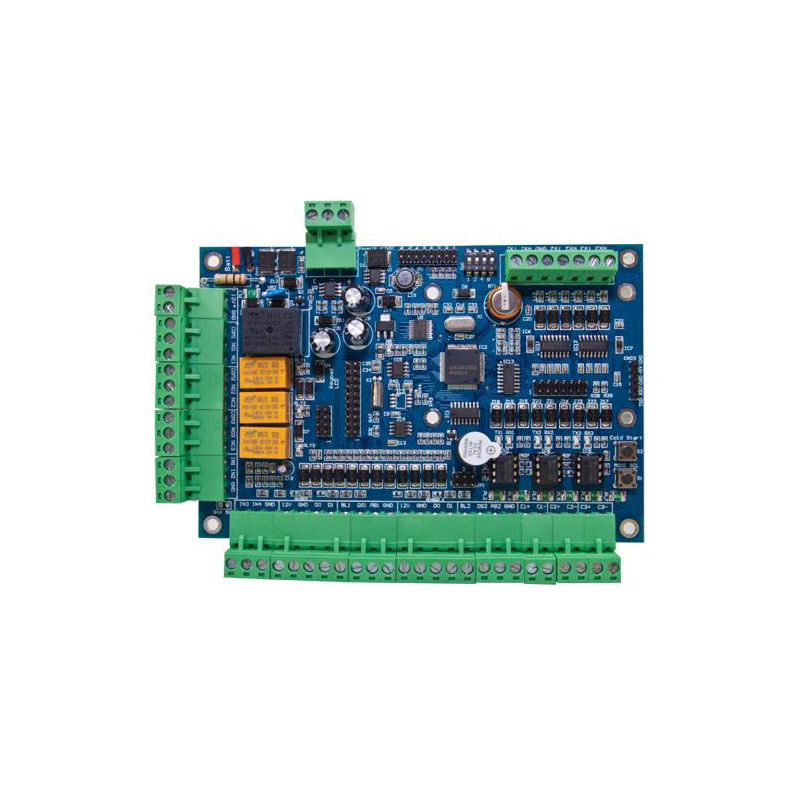

EL-2000L

Multi Door Access Control System

Communication Link:RS232, RS485 or TCP/IP

Support up to 10,000 Card Users and 30,000 Off-Line Transaction Events

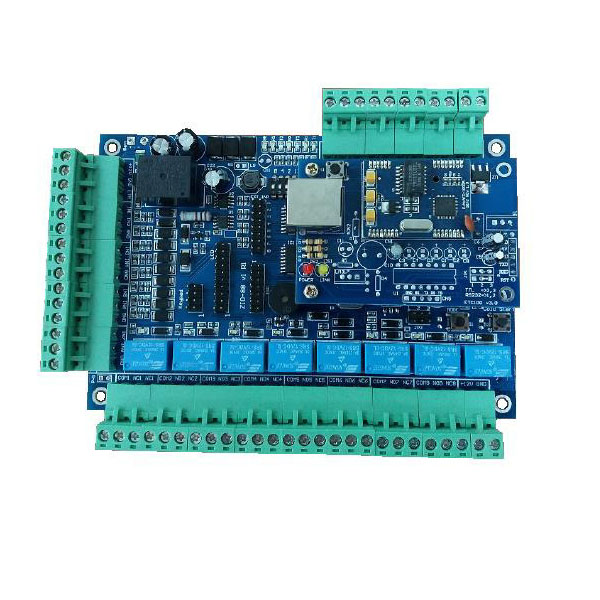

EL-8PL

8 Ports Lift Interface Module

Communication Link RS232, RS485 or TCP/IP

Remote Door Security ON/OFF Commands | 8 Units 3A Relay NC/NO/COM
