ANSI AND TIMED STRIKE LOCK SERIES
In the American market, Dorcas focuses on products tailored to ANSI standards, which feature wider frames and deeper latch throws compared to European hardware.
- Serie 46: A symmetrical and reversible series specifically designed for the American market. It features a 75mm body length, making it a primary choice for tubular type locks often found in U.S. residential and light commercial applications.
- Serie 47: Similar to the 46 series, this is built to combine with ANSI type locks. It features a latch with special length and depth to accommodate standard American hardware and includes a lateral add-on to prevent external manipulation.
- ANSI Compatibility: Products in this category are designed for frames with the standard 4-7/8″ pocket, which is common in hollow metal and aluminum frames across North America.
- Preload Opening (DST): Many American-focused models incorporate Dynamic Sense Technology (DST). This allows the strike to release even under a preload of up to 20kg, which is essential for doors that may have pressure from wind, warped frames, or emergency exiting crowds.
- IP65 Waterproofing: For outdoor gates or perimeter security, Dorcas offers waterproof versions suitable for the varied climates in the American market.

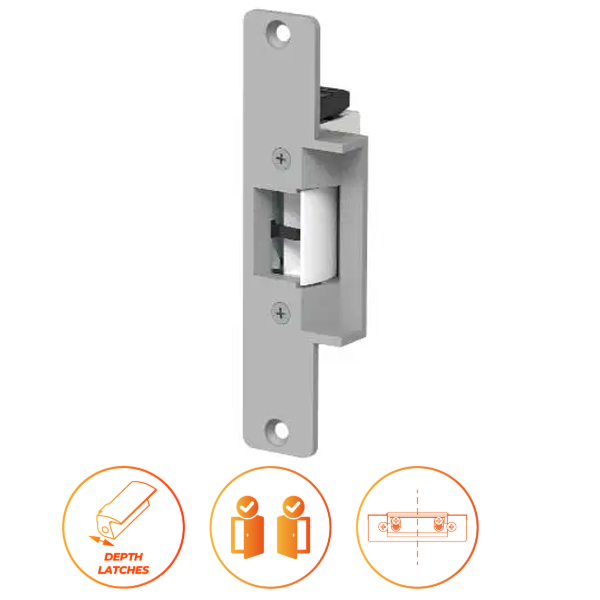

SERIE 46
The Dorcas Serie 46 is specifically engineered for the American market, designed to be compatible with ANSI-standard frames and tubular-type locks. It is a compact, robust solution primarily used for residential and light commercial security
ANSI Symmetrical Design: The body is built to a 75mm length, fitting standard American cutouts for tubular latches.
Universal Compatibility: It is designed to work with most tubular locks and standard American latch depths.High Strength: Despite its compact size, it offers a breaking resistance of 3,900 N (approx. 400 kg), providing high-level security against forced entry.

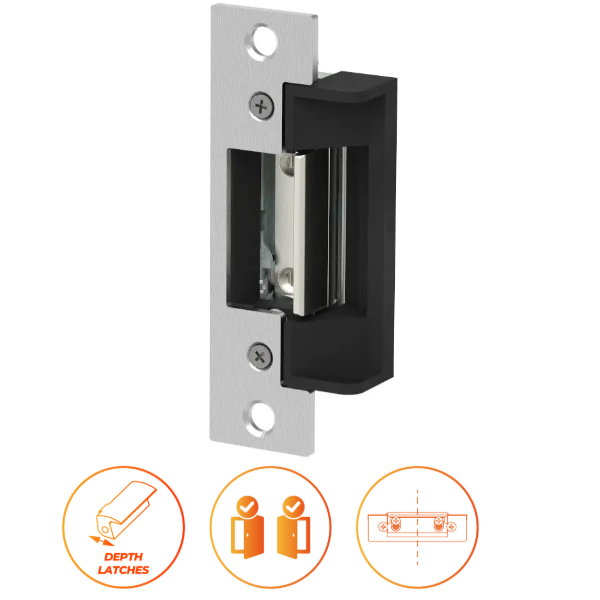

SERIE 47
The Dorcas Serie 47 is a specialized electric strike developed for the American market, specifically designed to combine with ANSI-type locks. While it shares similarities with the Serie 46, it features a more robust latch assembly and enhanced security measures for the deeper latch throws of standard US hardware.
ANSI Optimized Latch: Features a latch of special depth (13.70 mm) and length, making it a perfect fit for heavy-duty US locks and frames.
Flex Adjustment: Provides a built-in Flex (F) adjustment of +4 -0mm, allowing for precise alignment with the door latch even after the frame has settled

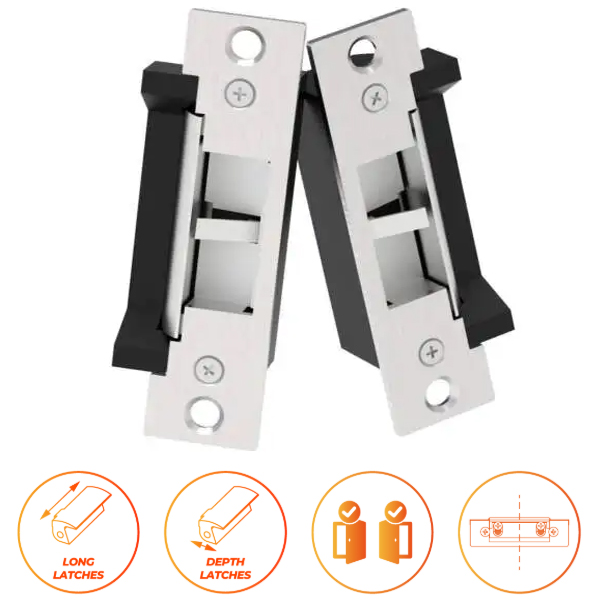

SERIE 57
The Dorcas Serie 57 is a symmetrical and reversible electric strike specifically designed for the American market. It is engineered to pair with ANSI-type locks, featuring a specialized latch length and depth to accommodate larger commercial door hardware common in America
Field-Selectable Operation: A standout feature is the ability to switch between Fail-Secure (power-to-open) and Fail-Safe (power-to-lock) by simply turning a screw on the unit.
Multivoltage Coil: It is highly versatile, operating on a wide range from 10V to 24V AC/DC, which simplifies inventory and onsite installation

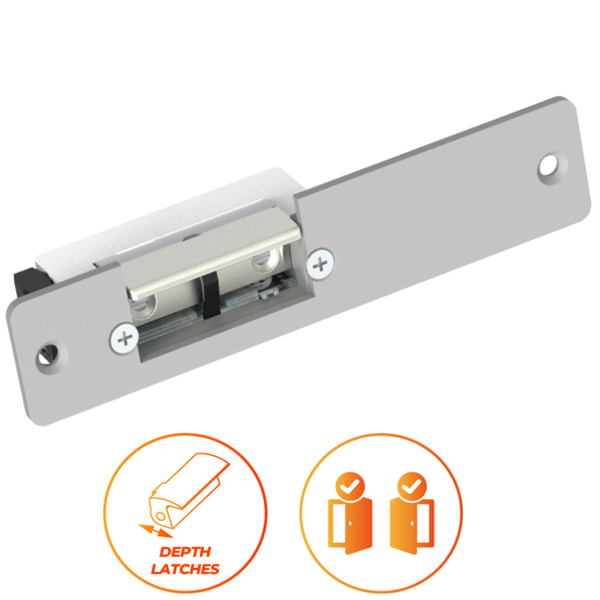

SERIE 84
The Dorcas Serie 84 is a symmetrical and reversible electric strike specifically designed for the American market. It is a flush-mounted solution optimized for ANSI-standard frames, offering a balance of security and installation flexibility for commercial and residential doors.
High Strength and Durability: Engineered for security with a breaking resistance of 3,450 N (approx. 350 kg) and tested for 200,000 electrical cycles.
Multivoltage Flexibility: It features a universal coil that operates between 10V and 24V AC/DC, allowing one unit to work across various power systems.

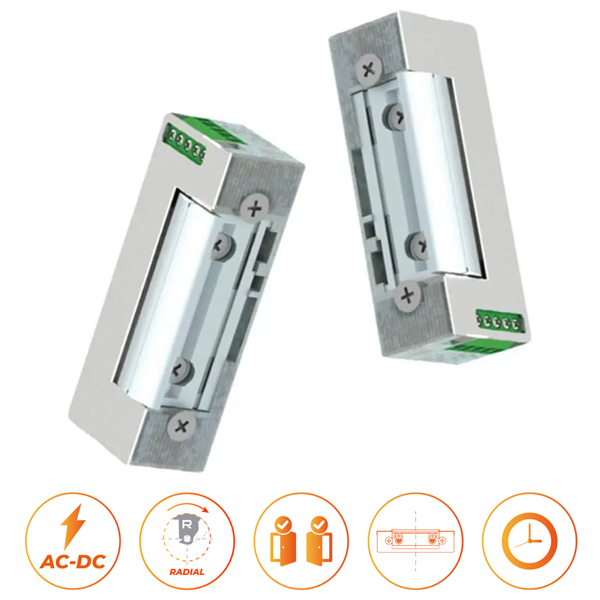

Serie 56
The Dorcas Serie 56 is the “all-in-one” solution for the American market. Its standout feature is its dual field-adjustability, allowing it to adapt to almost any onsite requirement without needing a different model.
Field-Selectable Operation: You can switch between Fail-Secure (power-to-open) and Fail-Safe (power-to-lock) by simply adjusting a screw on the unit.
Dual Voltage: It typically features a universal coil that can handle both 12V and 24V DC, making it compatible with most American access control power supplies.
High Breaking Resistance: Engineered for heavy-duty security with a resistance of 3,900 N (approx. 400 kg).

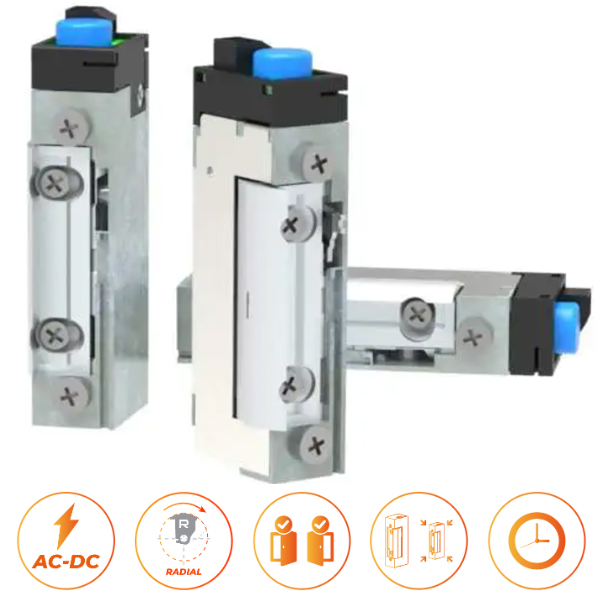

AT99 SERIES
The Dorcas Serie AT99 is a specialized version of the ultra-compact 99 Series, characterized by its Automatic Timed (AT) function. This feature is designed to enhance security by automatically relocking the door after a set period, even if the door was never opened.
Timed Automatic Function: Unlike standard strikes, the AT99 activates its “automatic” (hold-open) state for a specific duration based on the power pulse. It then self-locks to prevent the door from remaining unsecured if someone triggers it but doesn’t enter
Multivoltage Coil: It features a universal coil that operates across a wide range of 10V to 24V AC/DC, allowing it to work with almost any existing power supply.

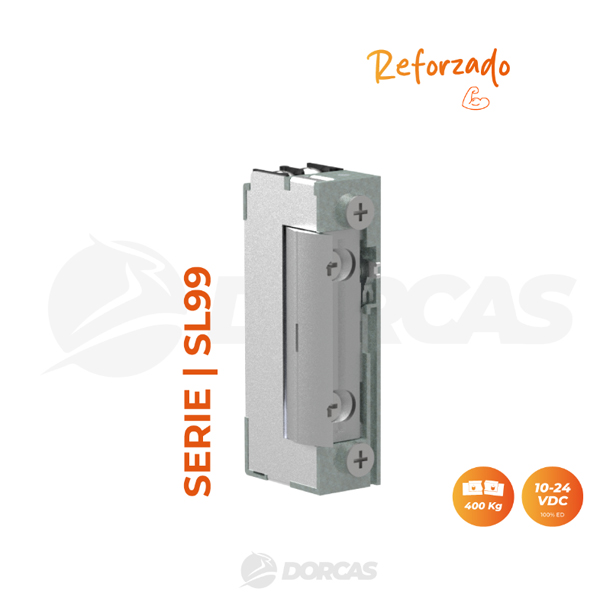

SL99 SERIES
The Dorcas Serie SL99 is the high-strength version of the compact 99 Series, specifically engineered for higher-security needs without losing the slim profile benefits. Its defining feature is its increased breaking resistance, which is approximately 400 kg (3,850 N), compared to the standard 330–350 kg of the base model.
High Breaking Resistance: With a load resistance of 3,850 N, it is built for more demanding access points that require extra physical security.
Multivoltage Coil: It is highly versatile, operating from 10V to 24V AC/DC, which simplifies inventory and onsite installation. Radial Latch with Flex Adjustment minimizing the need for deep frame cutouts.

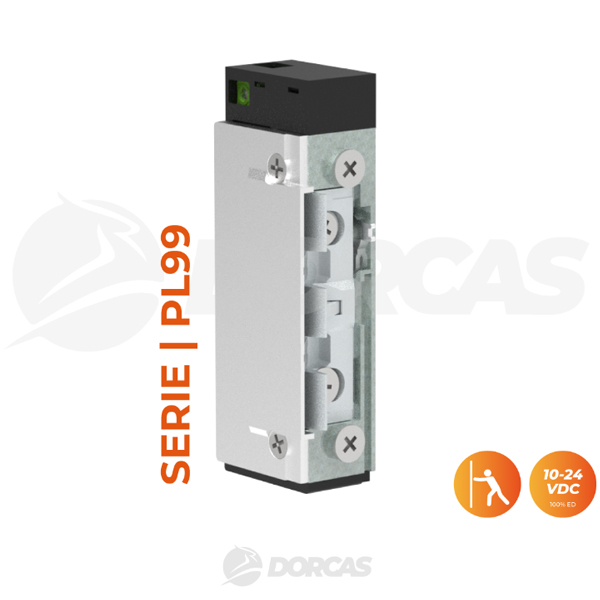

PL99 SERIES
The Dorcas Serie PL99 is the high-performance preload specialist within the ultra-compact 99 Series range. Its primary engineering goal is to ensure the door opens reliably even when there is physical pressure or “preload” pushing against the latch.
High Preload Opening: The standout feature is its ability to open under a preload of up to 40 kg (approx. 400N) when powered at 12V DC. This solves the common issue where warped doors, tight seals, or air pressure prevent a standard strike from releasing.
Ultra-Compact Body: It maintains the 99 Series’ signature slim profile with a width of just 16mm, to fit into extremely narrow aluminum or PVC frames without extensive mortising.
These strikes typically offer the standard Dorcas functional modules:
- Fail-Secure (N): Stays locked without power—ideal for protecting goods in retail or industrial settings.
- Fail-Safe (500): Stays open without power—mandatory for most evacuation and life-safety routes.
- Monitoring (305): Incorporates a micro-sensor to track whether the door is open or closed, facilitating integration with US-based access control and alarm systems.
