Push Buttons & Alarm Sensors
Request-to-exit (REX / Push Button / Break Glass / Push bar / Panic Button / Remote control) devices for allowing egress. When a REX button is pushed, or the motion detector detects motion at the door, the door alarm is temporarily ignored while the door is opened. Exiting a door without having to electrically unlock the door is called mechanical free egress. In cases where the lock must be electrically unlocked on exit, the request-to-exit device also unlocks the door.
Many options such as exit buttons, hands-free infrared which is touch less push button, or touch sensitive devices make it an ideal choice for releasing magnetic locks or door strikes. A magnetic door switch, door contact or reed switch for monitoring door position. Magnetic contact is a door and window sensor that functions using an internal reed switch in conjunction with a magnet. This is the most common way for a door and window sensor to operate. A Magnetic door sensor is an alarm sensor that is triggered by movement. It consists of two parts encased in a plastic shell – a magnet and a sensor/switch. A door contact sensor is a peripheral security sensor that lets an alarm system know whether a door is opened or closed. When a door is opened, the sensor will activate and let the system know about the situation.
Elock-KS1
2 Position Removable Key, Single Pole
Flush Stainless Steel Face Plate
NC/ NO Connection
Elock-KS2
2 Position Removable Key, Single Pole
Narrow Stainless Steel Face Plate
NC / NO Connection
Elock-KS3L
Door Release Key Switch with LED Indication
Stainless Steel Panel with Elegant Style
Contact : COM/NC/NO/Tamp/-LED+
Elock-EB1
Narrow Style Stainless Steel Exit Button
Button Housing: Zinc Alloy Die-Casted, Chrome Plated
CE Approved | NO / COM
Elock-EB1W
Weatherproof Stainless Steel Exit Button
Button Housing: Aluminium Alloy, Stainless Steel
IP 67, Weatherproof | CE Approved.
Elock-EB2
Illuminated Indicator Switch
Single Pole, Double Throw, Double Break Switching Mechanism
Narrow Type Exterior Design

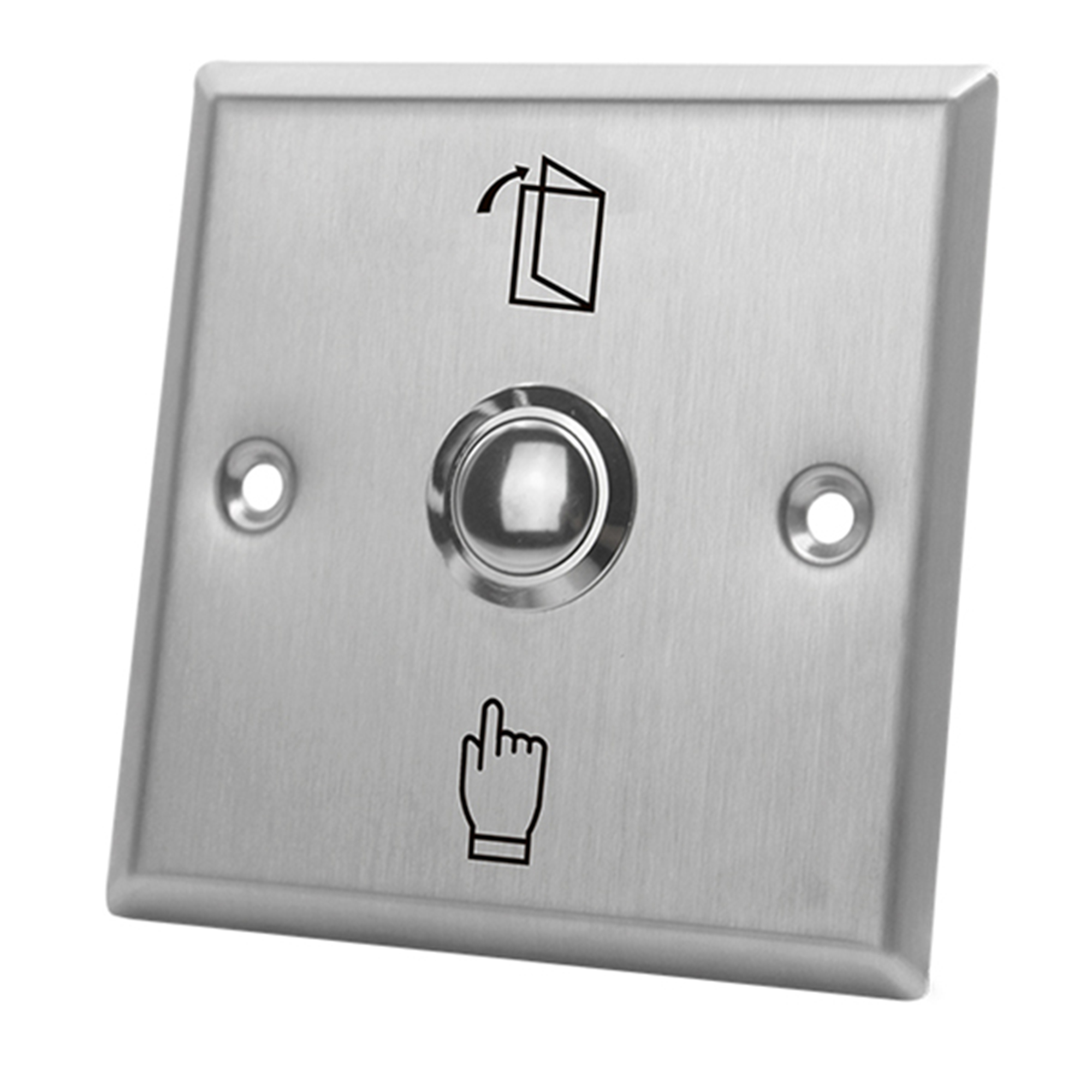

Elock-EB3
Flush stainless steel face plate
Zinc Alloy Die-Casted, Chrome Plated Button Housing
CE Approved | NO / COM
Elock-EB3W
Flush Stainless Steel Face Plate
Aluminium Alloy, Stainless Steel Button Housing
IP67, Weatherproof | CE Approved
Elock-S886D2S
Stainless Steel Panel, Steel Button
Panel Material: 304 Stainless Steel
Output Contact: NO/NC/COM/Light

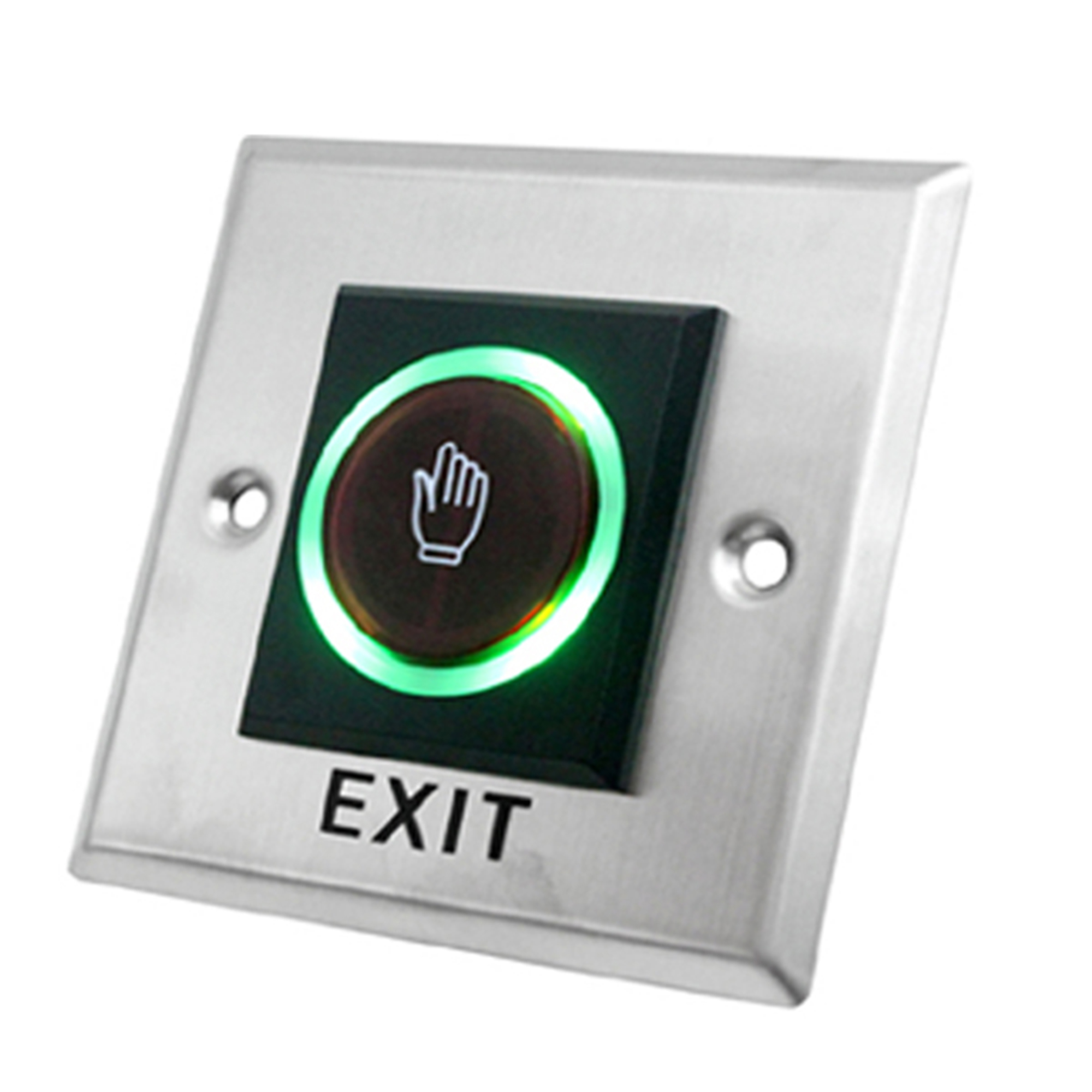

Elock-ABK806A
No Touch Exit Sensor
Stainless Steel Panel with Elegant Style
Output Contact: +\-\NO\NC\COM
Elock-ABK806B
No Touch Exit Sensor
Stainless Steel Panel with Elegant Style
Output Contact: +\-\NO\NC\COM
EL-PB252
Push Button Switch
Suitable for most Security system
CE Approved | NO to NC Connections
EL-EXAN-S
Explosion Proof Break Glass
Explosion-Proof Mark: ExdⅡCT6 | Outlet : G20
Protection: IP65 or Unprotected | Operating Voltage: DC24V
EL-MCP110
Re-Settable Design Call Point
Obvious Indicators Around the Edges of the Unit
Operating Voltage: 12V/24VDC
EL-EB4
Emergency Door Release Designed with Replaceable Glass
CE Approved
Colors: Red, Blue and Green
EM-201
Re-Settable Emergency Door Release
Mounting Type: Wall Mounting
Colors: Red and Blue
EM-201GDS
Re-Settable Emergency Door Release with Symbol
Mounting Type: Wall Mounting
Unique ‘Plug & Play’ installation
EL-EB5
Door Release Emergency Push Button
Suitable for Most Security System
CE Approved | Contact Type – NC & NO
EL-EB5A
Door Release Exit Push Button
Suitable for Most Security System
CE Approved | Contact Type – NC & NO
EL-SP-WSS
Smart Protector with Back Cover and Weather Gasket
Output: Sound and Flash Alarm
Color: Green and Red shell
EL-SP-WS
Protector with Back Cover and Weather Gasket
High Transparent Poly-Carbonate Material Protection Cover
Color: Green and Red shell
EL-PB1
Single Push Button Switch
Suitable for most security system
CE Approved | Contact Type – NC & NO
EL-PB2
Double Push Button Switch
Suitable for most security system
CE Approved | Contact Type – NC & NO
EL-EB8A
Stainless Steel Exit Button with Arabic Text
Suitable for Hallow Door
Contact: NO/NC/COM
EL-ST886A
Touch to Exit Button
Material: 304 stainless steel with drawing panel processing
Contact: NO/NC/COM
EL-ST850
Touch Exit Button (Narrow)
Material: 304 stainless steel with drawing panel processing
Contact: NO/NC/COM
EL-S50LC
Multi Color Touch Exit Button
Material: 304 stainless steel with drawing panel processing
Contact: NO/NC/COM
EL-S86LC
Multi Color Touch Exit Button
Material: 304 stainless steel with drawing panel processing
Contact: NO/NC/COM
EL-S840M
Stainless Steel Mushroom Exit Button (Narrow)
CE Approved | NO/COM
Colors: Green and Red
EL-A886M4
Weatherproof Mushroom Exit Button
Aluminium Alloy Panel, Metal Button
IP65 | Colors: Green and Red | NO/NC/COM
EL-850M4
Weatherproof Mushroom Exit Button
Aluminium Alloy | Metal Button
IP65 | Colors: Green and Red | NO/NC/COM
EL-A870M4
Weatherproof Mushroom Exit Button
Aluminium Alloy | Metal Button
IP65 | Colors: Green and Red | NO/NC/COM
EL-A840M4
Weatherproof Mushroom Exit Button
Aluminium Alloy | Metal Button
IP65 | Colors: Green and Red | NO/NC/COM
EL-A8401M4
Weatherproof Mushroom Exit Button
Aluminium Alloy | Metal Button
IP65 | Colors: Green and Red | NO/NC/COM
EL-A886M5
Weatherproof Mushroom Exit Button
Aluminium Alloy | Plastic Button
IP65 | Colors: Green and Red | NO/NC/COM
EL-S886M5
Weatherproof Mushroom Exit Button
Stainless Steel Panel | Plastic Button
IP65 | Colors: Green and Red | NO/NC/COM
EL-A870M5
Weatherproof Mushroom Exit Button
Aluminium Alloy Panel | Plastic Button
IP65 | Colors: Green and Red | NO/NC/COM
EL-S870M5
Weatherproof Mushroom Exit Button
Stainless Steel Panel | Plastic Button
IP65 | Colors: Green and Red | NO/NC/COM
EL-S86-H
Exit Button with Hand Logo
Stainless Steel Plate | Steel Button
CE Approved | NO/COM
EL-PB86C
Panic Button with Key
Case Material : ABS | Switch Mode : Reset By Key
Operating Voltage : 12VDC | NO/NC/COM
EL-DPB
Dual Panic Button | 2 Finger operation
Tamper switch protection | Stainless steel cover
BS EN50131-2-6 Approved
EL-PM2D
Weatherproof Surface Mount Plastic Exit Button
Mechanical Life: 100,000 tested
IP55 | NO/NC/COM
EL-BAZ53
Explosion proof Push Button
Material: Aluminium alloy | Screws: Stainless steel
IP55 | Exd Mark: Exed II BT 6
EL-S886-M9
Latching Emergency Exit Button
304 Stainless Steel Plate | Mechanical life: 3000000 times
IP Rating: IP65
EL-S870-M9
Latching Emergency Exit Button
304 Stainless Steel Plate | Mechanical life: 3000000 times
IP Rating: IP65
EL-S886R
Emergency Exit Button
Stainless Steel Panel | Stainless Steel switch
Mechanical Life: 500,000 tested | NO/COM
EL-ST886-D
Weatherproof Disabled Exit Button | Disabled Sign
Stainless Steel Panel | Metal Button
IP 65 | NO/NC/COM
EL-ST886-P
Weatherproof Exit Button | PUSH TO EXIT Word
Stainless Steel Panel | Metal Button
IP 65 | NO/NC/COM
EL-ST870-D
Weatherproof Disabled Exit Button | Disabled Sign
Stainless Steel Panel | Metal Button
IP 65 | NO/NC/COM
EL-ST870-P
Weatherproof Exit Button | PUSH TO EXIT Word
Stainless Steel Panel | Metal Button
IP 65 | NO/NC/COM
SD-1
Photoelectric Smoke Detector For Security System.
Dual LEDs for 360° visibility | 4 wire models
IP rating: IP-42 | NO/NC | 12VDC
EL-EPIR-A10
Passive Infrared Detector with Pet Immunity
Current consumption: Standby ~9mA; Alarm~ 38mA (Relay) 10-12mA (Solid -state)
Detectable speed: 0.3 ~ 1m/sec
EL-PB60S
Photoelectric Beam Detector -60Meter
Response Time: 50 – 700msec | Material: PO Resin
IP Rating: IP44 | Voltage: 10.8V to 18V DC (Polarity)
EL-IS-100
Internal Siren (12V DC, 15W)
Two Tone: Steady and Warble | Material : ABS
ISO 9000 certified | CE Approved
EL-ES-100
External Siren Set
Including : Strobe Light, Siren Horn, Siren Box, Tamper Switch
EL-EM103R
Alarm Strobe Siren
Material: ABS Housing with Acrylic Lens
High Sound Output and Light Source
EL-305
Magnetic Outdoor Siren Box
Material: ABS Housing with UV Resistance
IP Rating: IP45 | Flash Rate: 70 to 90 Times/M
EL-SB-100
Siren Box with Tamper Switch
Dimension: 225 x 195 x 140 mm
IP rating: IP-42 | NO/NC | 12VDC
EL-SH-100
Siren Horn is Capable of Generating Loud and Sharp Sirens
Cabinet: ABS Plastic Resin
Stand: Iron 1.5mm Thickness
EL-TS-100
Tamper Switch
EL-JB-10
Control Box
