Magnetic Locks & Accessories
An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate. There are two main types of electric locking devices. Locking devices can be either “fail safe” or “fail secure”. A fail-secure locking device remains locked when power is lost. Fail-safe locking devices are unlocked when de-energized. Direct pull electromagnetic locks are inherently fail-safe. Typically the electromagnet portion of the lock is attached to the door frame and a mating armature plate is attached to the door with the help of its accessories like LZ brackets, L brackets and U brackets.
Typical single door electromagnetic locks are offered in 300lbs, 600lbs, 2x600lbs, 1200lbs and 2x1200lbs dynamic holding force capacities. A “fail safe” magnetic lock requires power to remain locked and typically is not suitable for high security applications because it is possible to disable the lock by disrupting the power supply. Despite this, by adding a magnetic bond sensor to the lock and by using a power supply that includes a battery backup capability. Electromagnetic locks are well suited for use on emergency exit doors that have fire safety applications because they have no moving parts and are therefore less likely to fail than other types of electric locks.

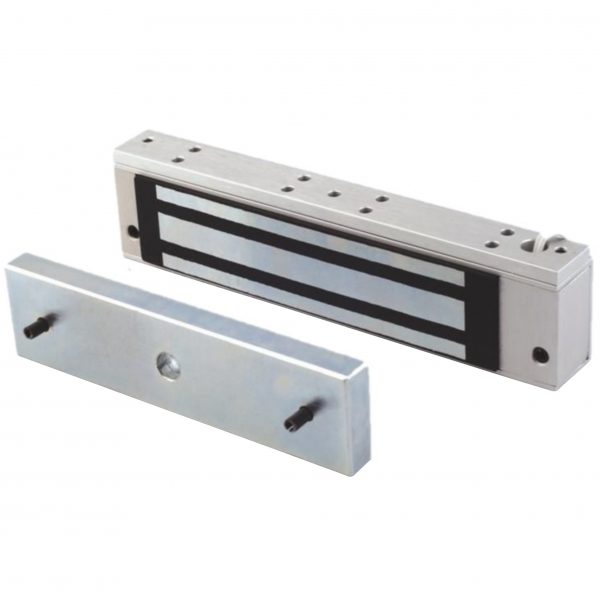

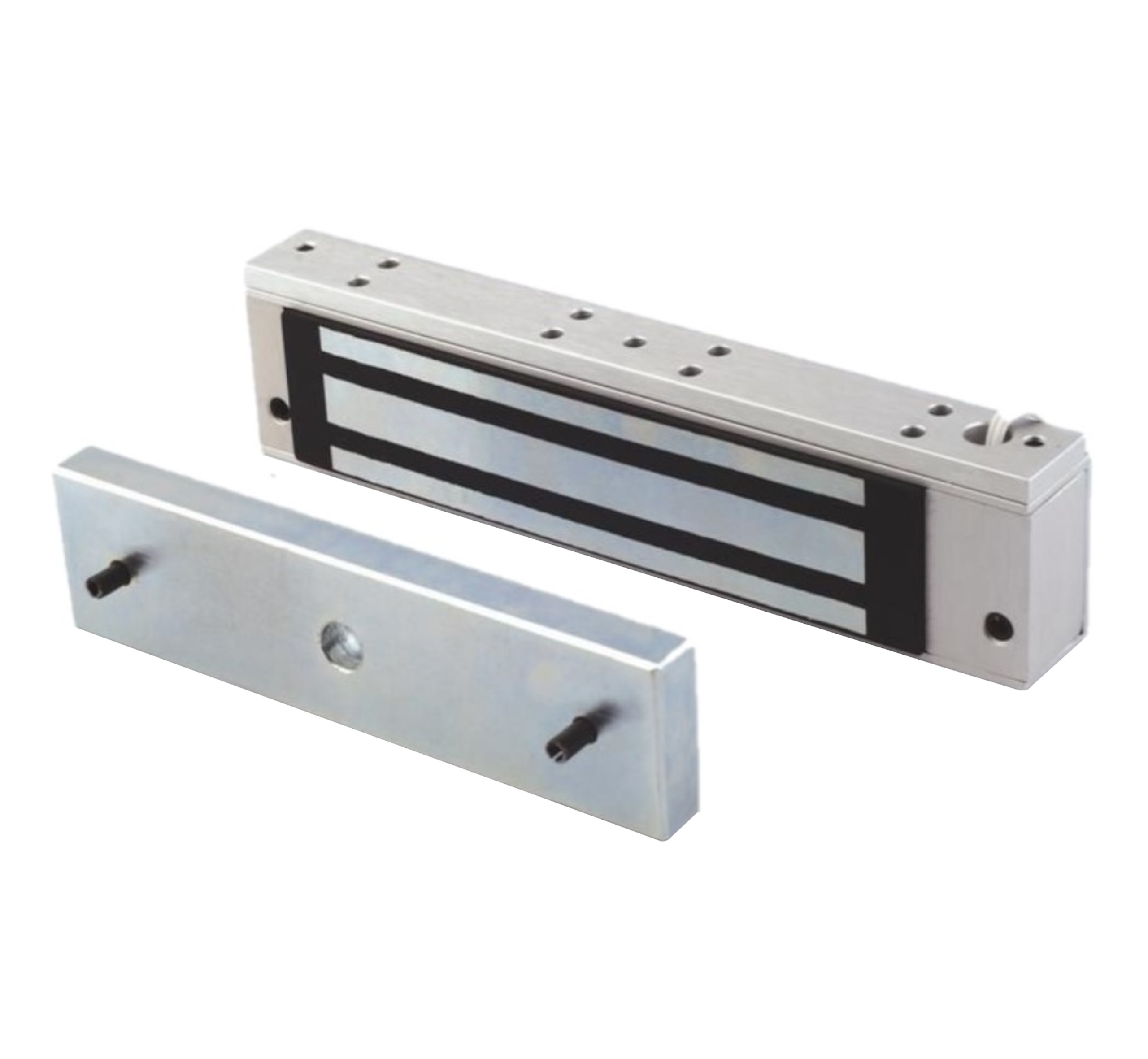

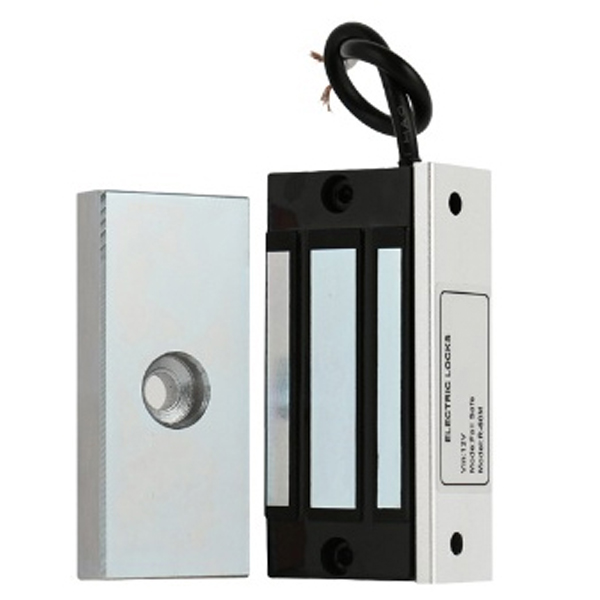

Elock-300
Holding Force : 300lbs
Lock Type: Fail-safe type
Operating Voltage: 12V/24VDC
Current Drawn: 330mA / 165mA

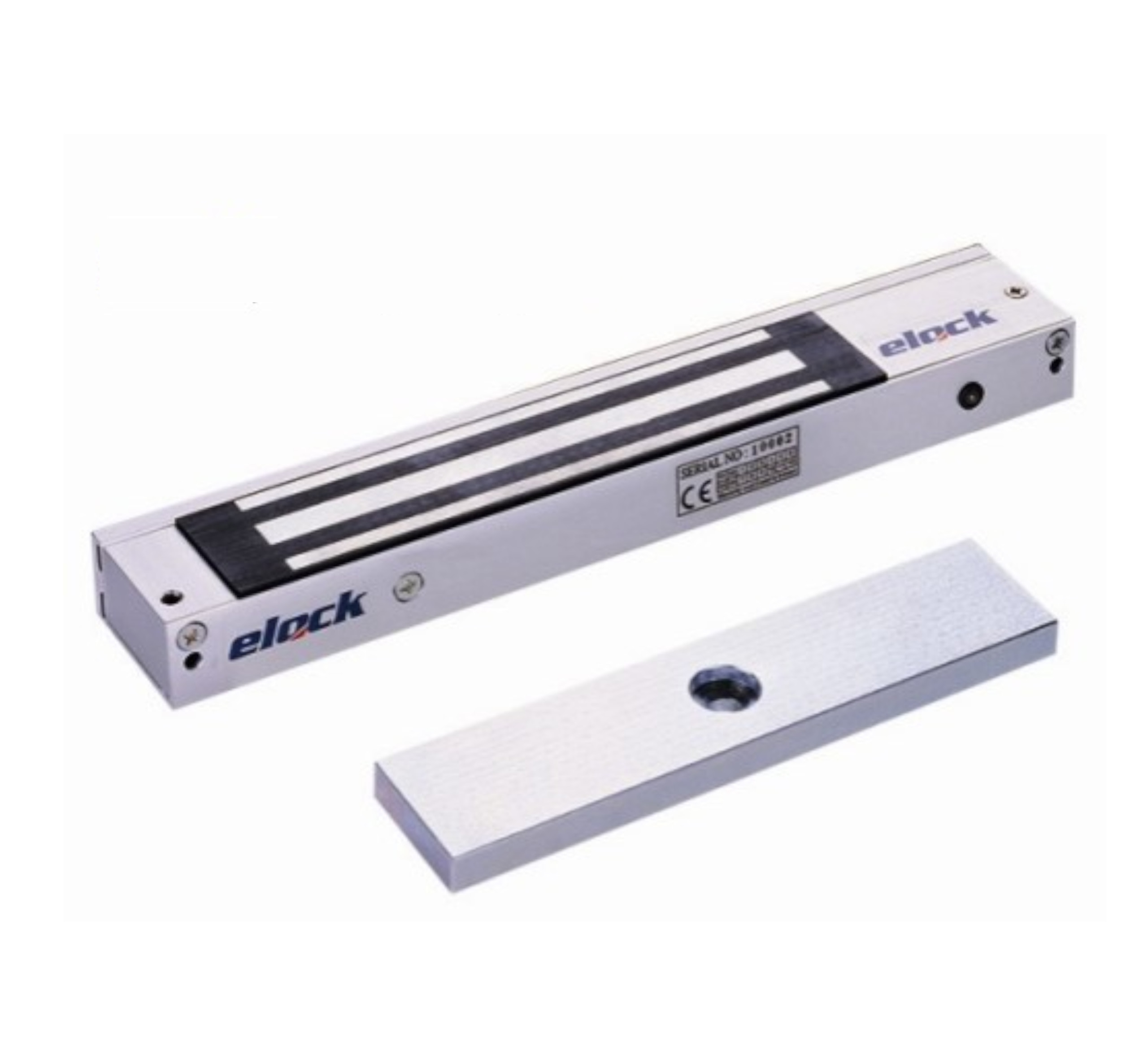

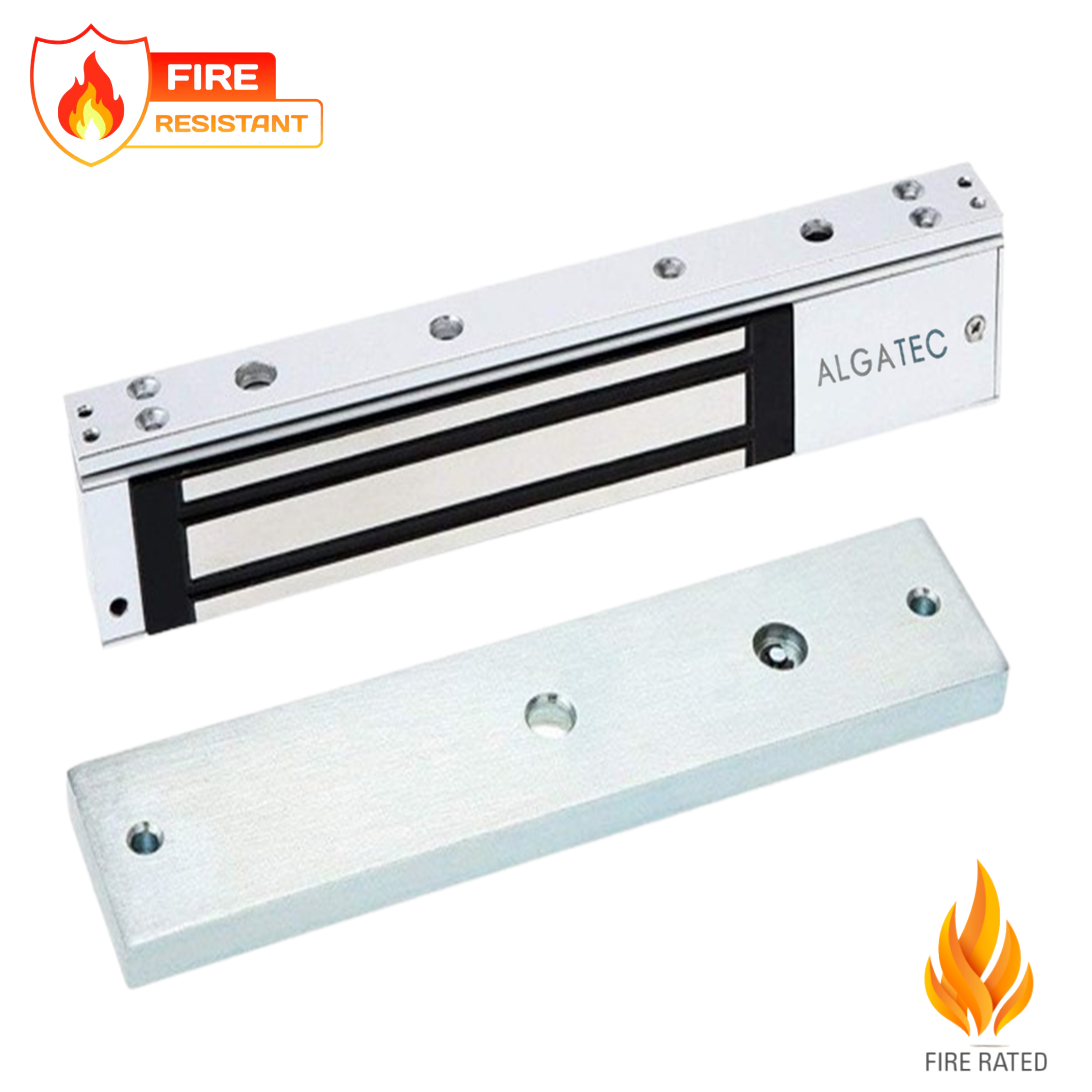

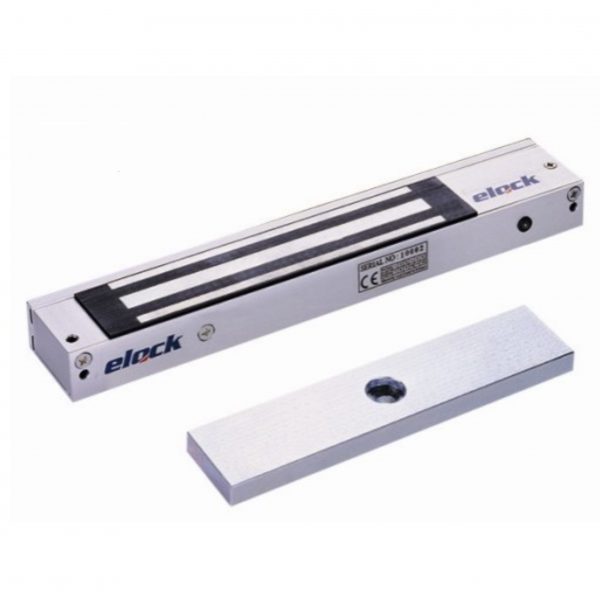

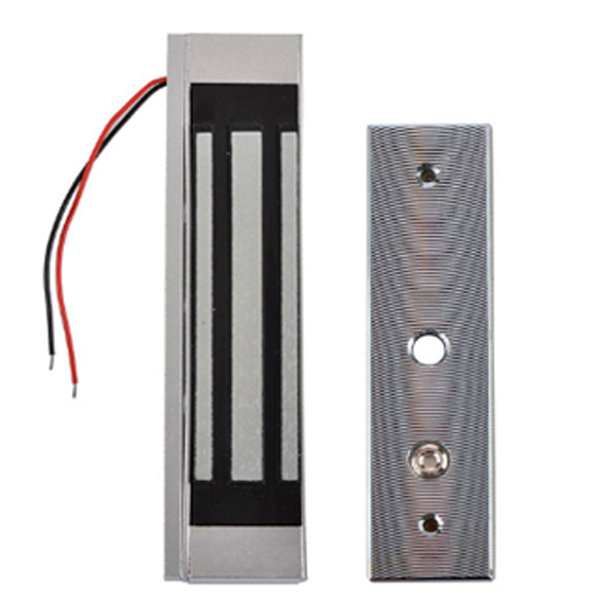

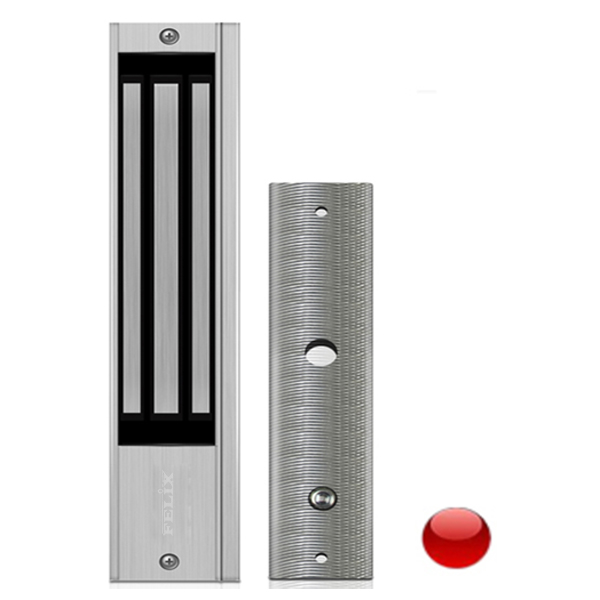

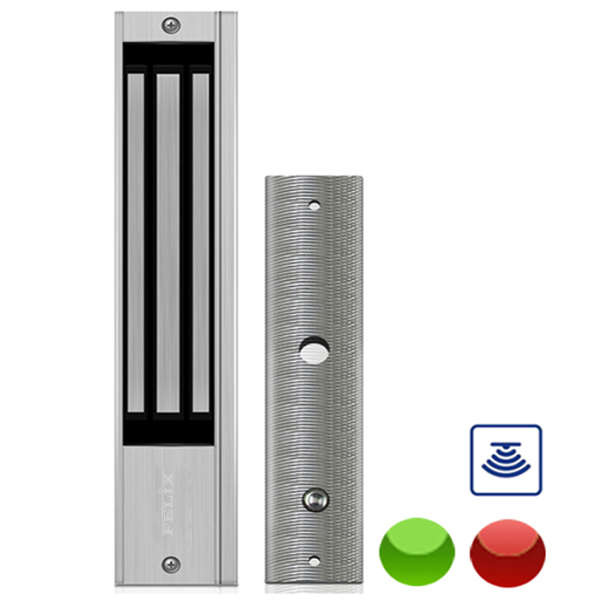

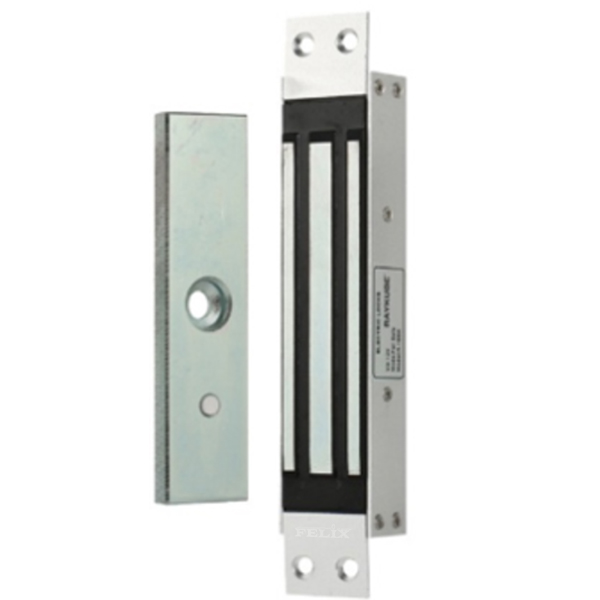

Elock- 600 / 600L
Unmonitored / Monitored
Holding Force : 600lbs
Built-in Bond Sensor | Fail-safe type
Operating Voltage: 12V/24VDC
MOV Surge Protection

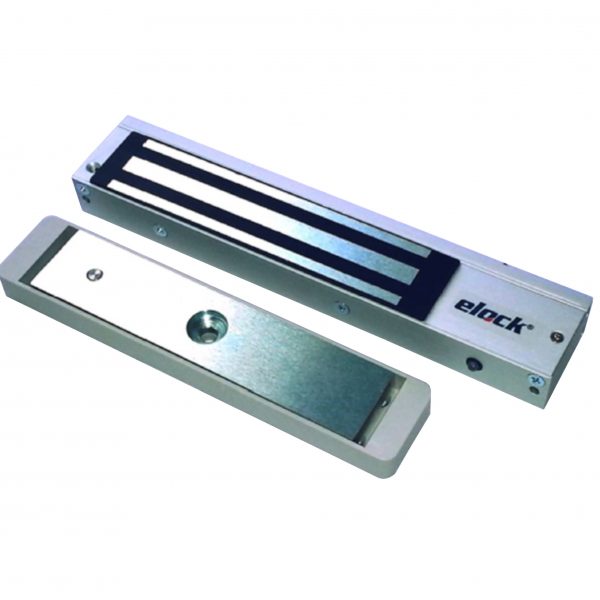

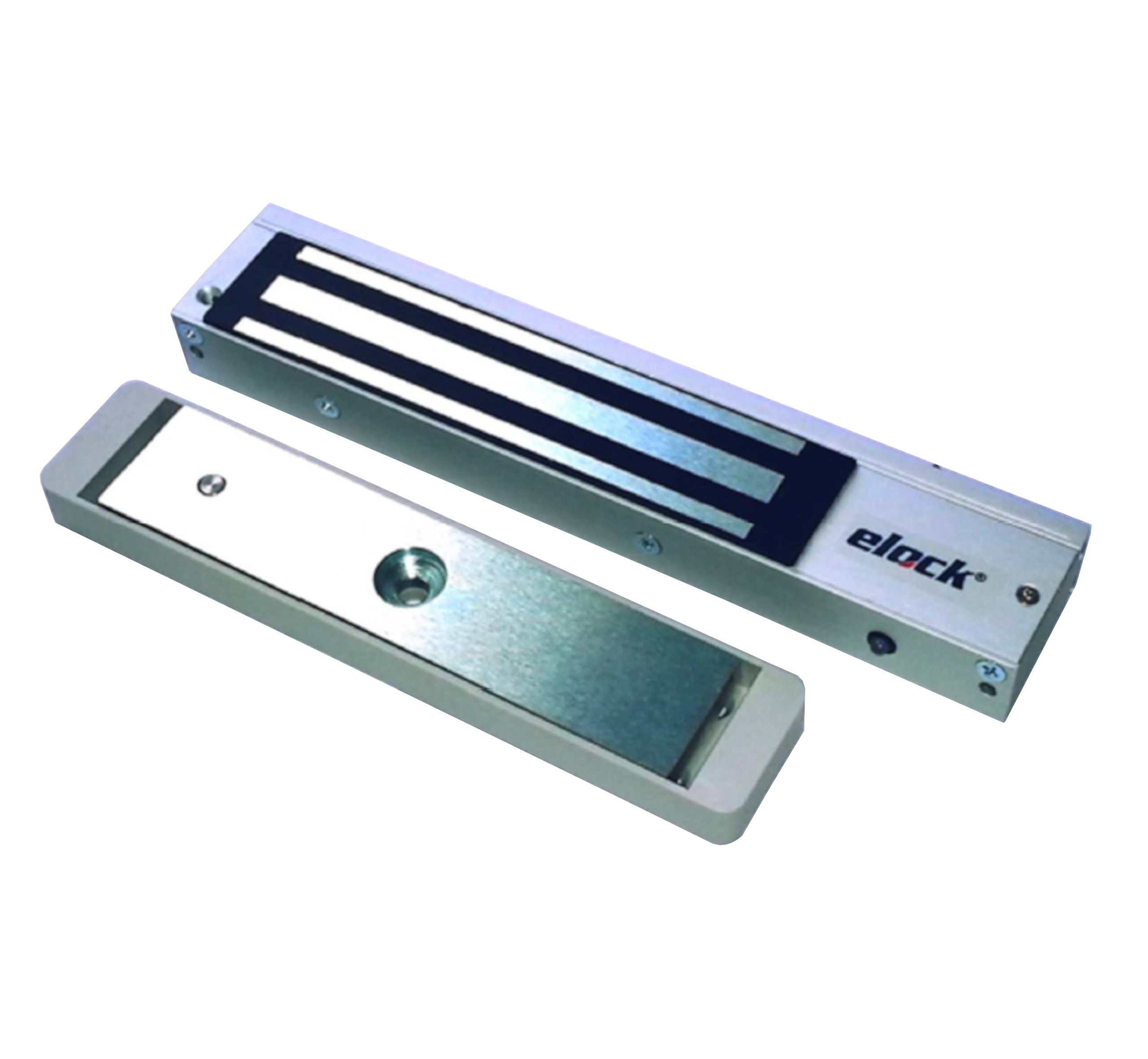

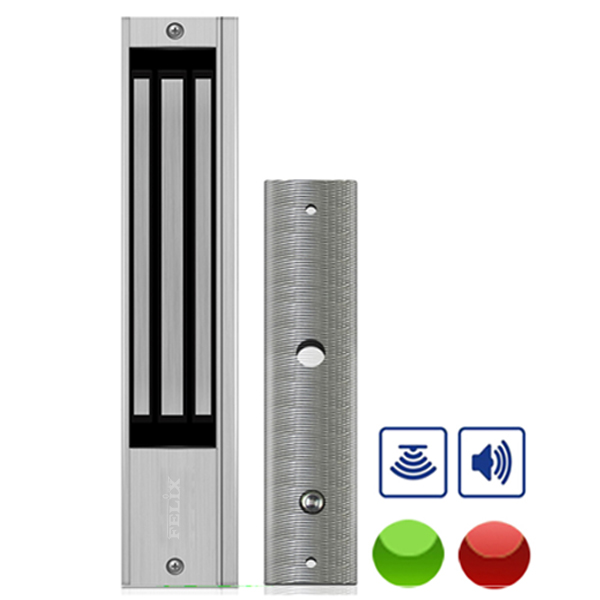

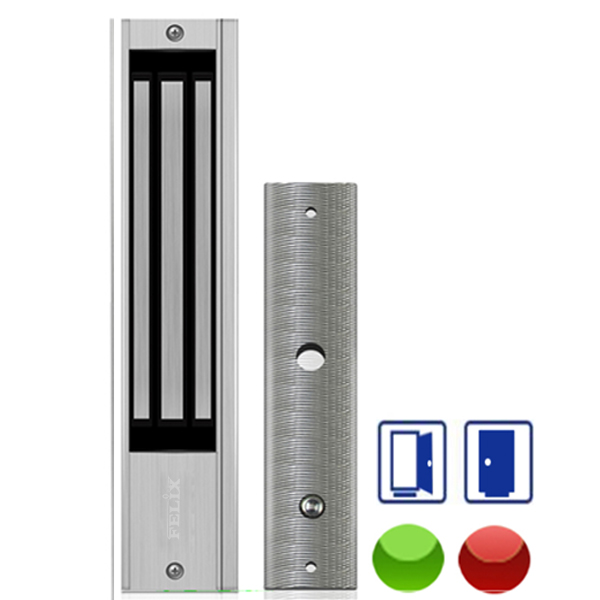

Elock 600LD
Holding Force : 600lbs with LED Monitored
Built-in Door Status Sensor | Fail-safe type
Operating Voltage: 12V/24VDC

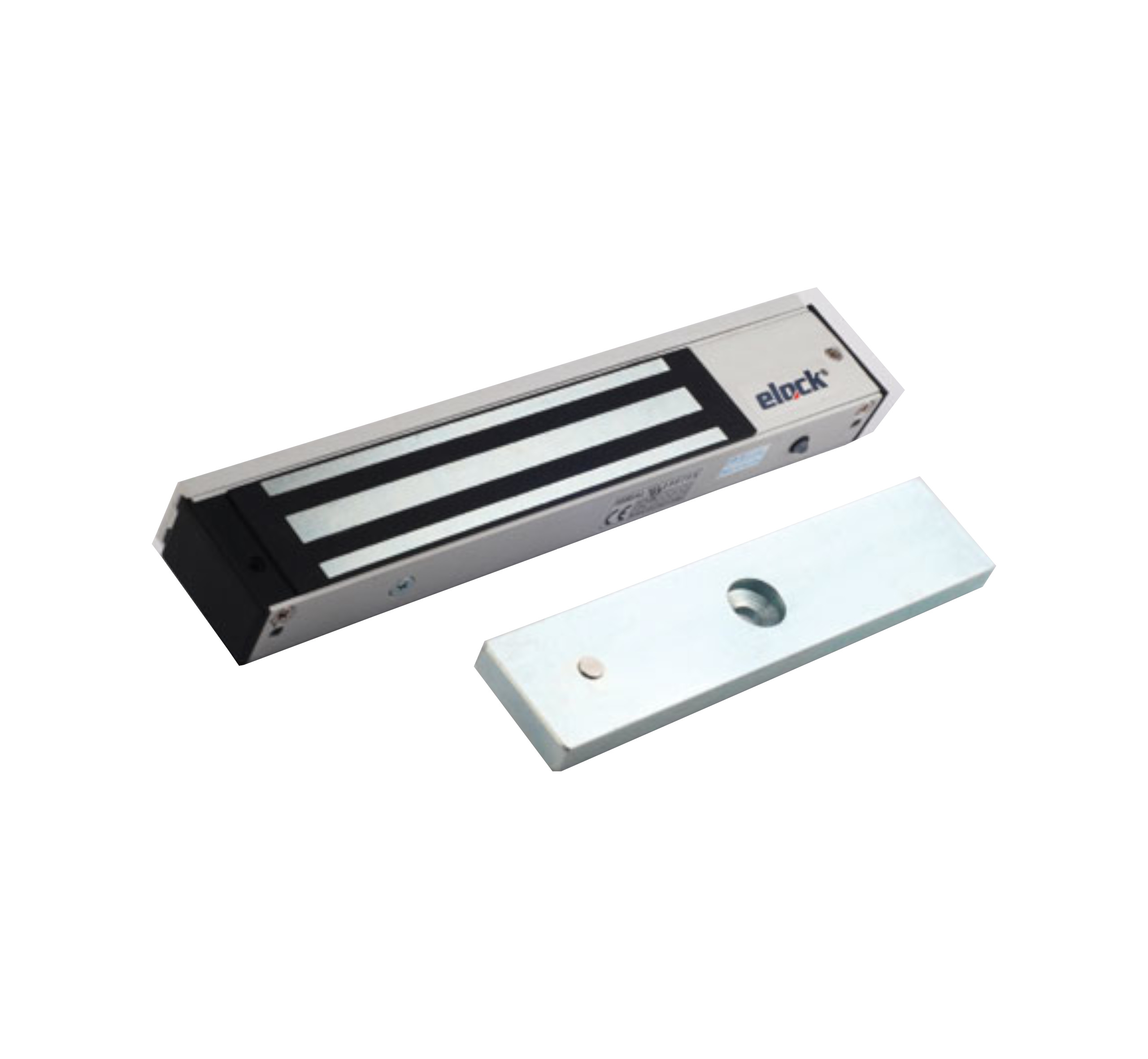

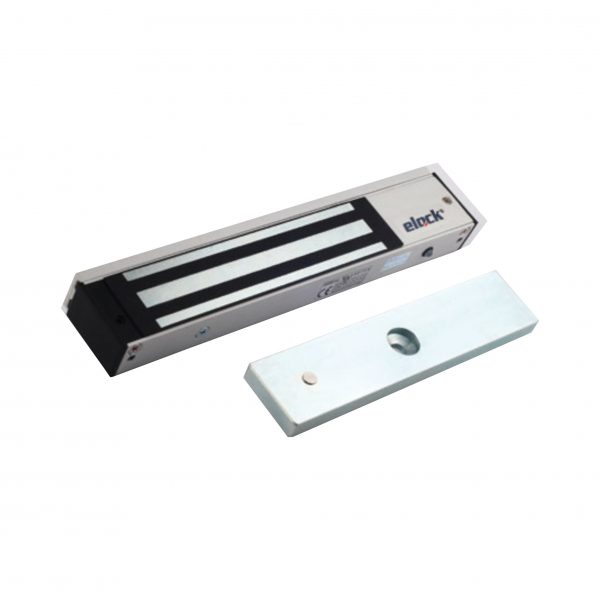

Elock- 600A / 600AL
Unmonitored / Monitored
Holding Force : 600lbs
Built-in Bond Sensor | Fail-safe type
Side ABS Bracket | 12V/24VDC
Current Drawn: 500mA / 250mA

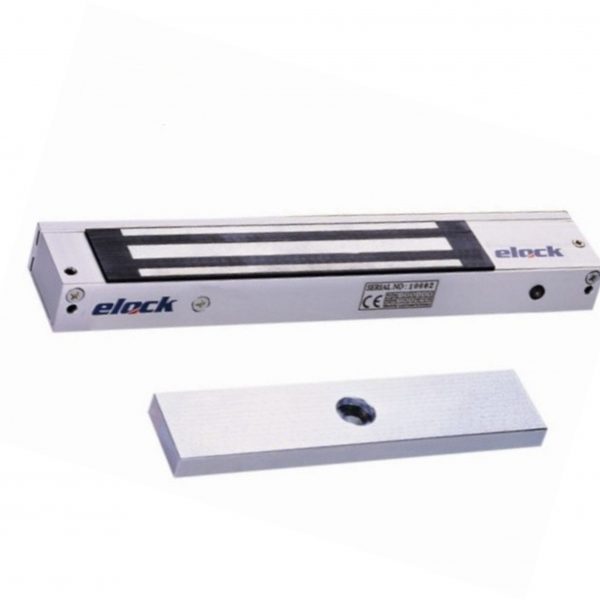

Elock-600(UL) / 600L(UL)
Unmonitored / Monitored
Holding Force: 600lbs | UL Listed
Built-in Bond Sensor | Fail-safe type
Operating Voltage: 12V/24VDC
Current Draw: 500mA @12V DC /250mA @24V DC

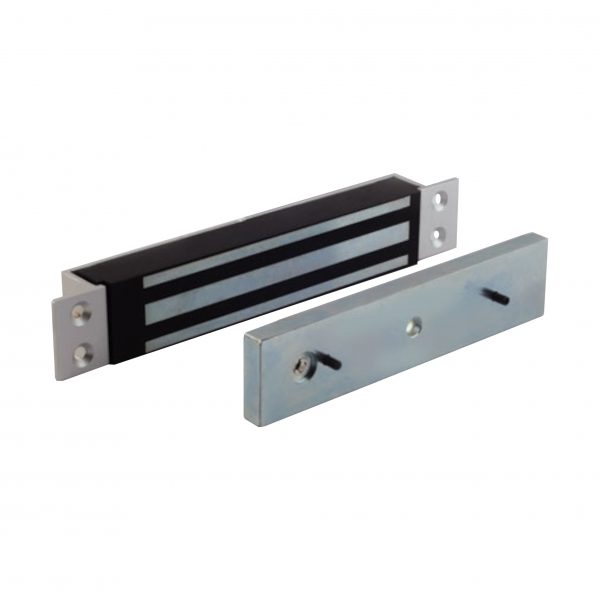

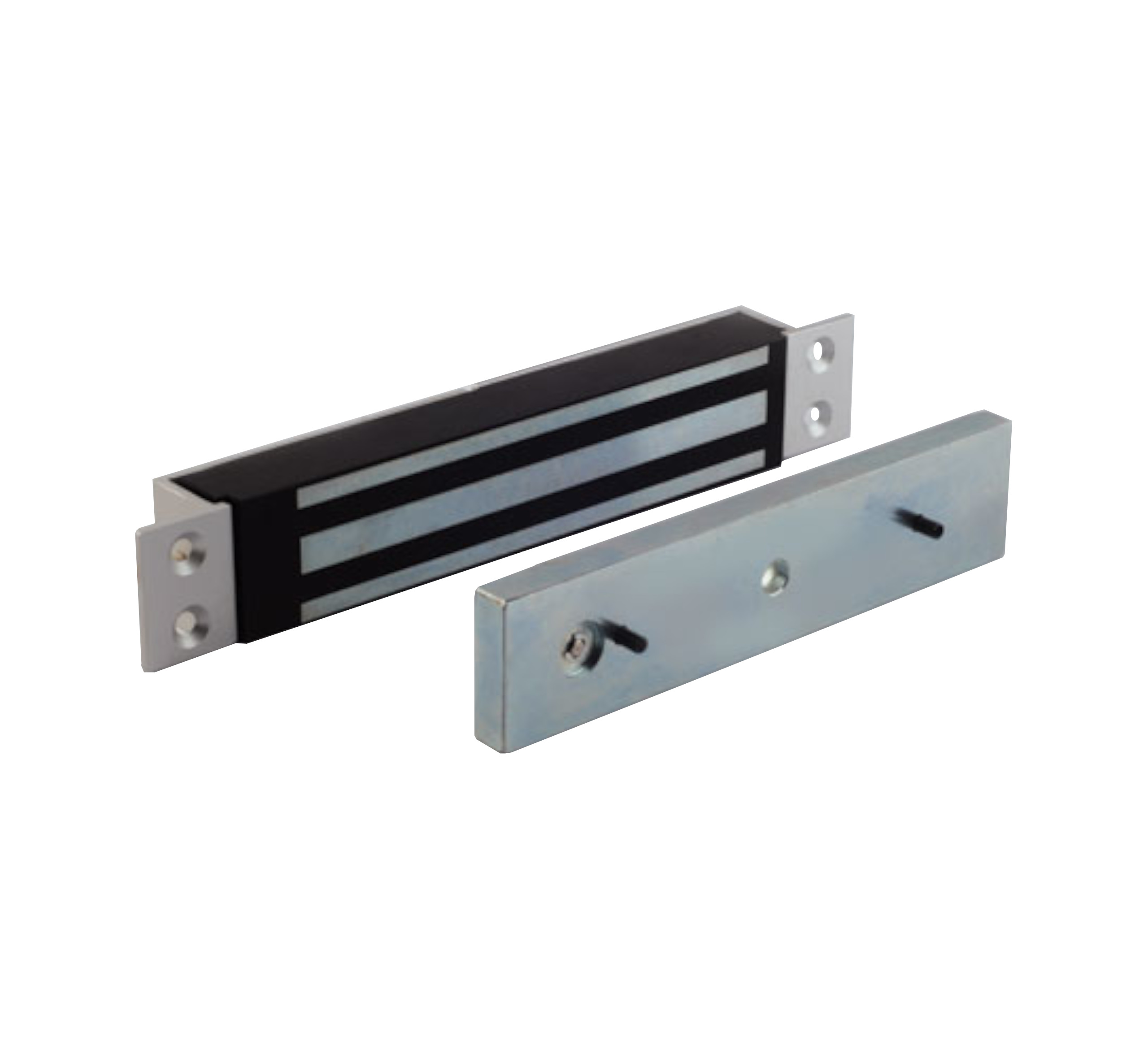

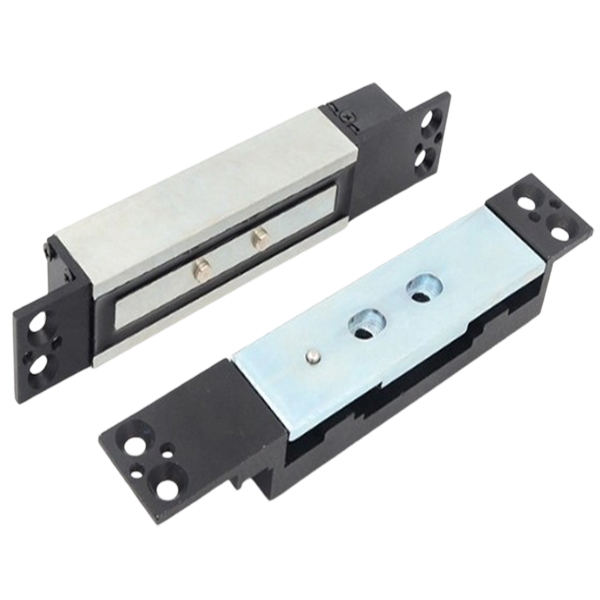

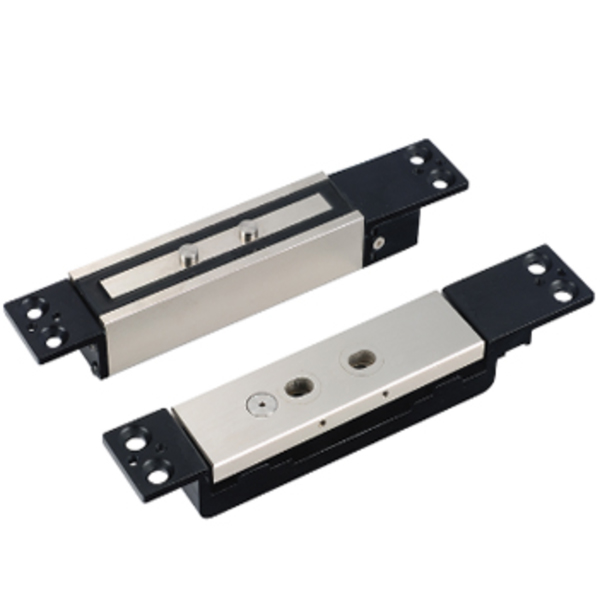

Elock 600M
Holding Force : 600lbs | Mortise Lock
Built-in Reed Switch | Fail-safe type
Designed for Sliding Door | 12V/24VDC

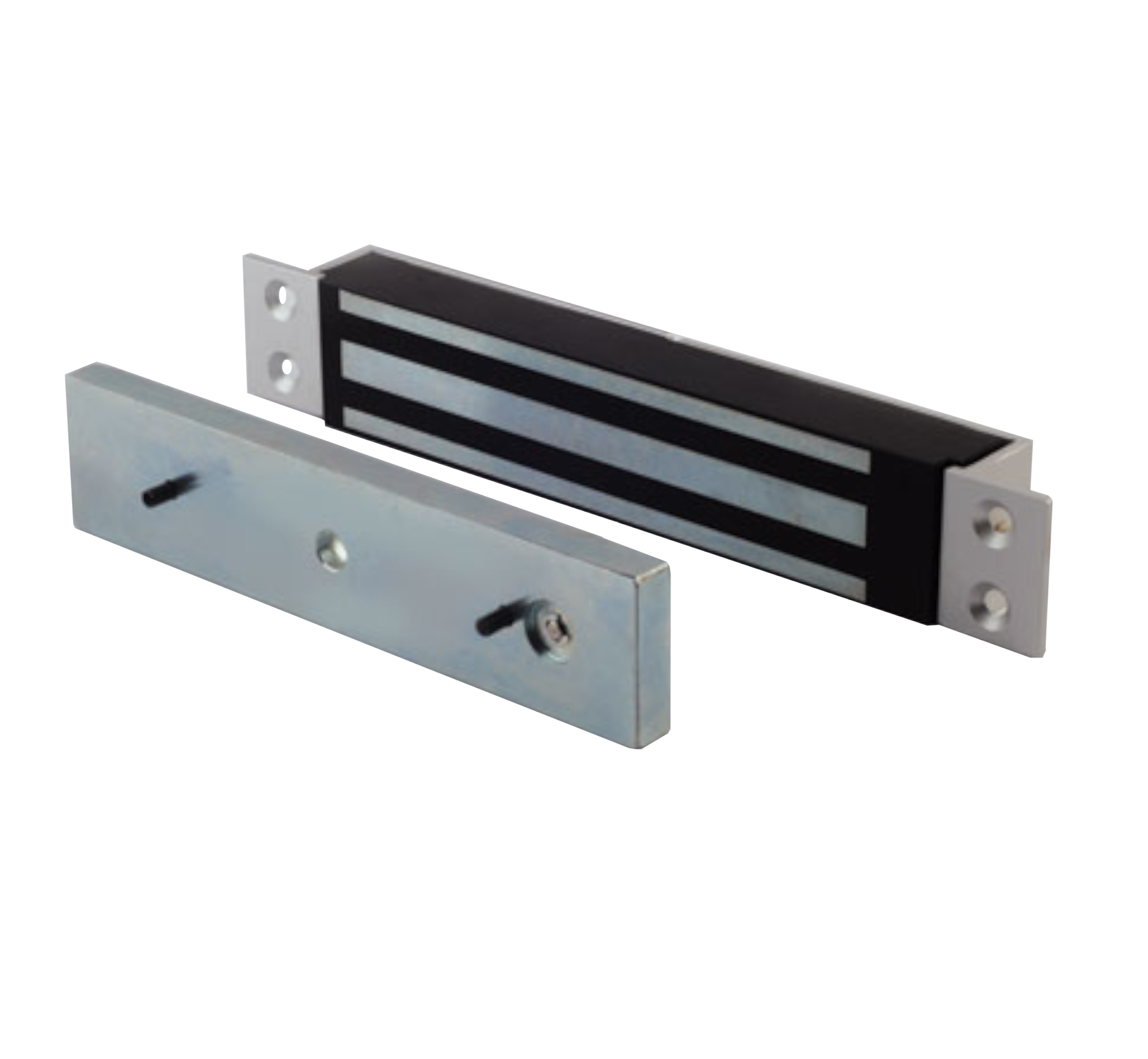

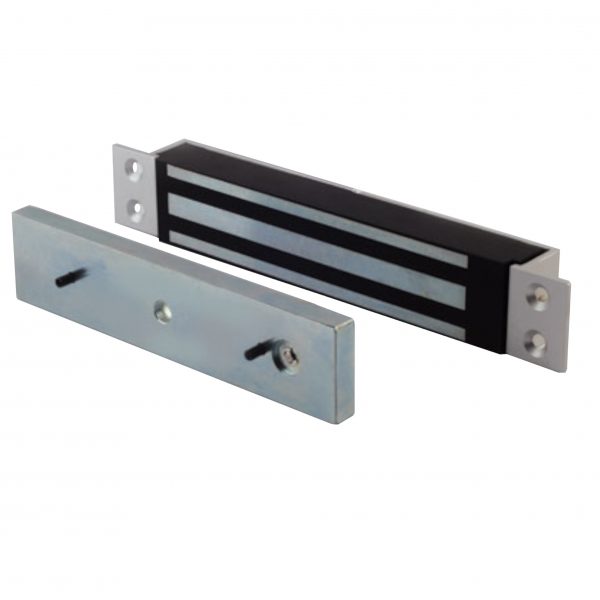

Elock-600MR
Holding Force : 600lbs LED Monitored Mortise Lock
Built-in Reed Switch | Fail-safe type
Designed for Sliding Door | 12V/24VDC

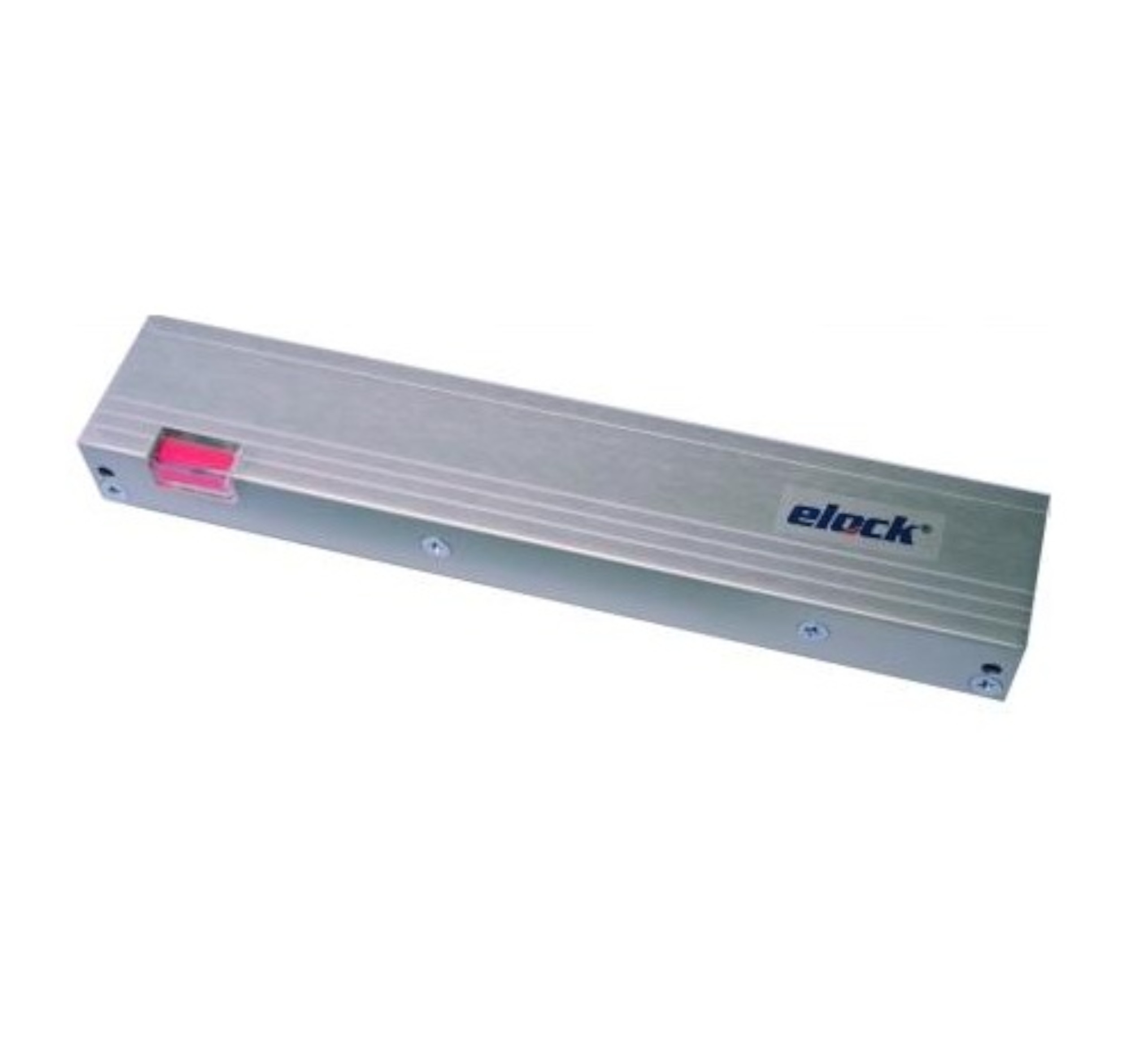

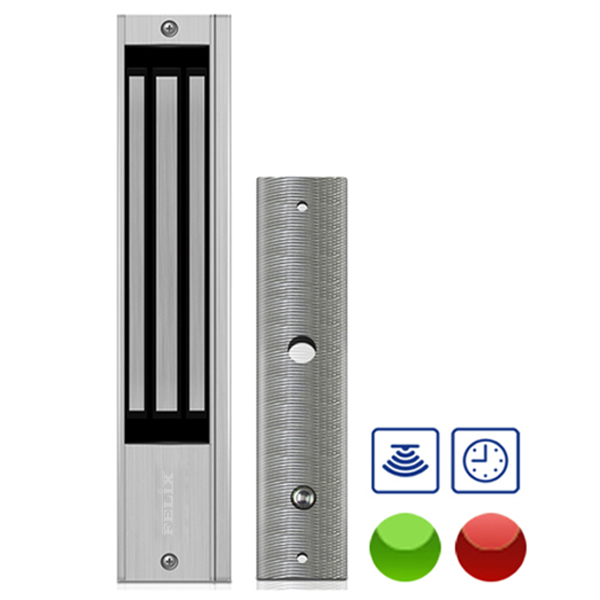

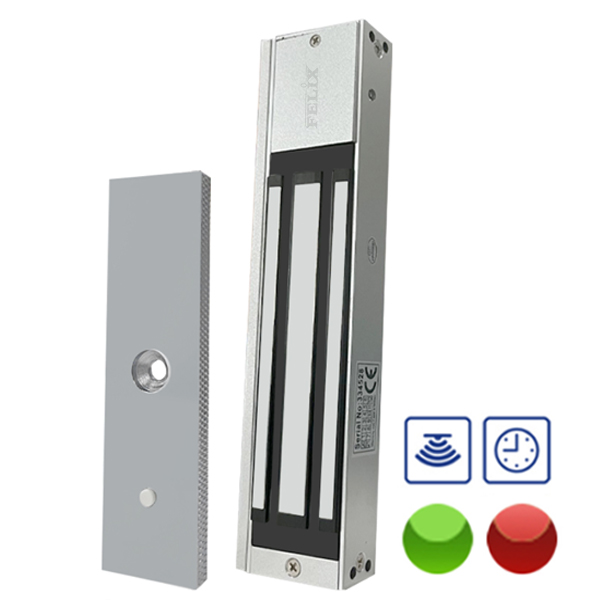

Elock-600SM
Holding Force : 600lbs with LED Monitored
Built-in Delay Timer | Fail-safe type
Dual Voltage 12 & 24VDC (Auto Switchable)

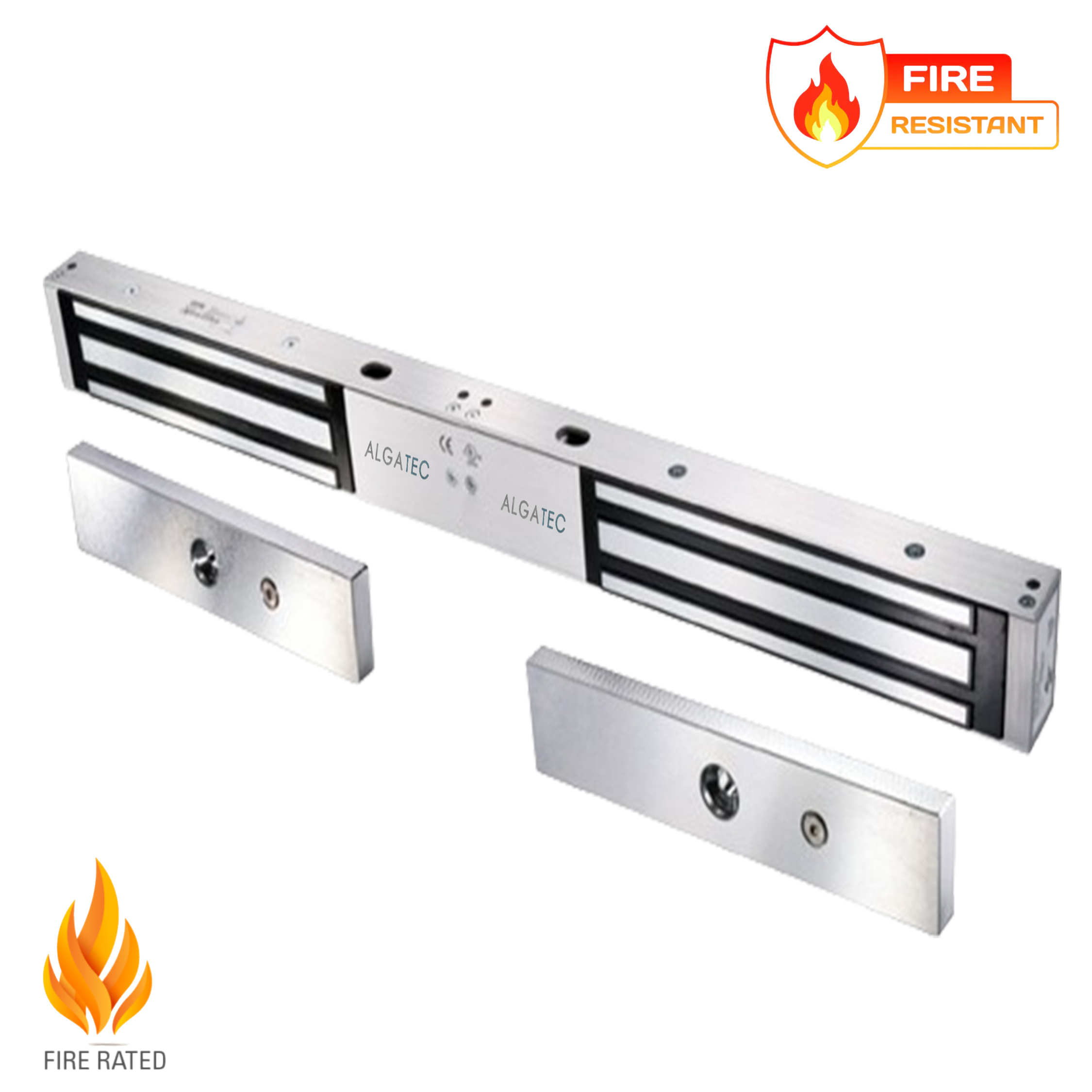

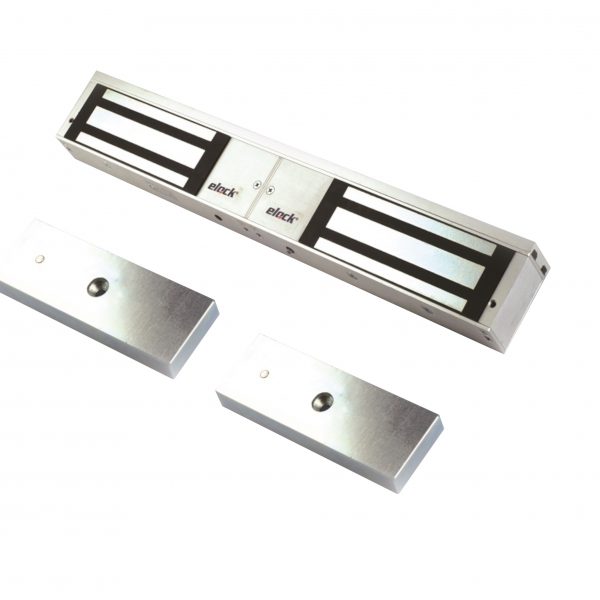

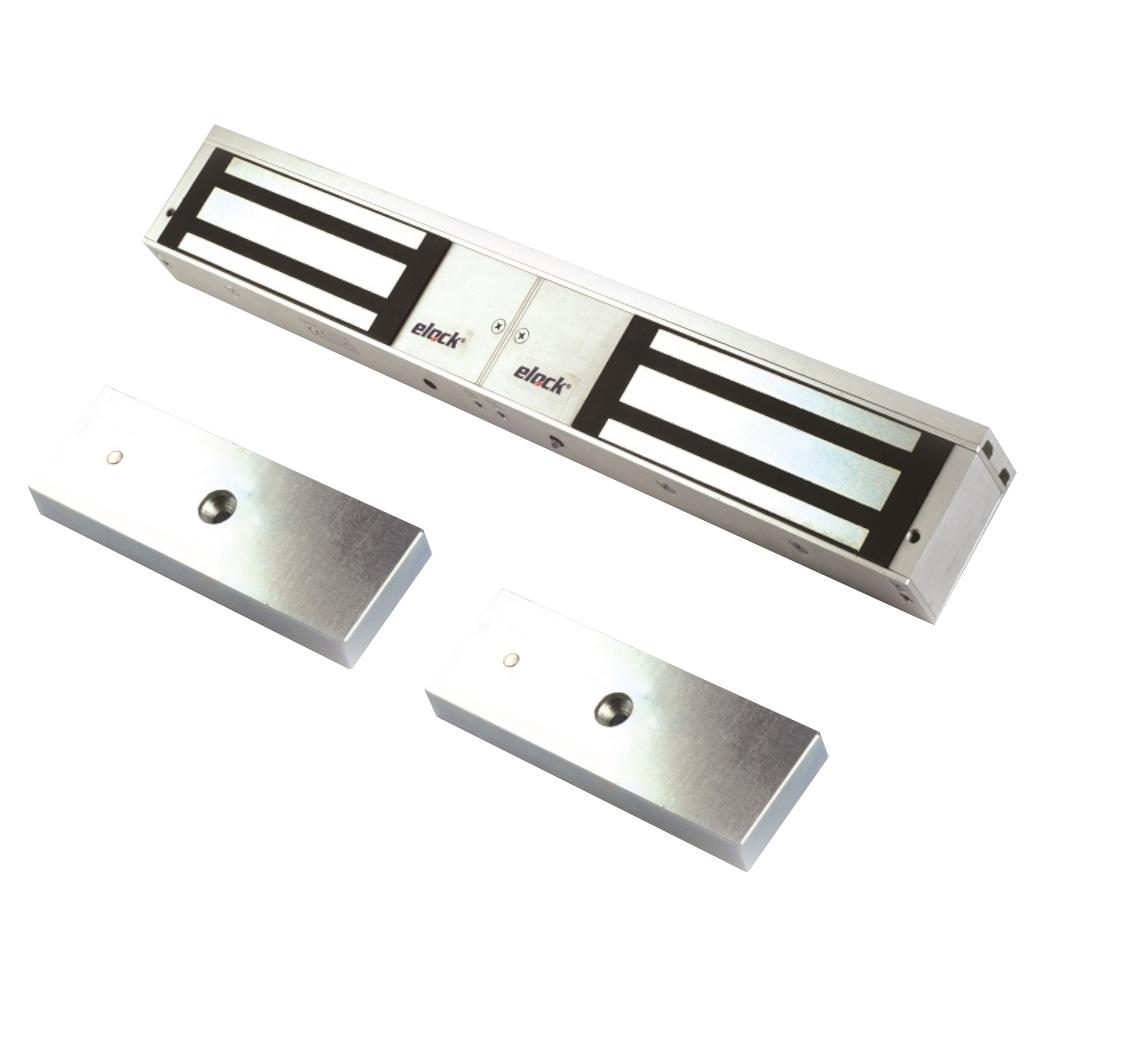

Elock-600X2 / 600LX2
Unmonitored / Monitored
Holding Force: 2x600lbs (Double Magnets).
Built-in Bond Sensor | Fail-safe type
Designed for double leaf doors | 12V/24VDC
Current Drawn: 2 X (500mA / 250mA)

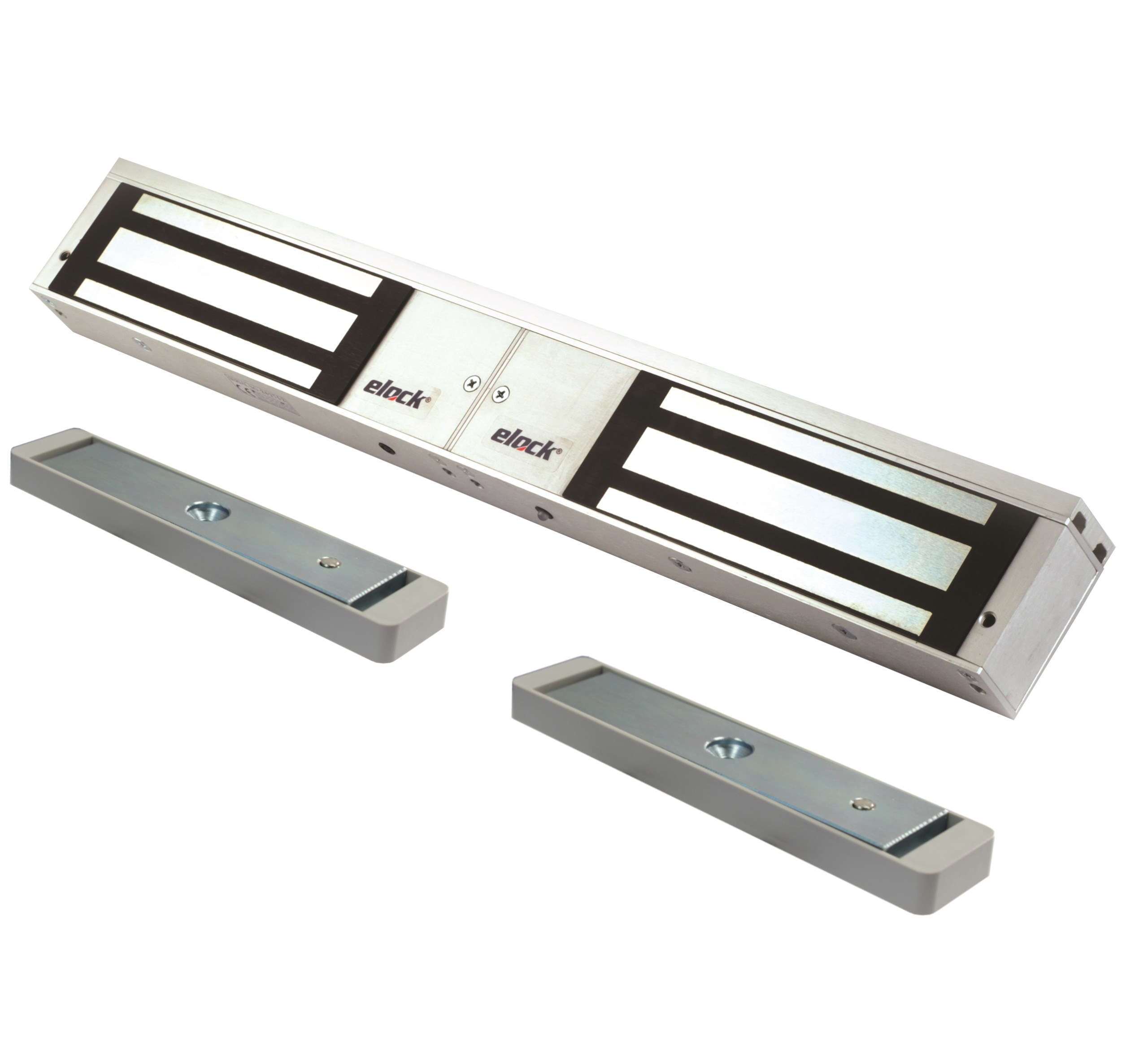

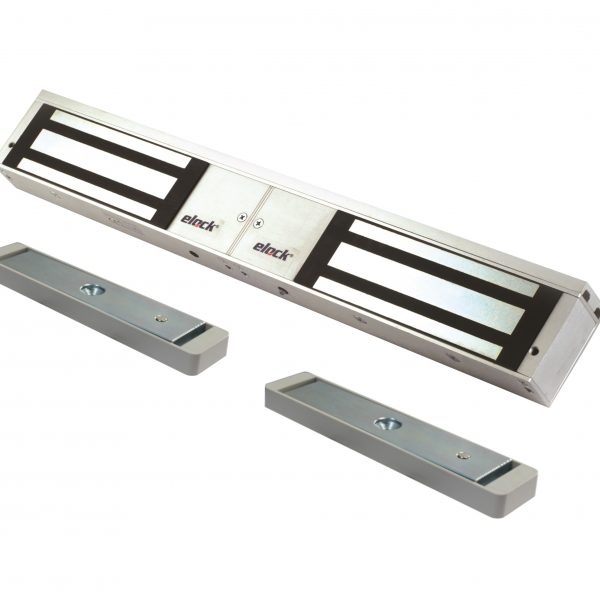

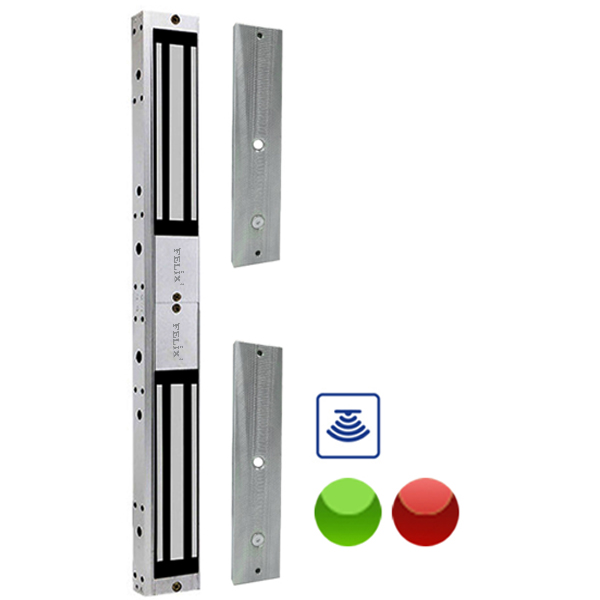

Elock-600LDX2
Holding Force: 2x600lbs (Double Magnets) with LED Monitored
Built-in Door Status Sensor | Fail-safe type
Designed for double leaf doors | 12V/24VDC

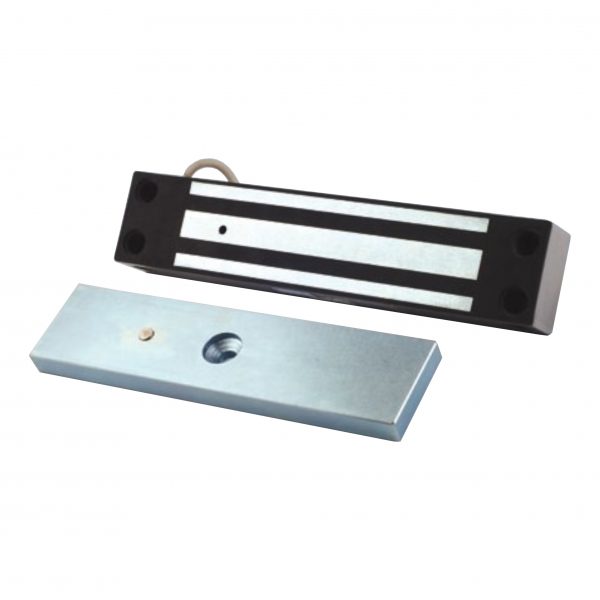

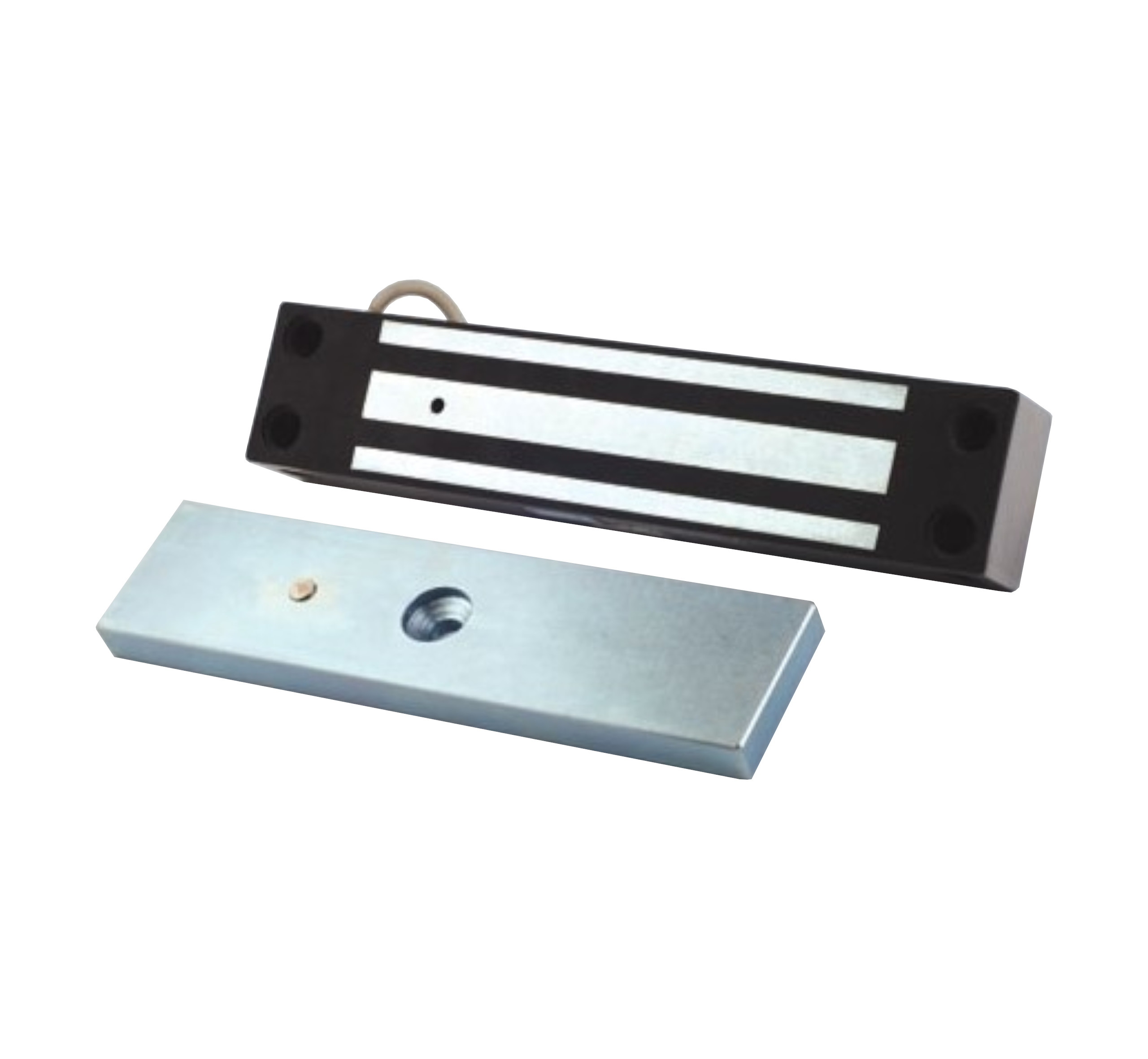

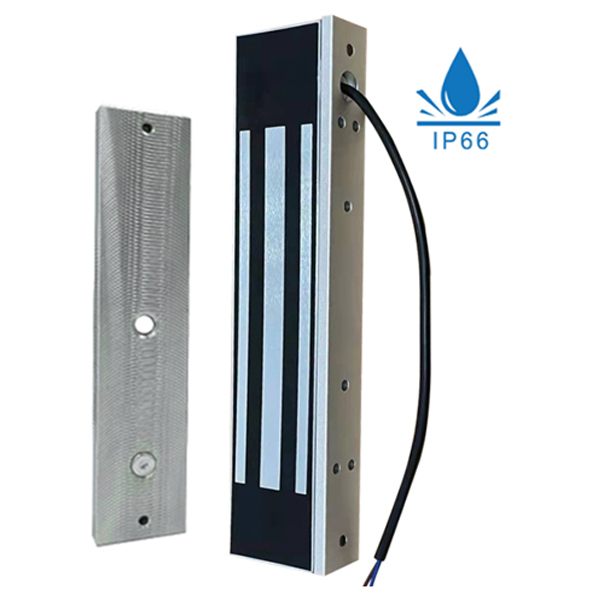

Elock 800S
Holding Force : 800lbs | Weather-Resistant
Built-in Door Status Sensor | Fail-safe type
Specially designed for outdoor gates | 12V/24VDC
Elock-1200S
Holding Force : 1200lbs | Weather-Resistant
Built-in Door Status Sensor | Fail-safe type
Specially designed for outdoor gates | 12V/24VDC

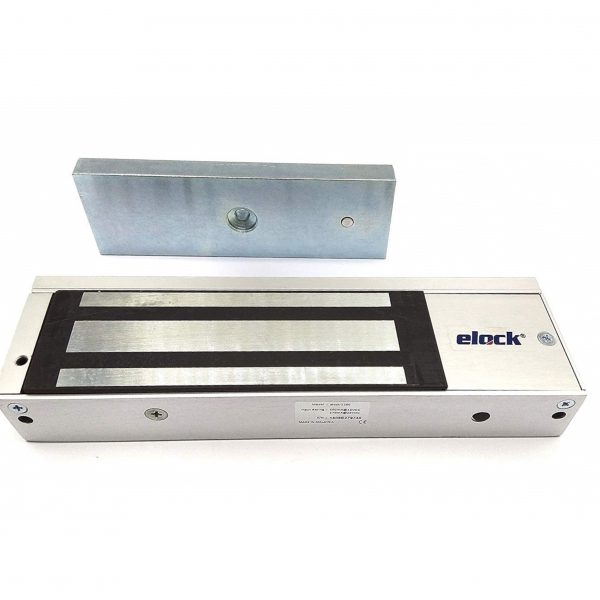

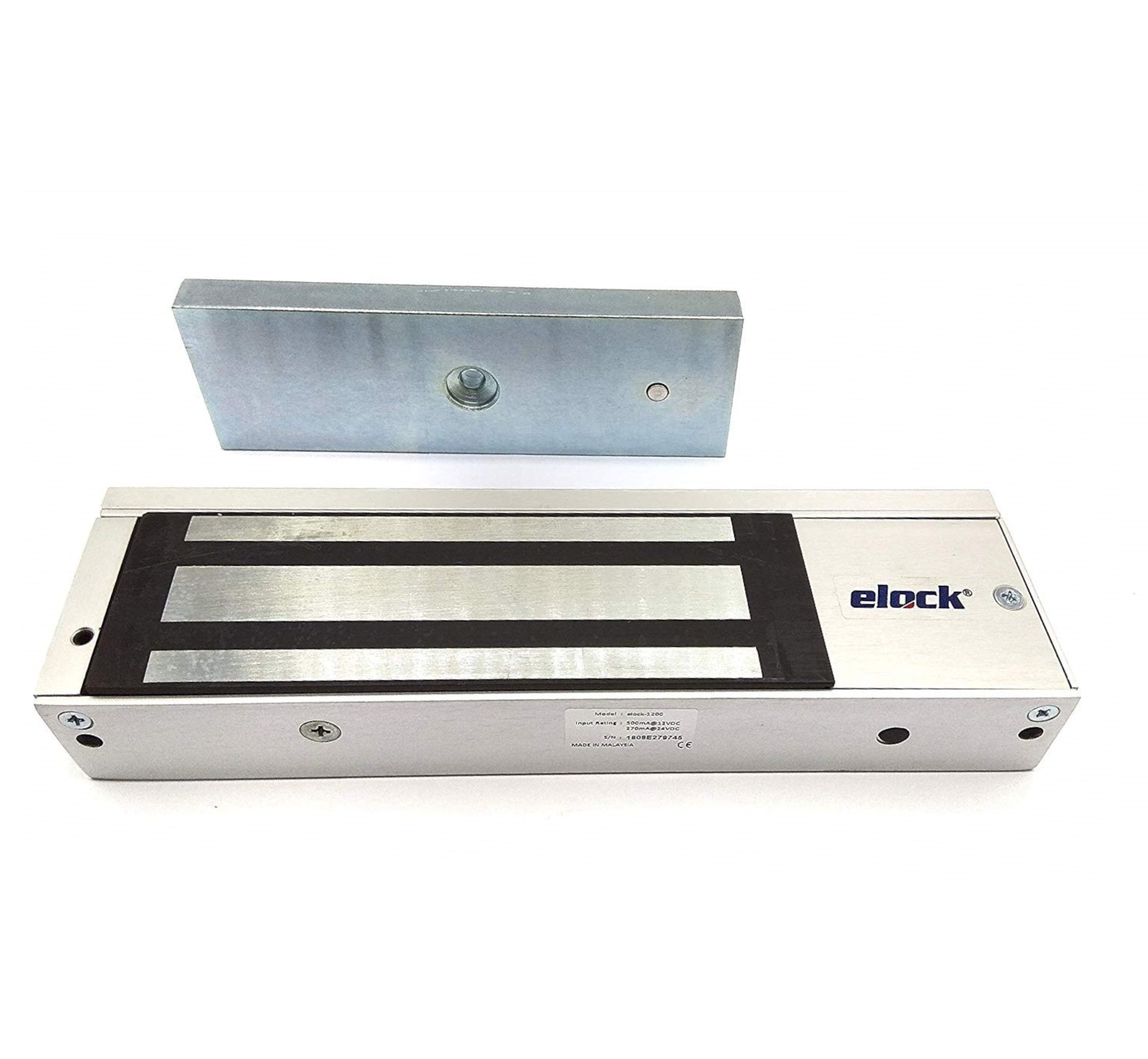

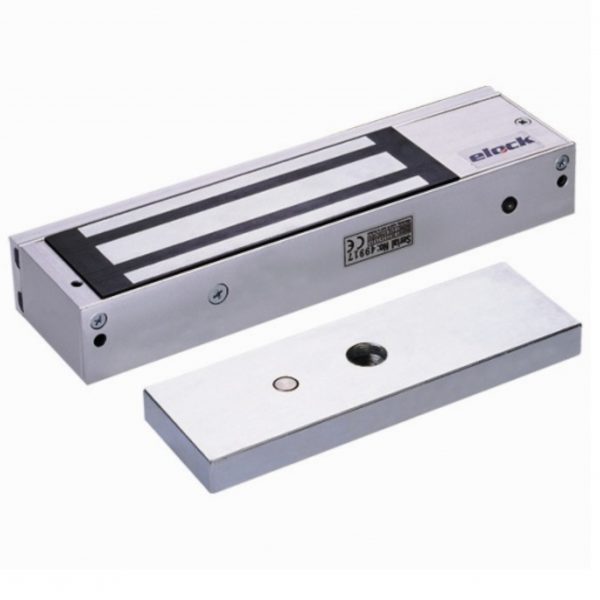

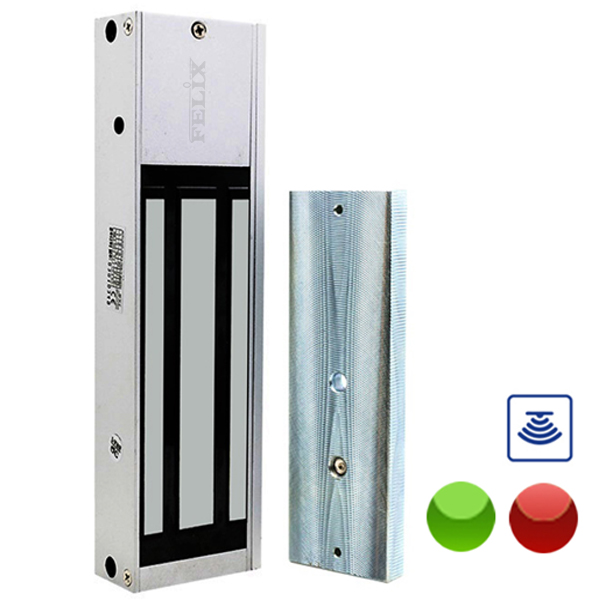

Elock-1200 / 1200L
Unmonitored / Monitored
Holding Force: 1200lbs
Built-in Bond Sensor | Fail-safe type
Operating Voltage: 12V/24VDC
Current Drawn: 500mA / 250mA

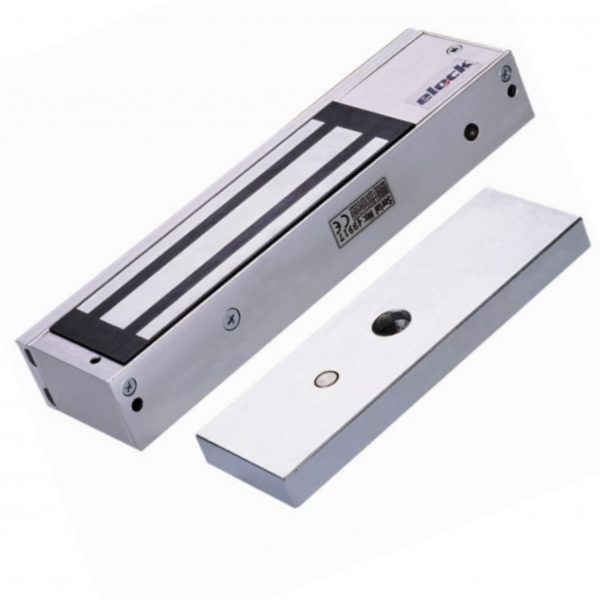

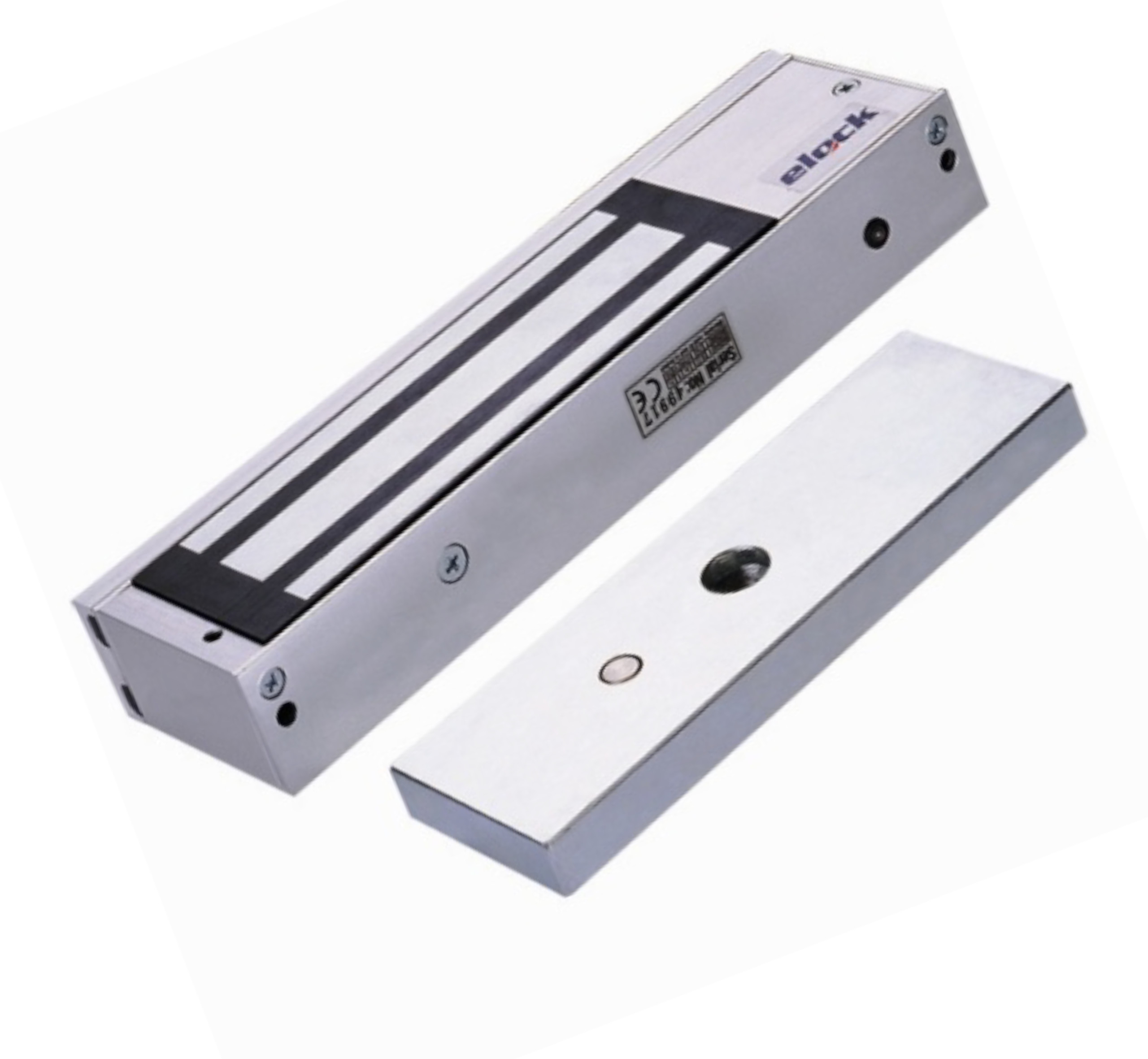

Elock-1200(UL)/1200L(UL)
Unmonitored / Monitored
Holding Force : 1200lbs
Built-in Bond Sensor | Fail-safe type
Operating Voltage: 12V/24VDC
Current Draw: 500mA @12V DC / 270mA @24V DC

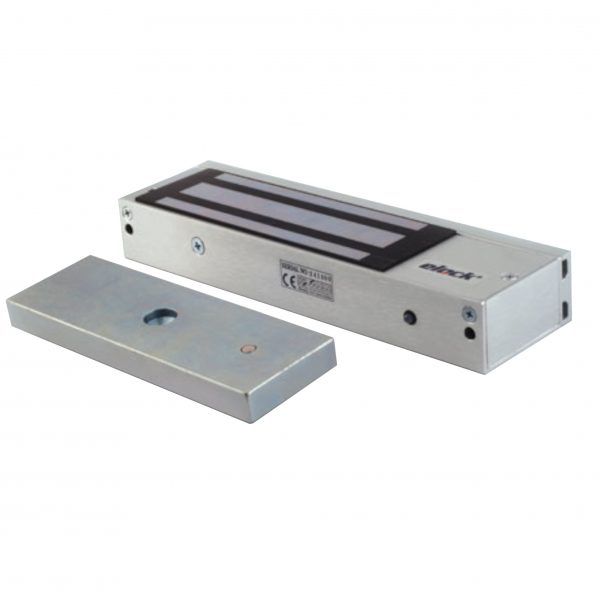

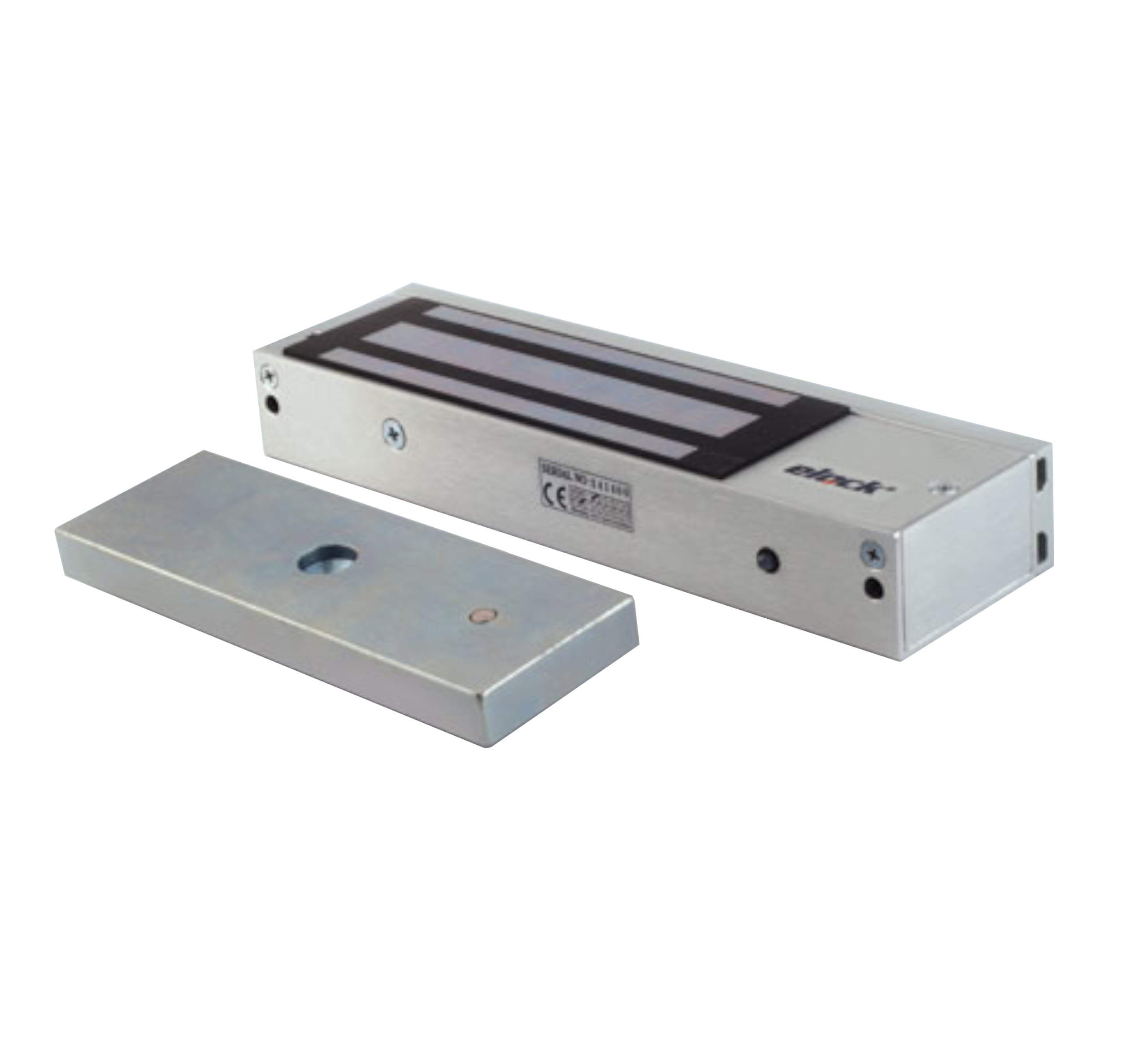

Elock-1200LD
Holding Force : 1200lbs with LED Monitored
Built-in Door Status Sensor | Fail-safe type
Operating Voltage: 12V/24VDC

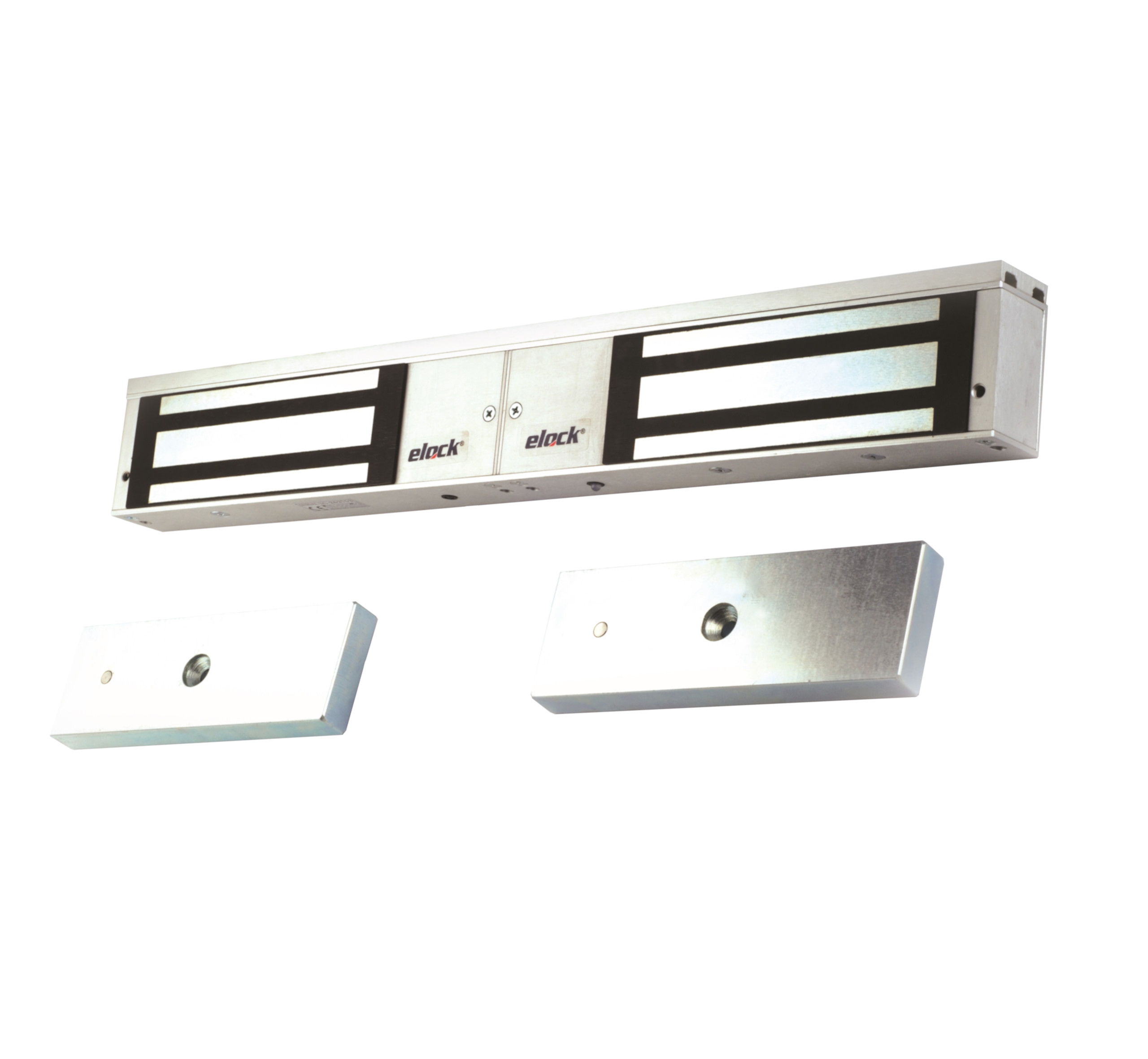

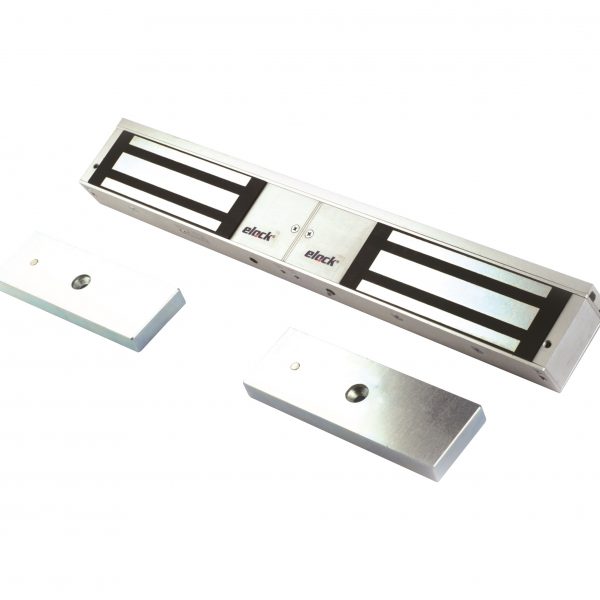

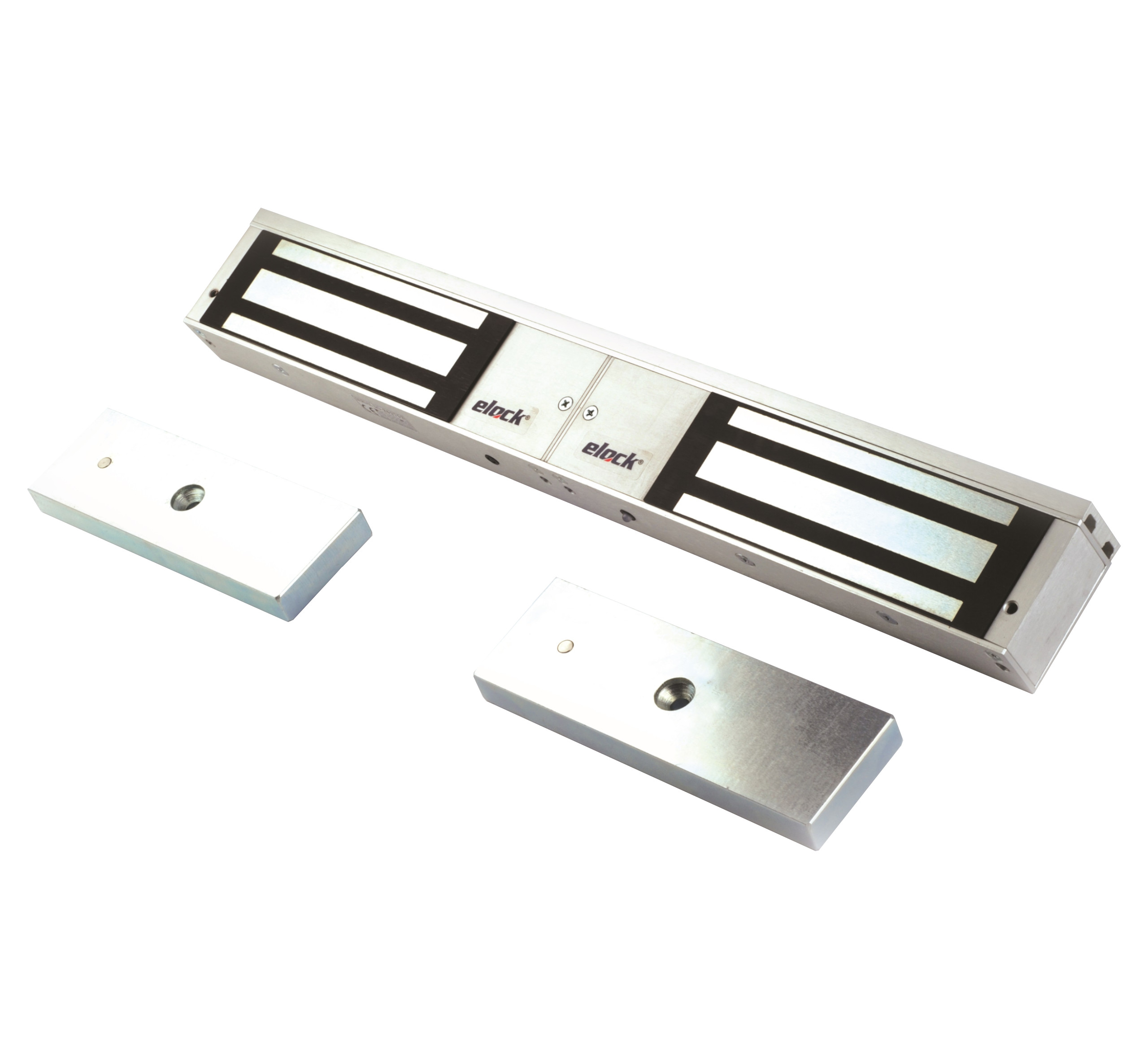

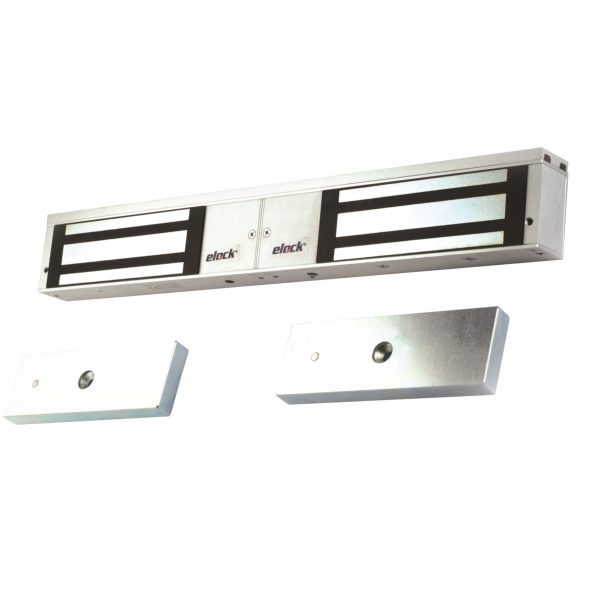

Elock-1200X2/1200LX2
Unmonitored / Monitored
Holding Force: 2x1200lbs.
Built-in Bond Sensor | Fail-safe type
Designed for double leaf doors | 12V/24VDC
Current Drawn: 2 X (500mA / 250mA)
Elock-1200LDX2
Holding Force: 2x1200lbs with LED Monitored
Built-in Door Status Sensor | Fail-safe type
Designed for double leaf doors | 12V/24VDC

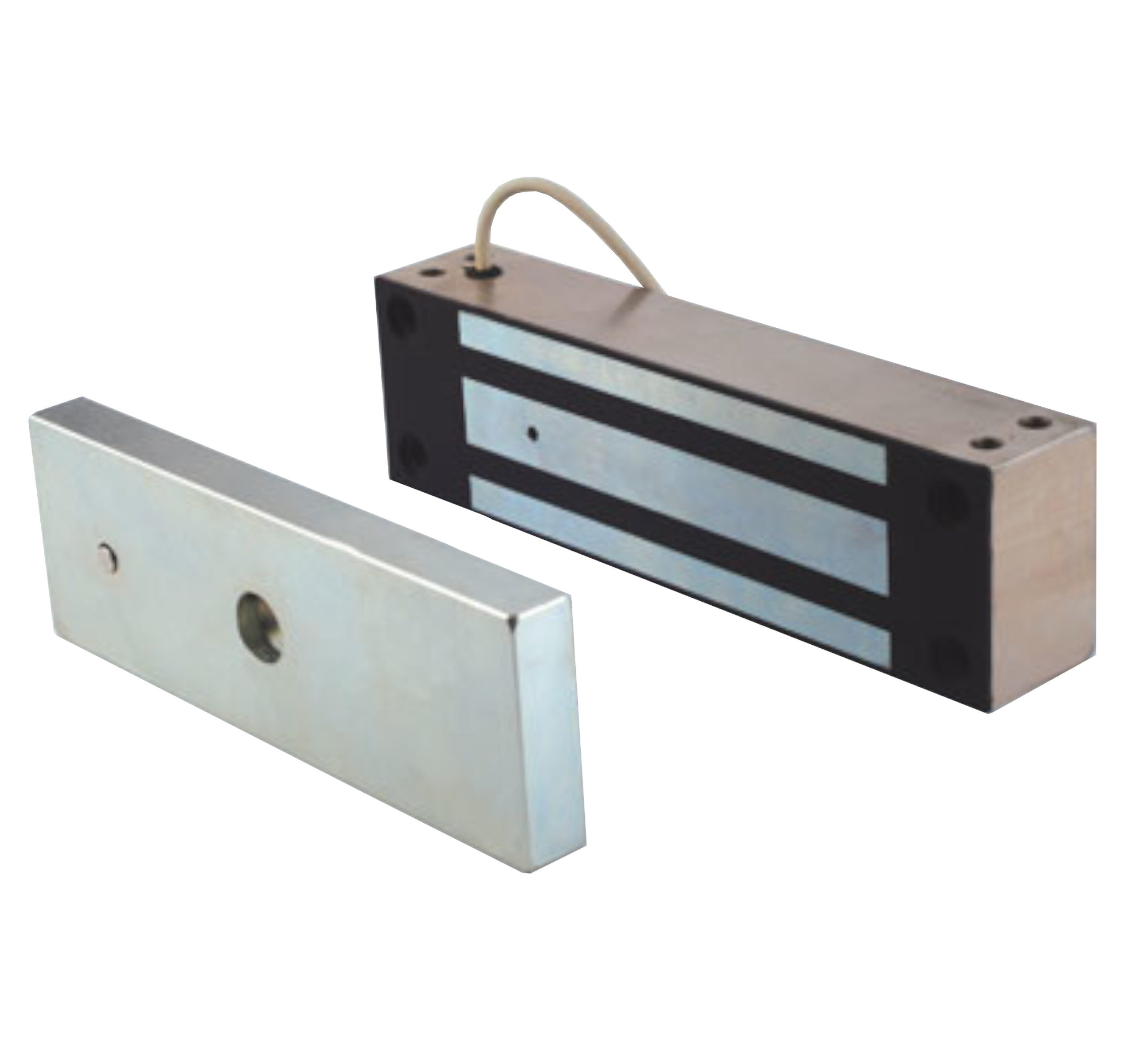

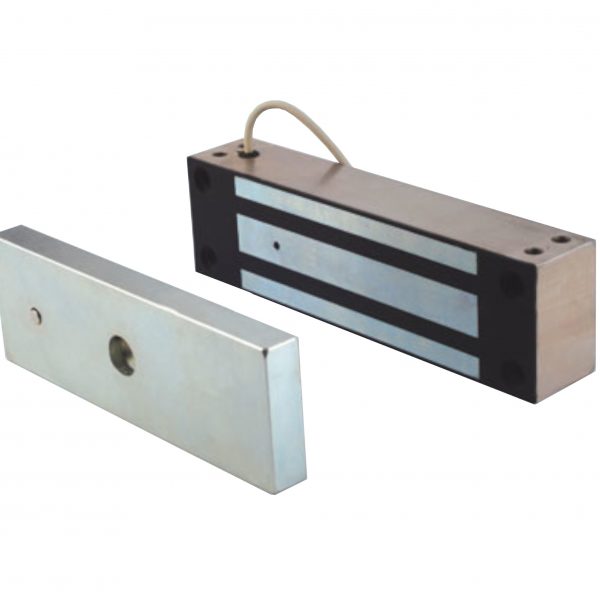

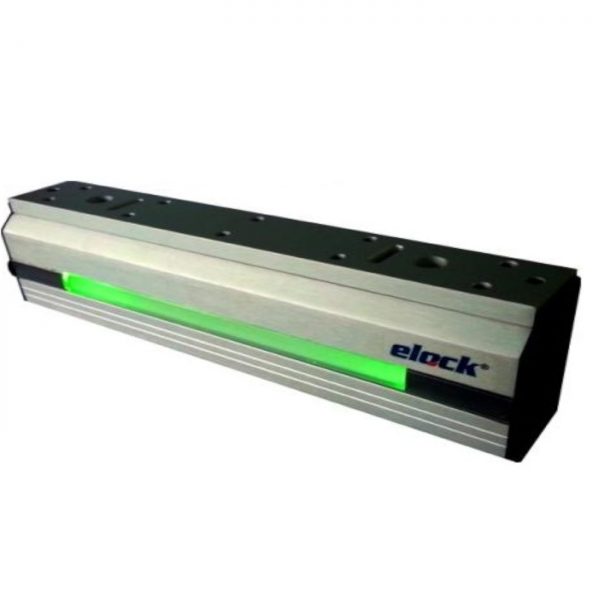

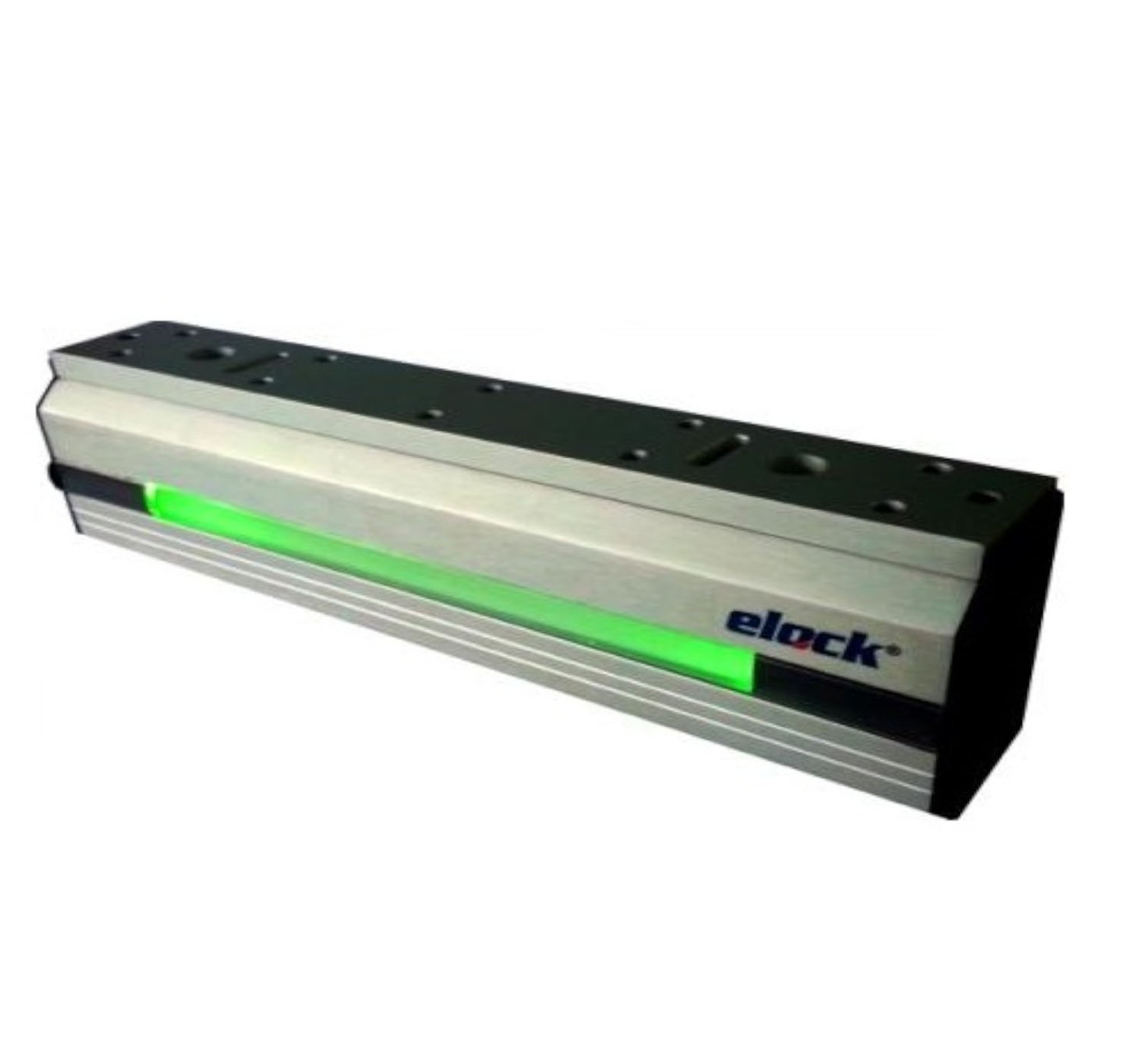

Elock-1200SM
Holding Force : 1200lbs with LED Monitored
Built-in Delay Timer | ABS Bracket
Dual Voltage 12 & 24VDC (Auto Switchable)
Elock-1500 / 1500L
Unmonitored / Monitored
Holding Force : 1500lbs
Built-in Bond Sensor | Fail-safe type
Operating Voltage: 12V/24VDC
Current Drawn: 500mA / 250mA
Accessories

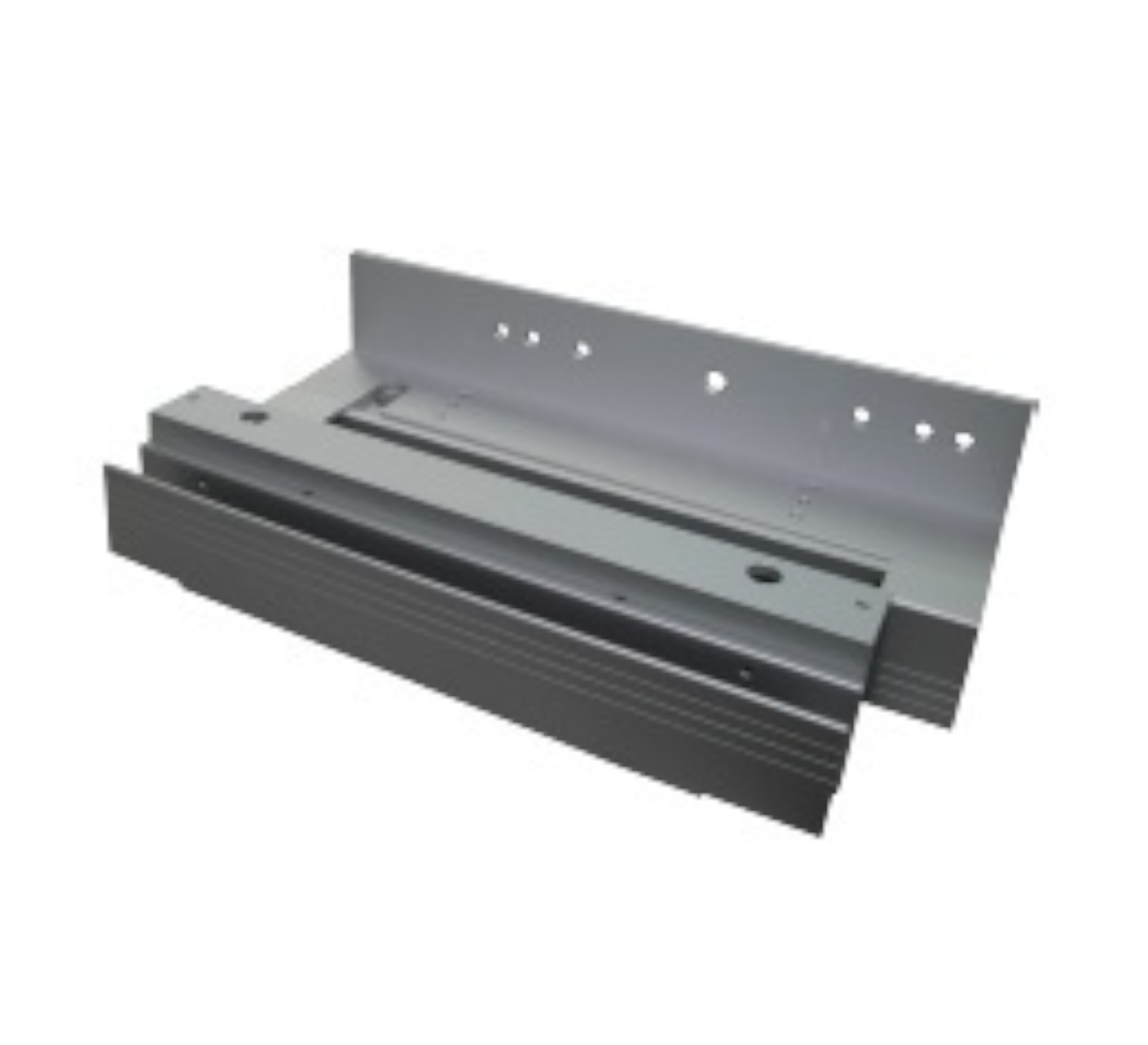

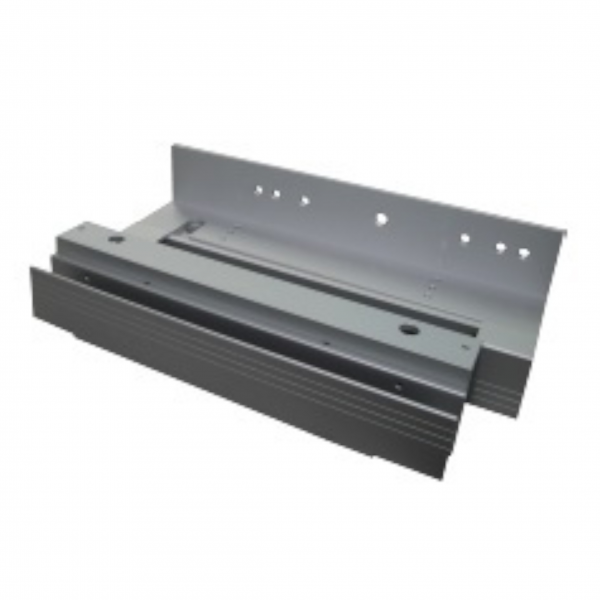

EL-BKG (G Bracket)
G Bracket adjustable for Elock- 600 Series
Suitable for use with frameless glass doors and the glass wall
Adjustable for inward door application

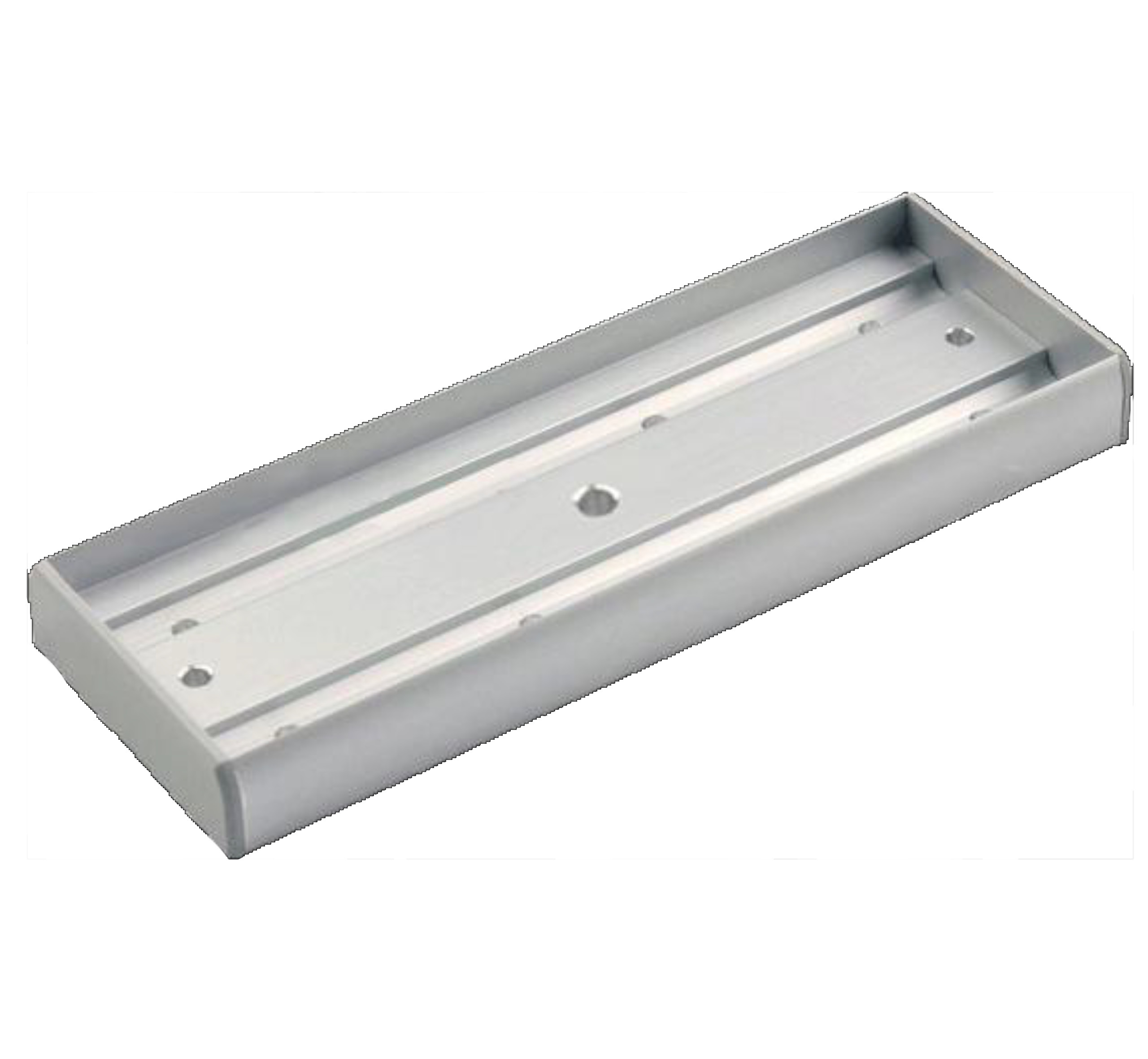

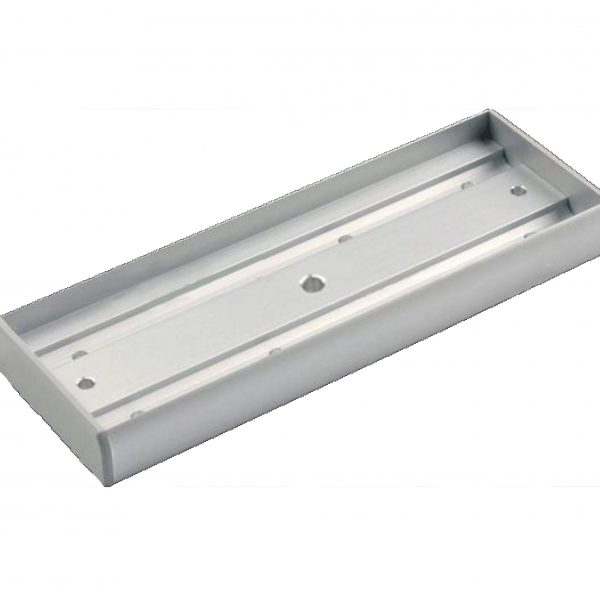

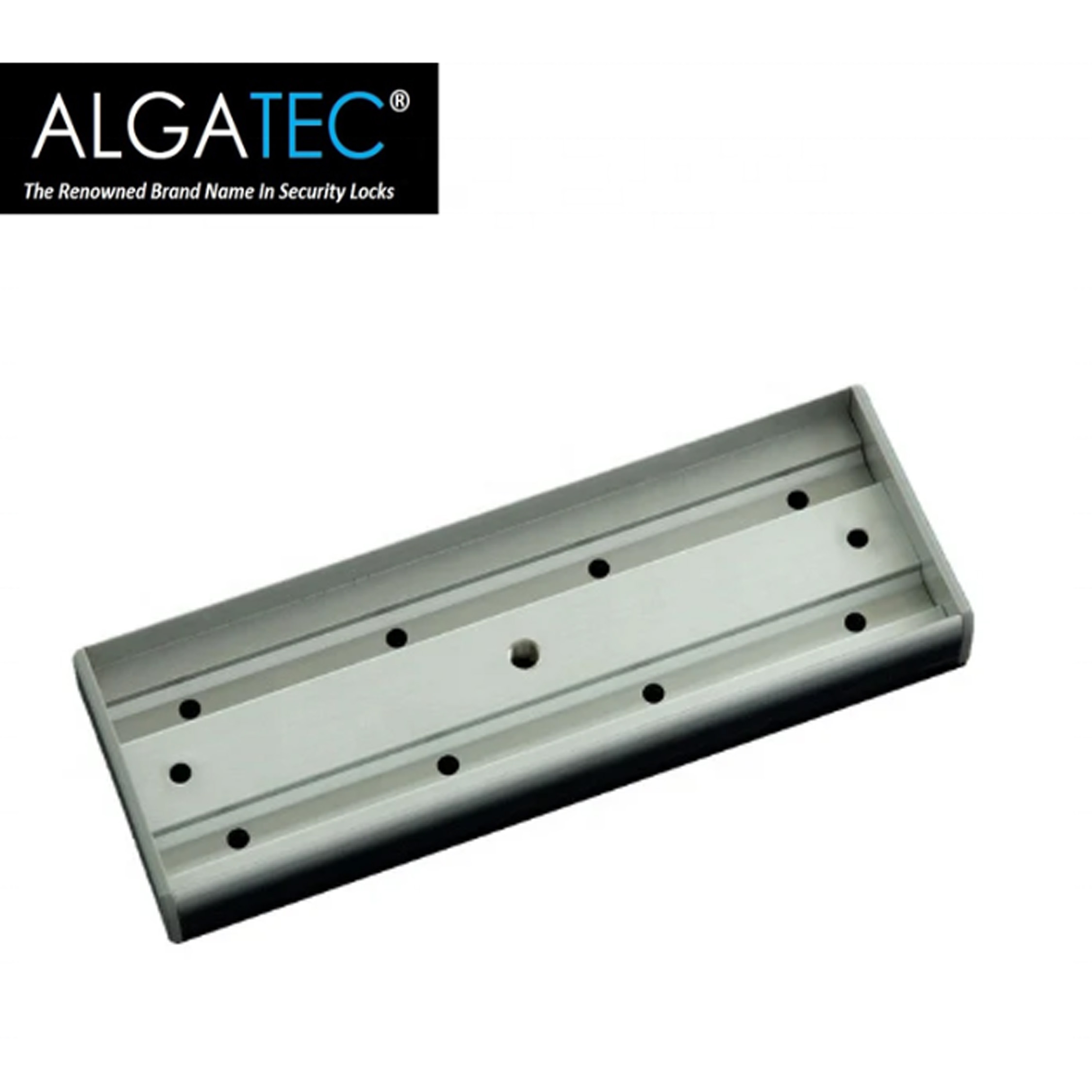

EL-BK-AR (AR Bracket)
Armature plate housing for Elock 600 and 1200 series

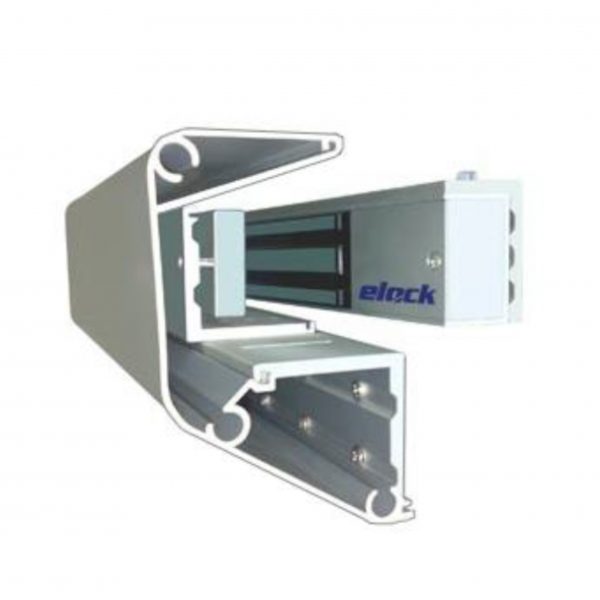

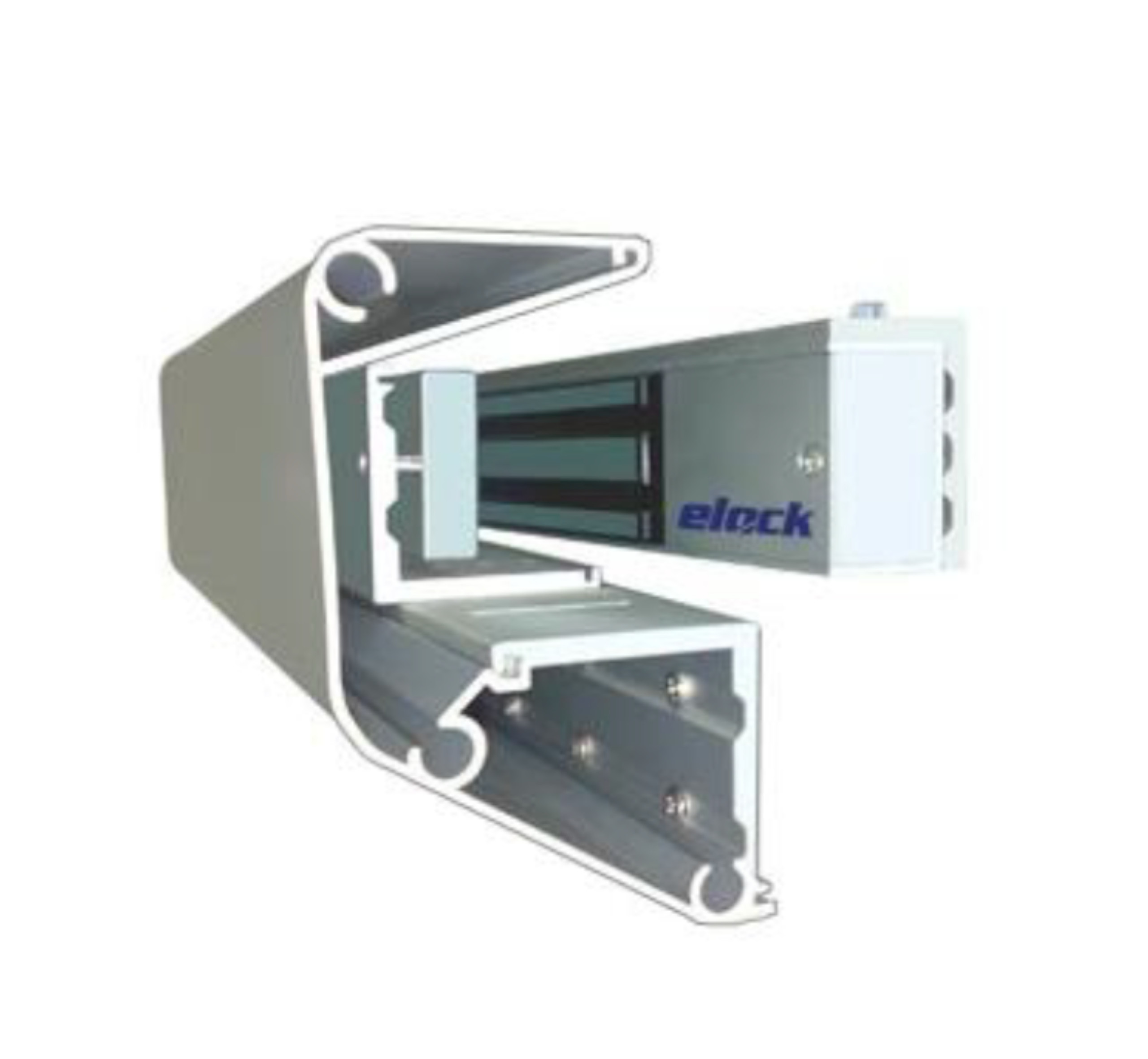

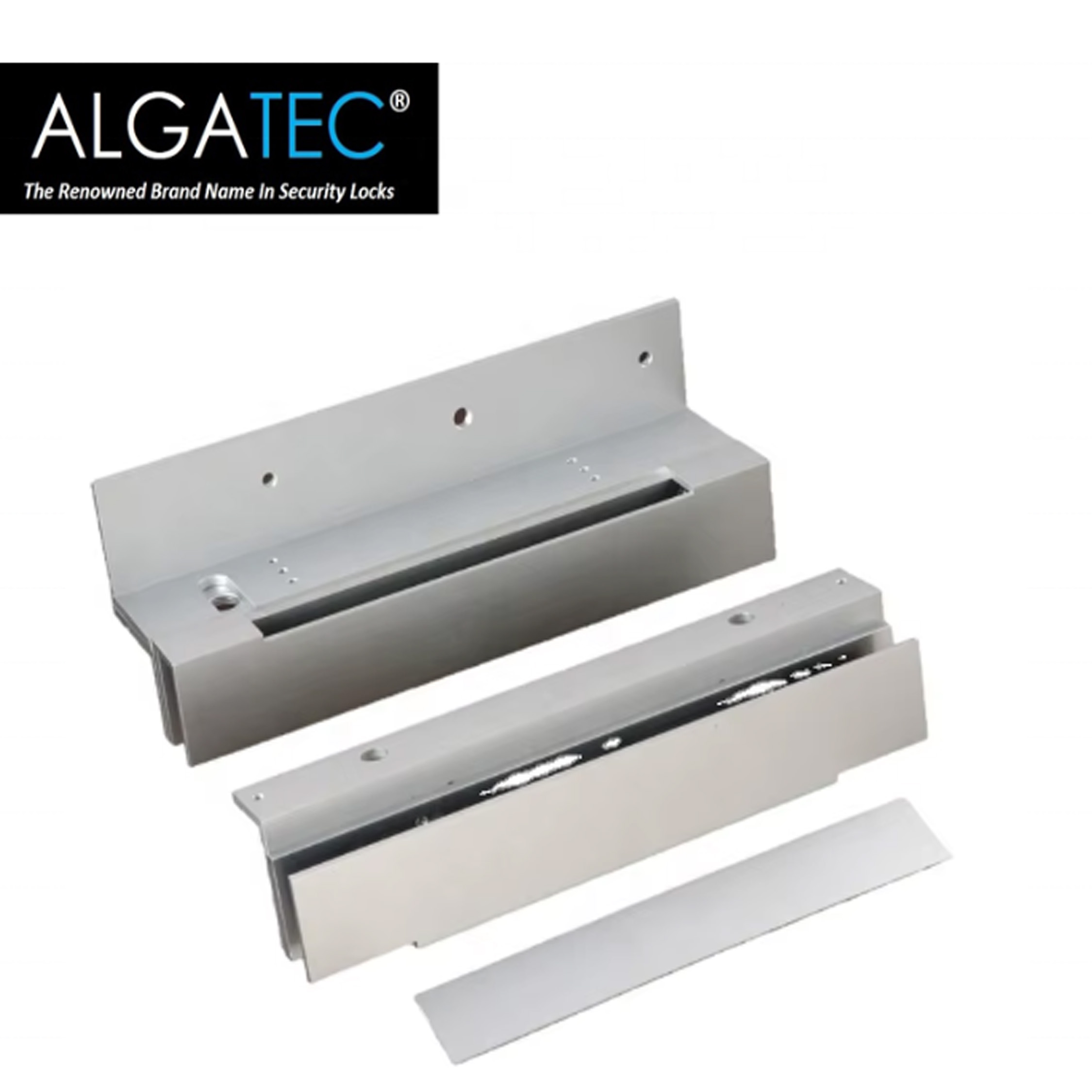

EL-BK-Z600C
ZL Bracket cover for Elock-600 series
Adjustable “ ZL” bracket with cover for Inward door application

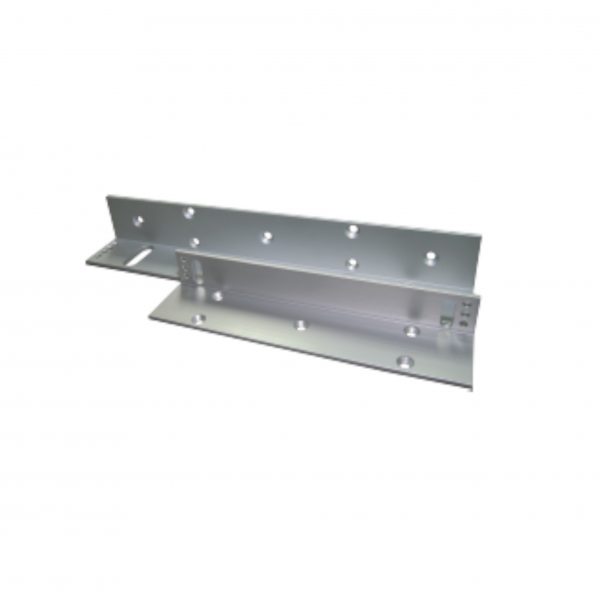

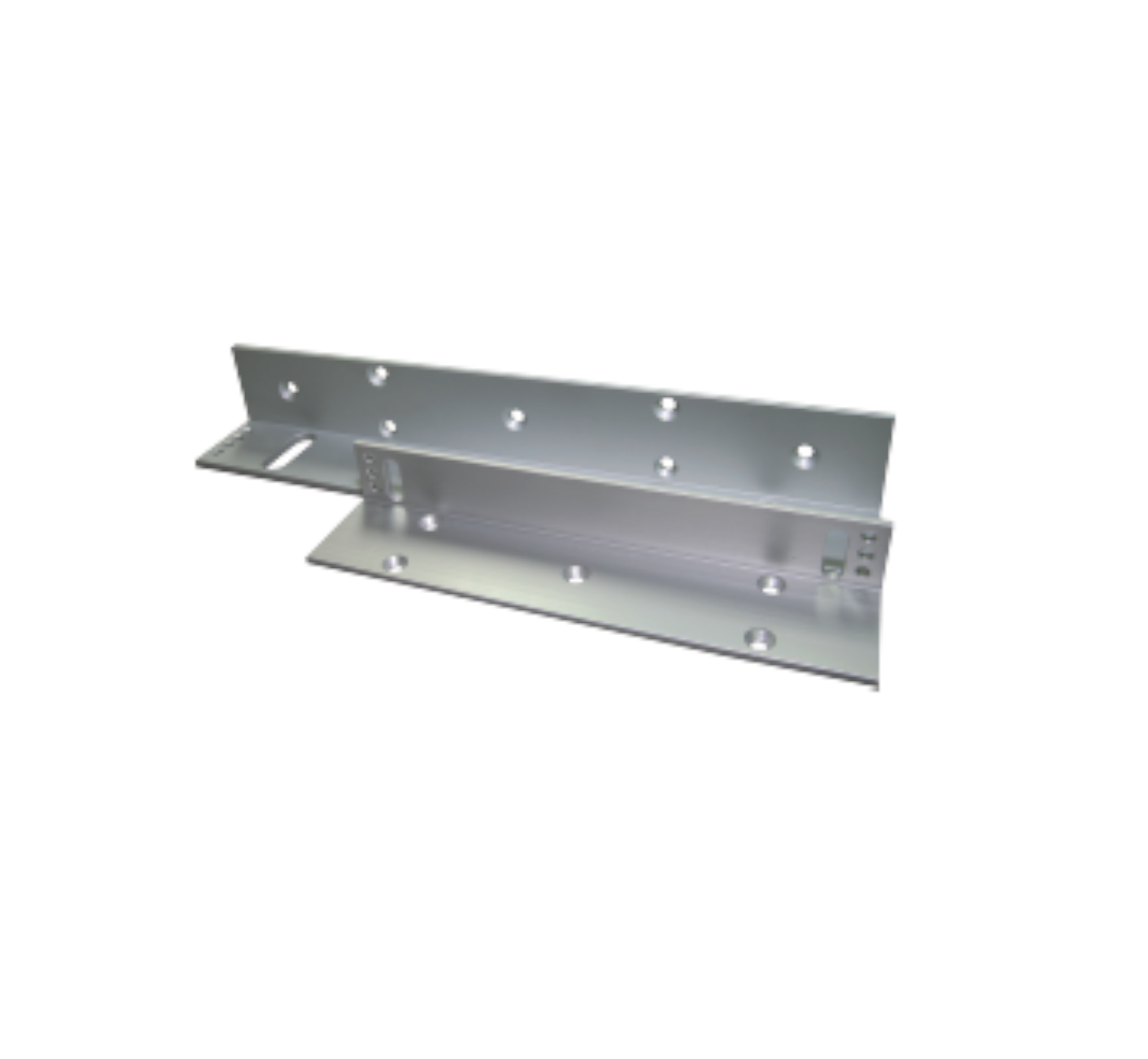

EL-BKL (L Bracket)
L Bracket adjustable for Elock-300, 600, 800S, 1200 and 1500 Series
Adjustable L Bracket for outward door when the header is narrow.

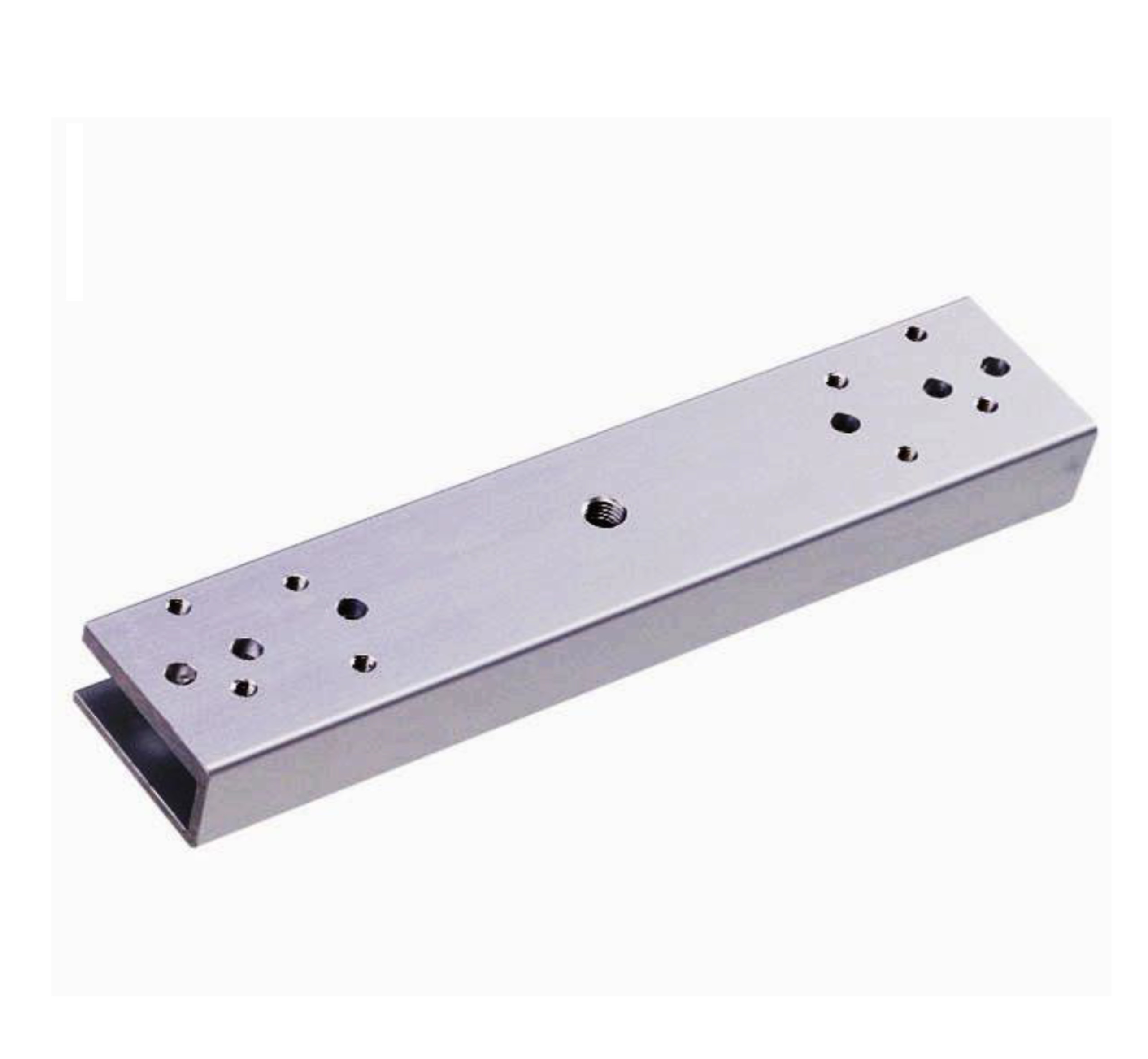

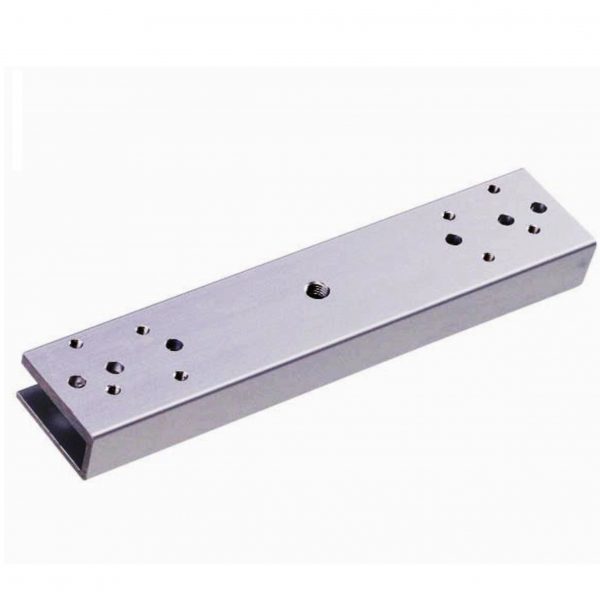

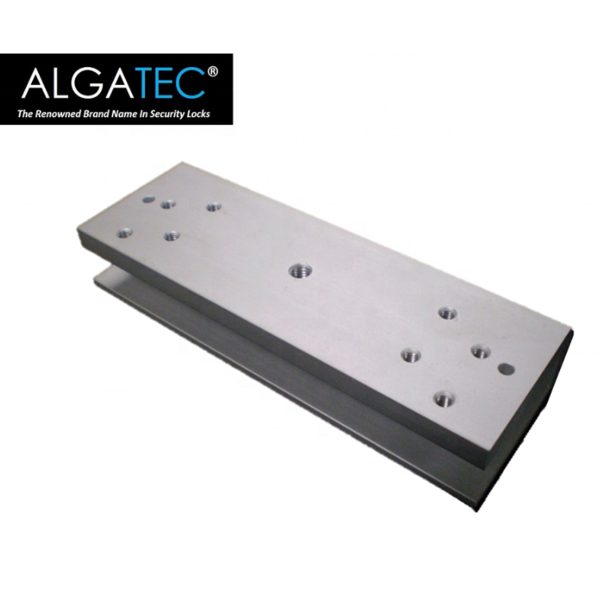

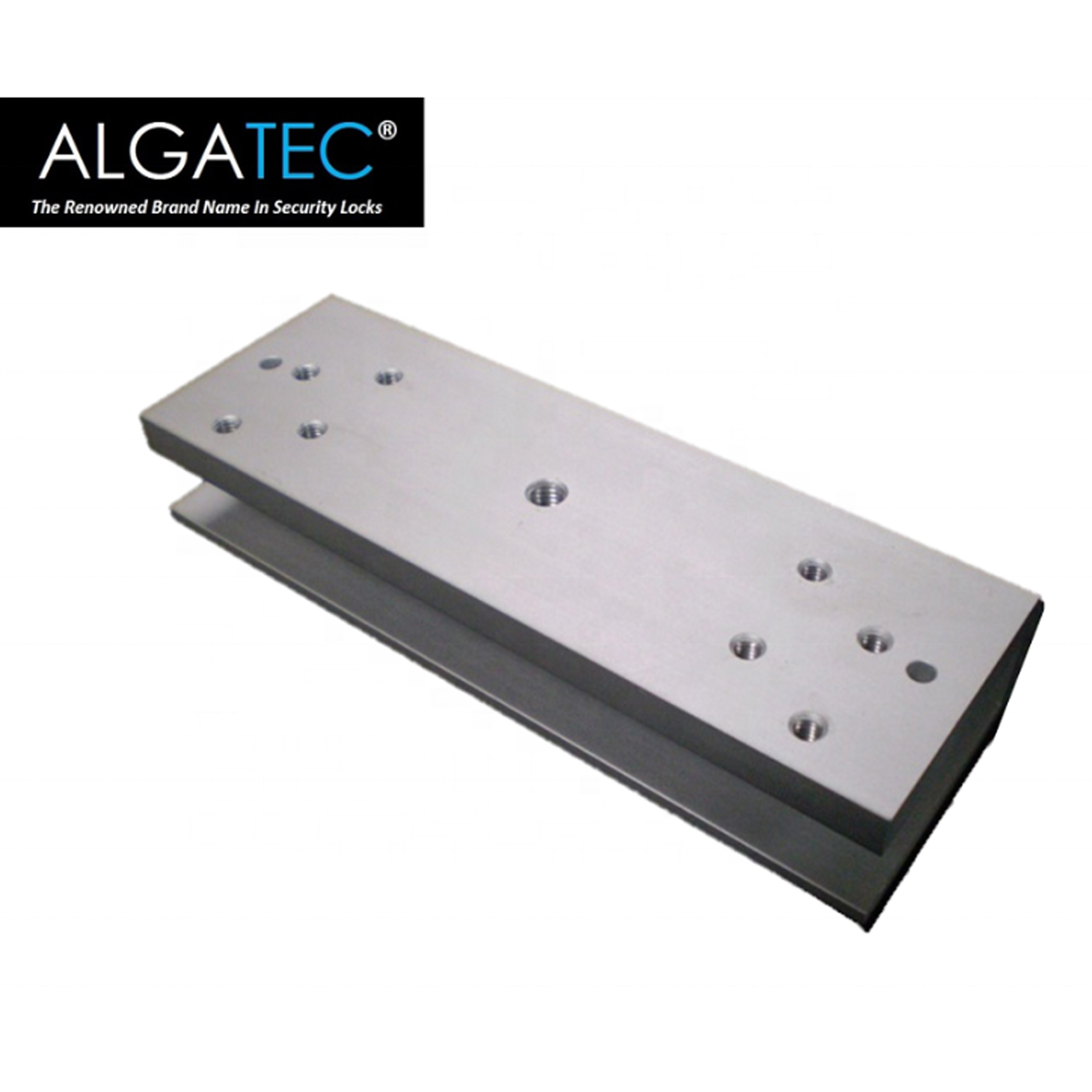

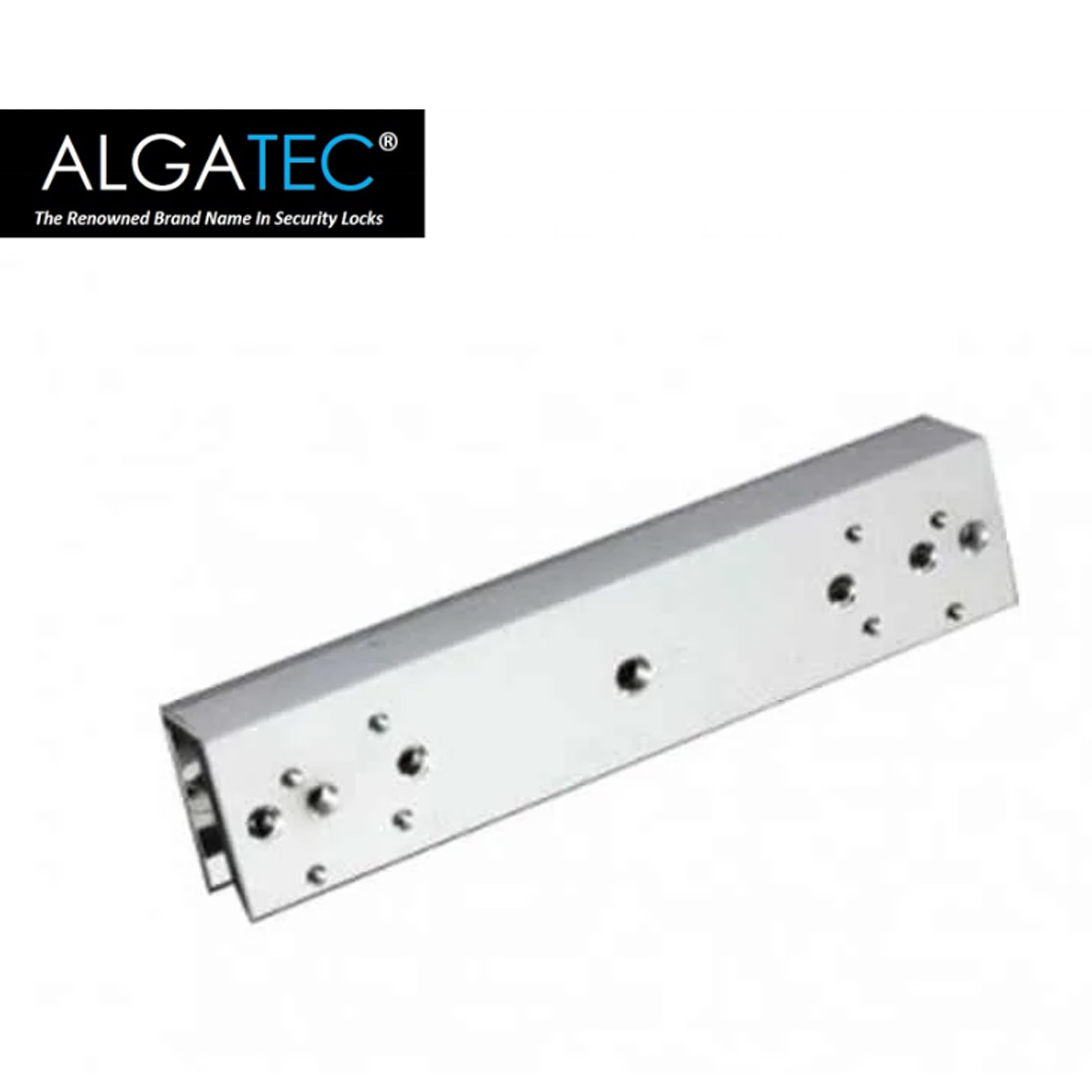

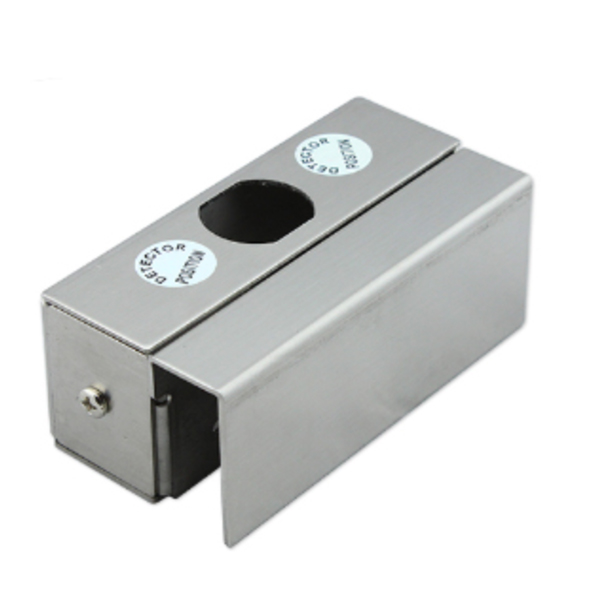

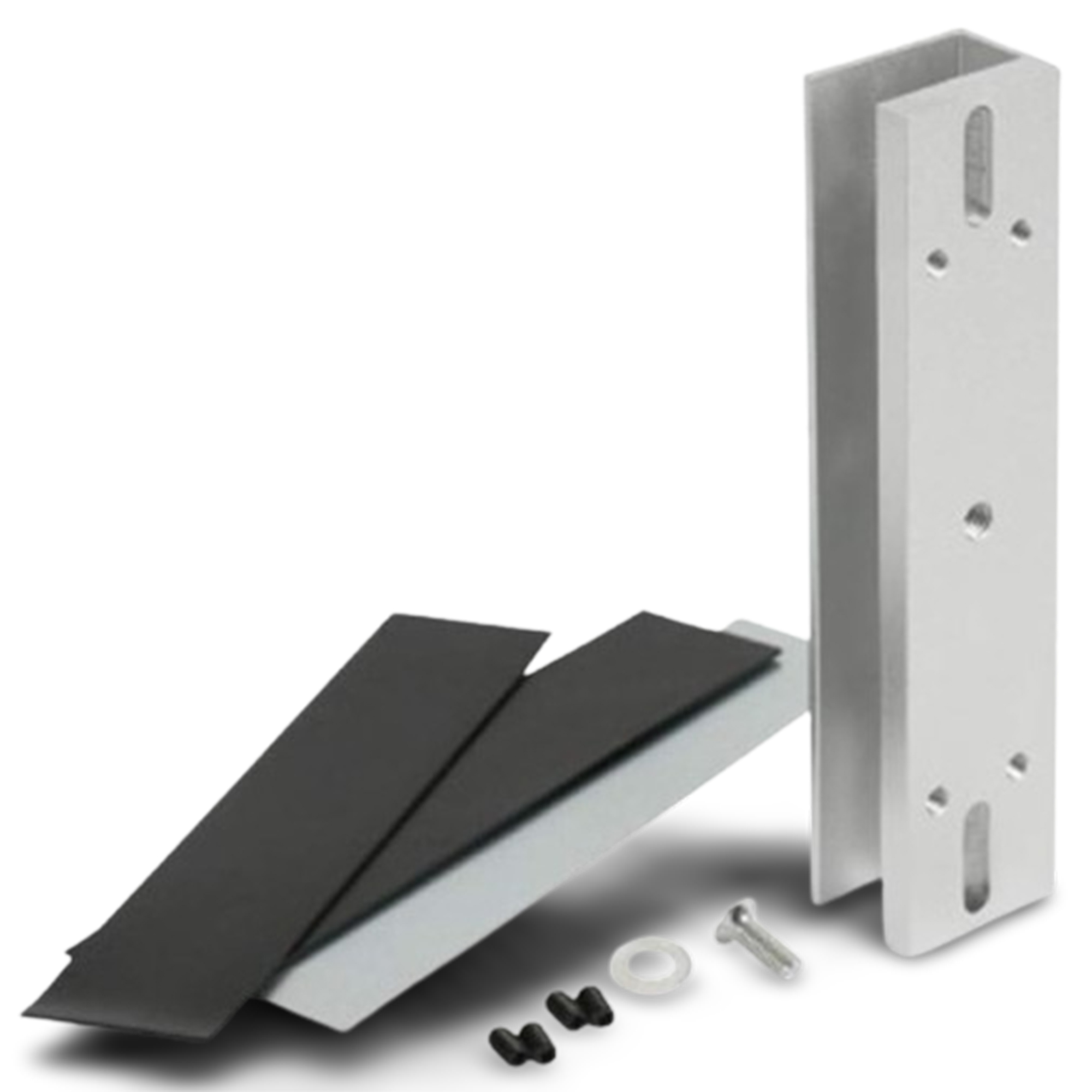

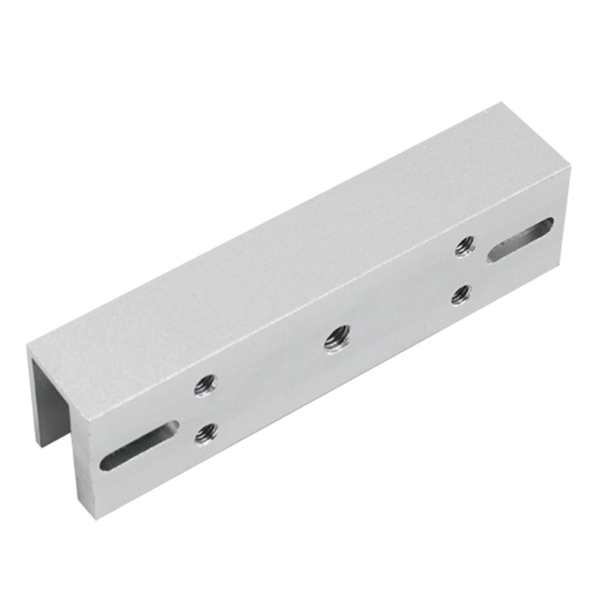

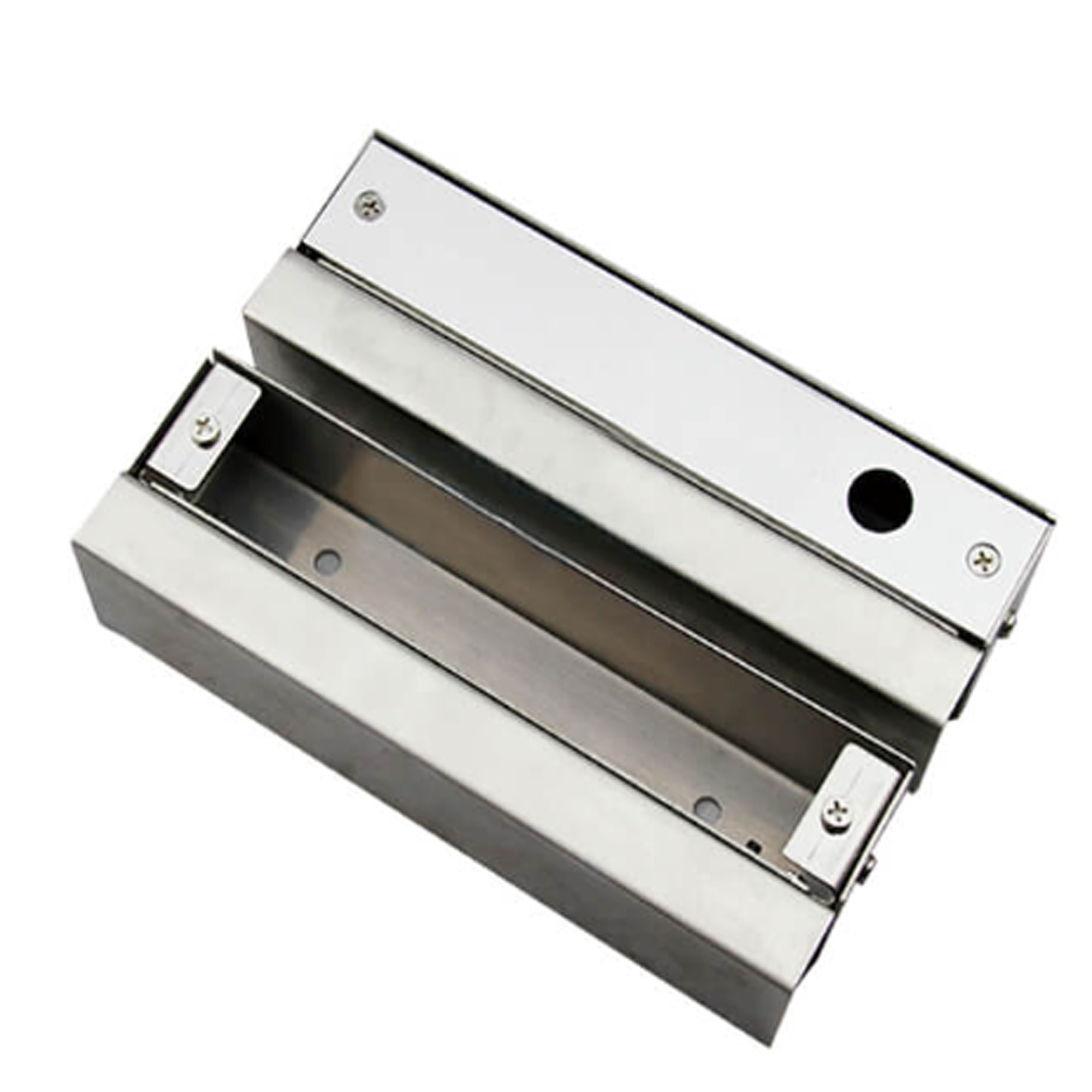

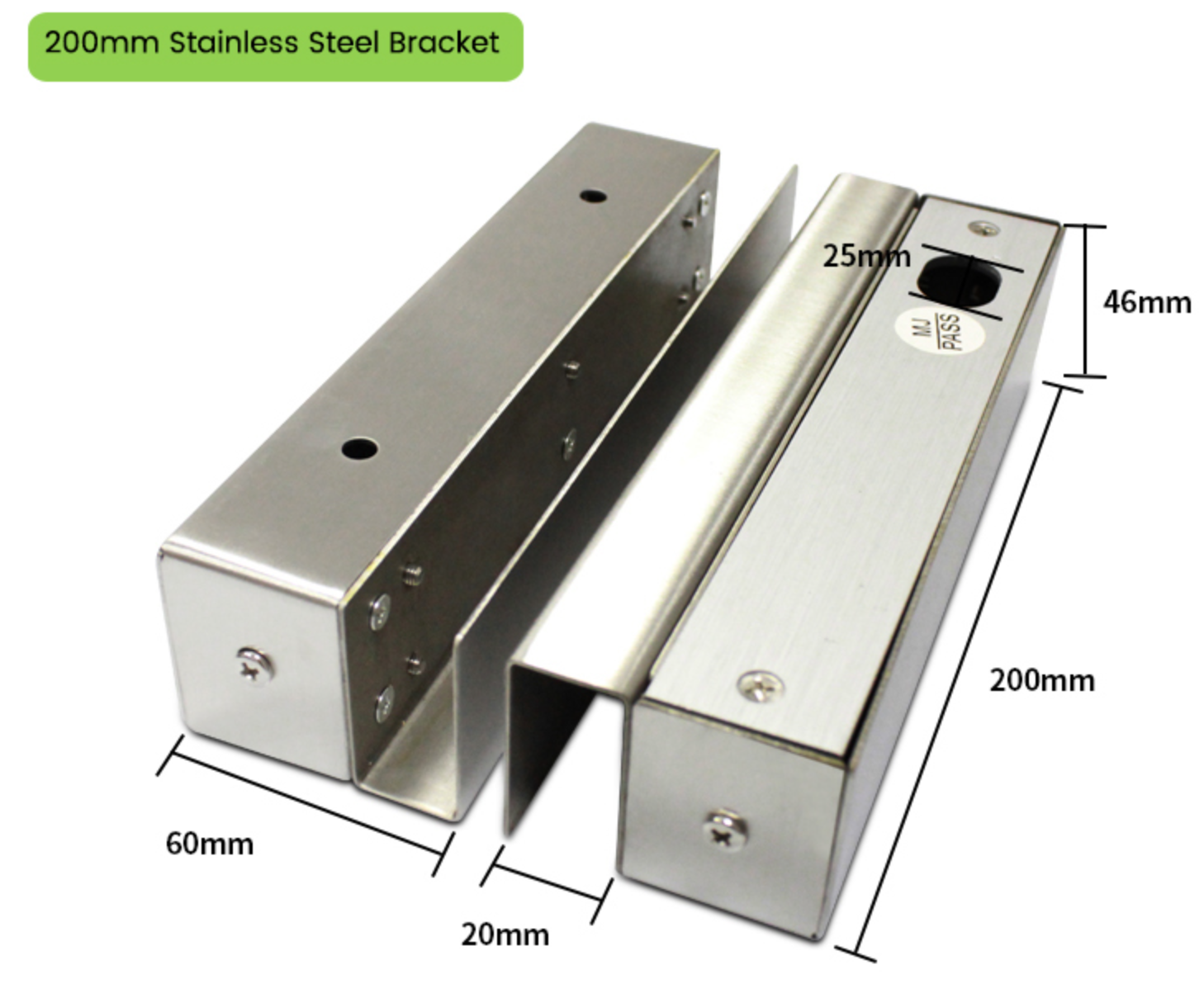

EL-BKL (U Bracket)
U Bracket adjustable for Elock-300, 600, 800S, 1200 and 1500 Series
Specially designed for glass door solution

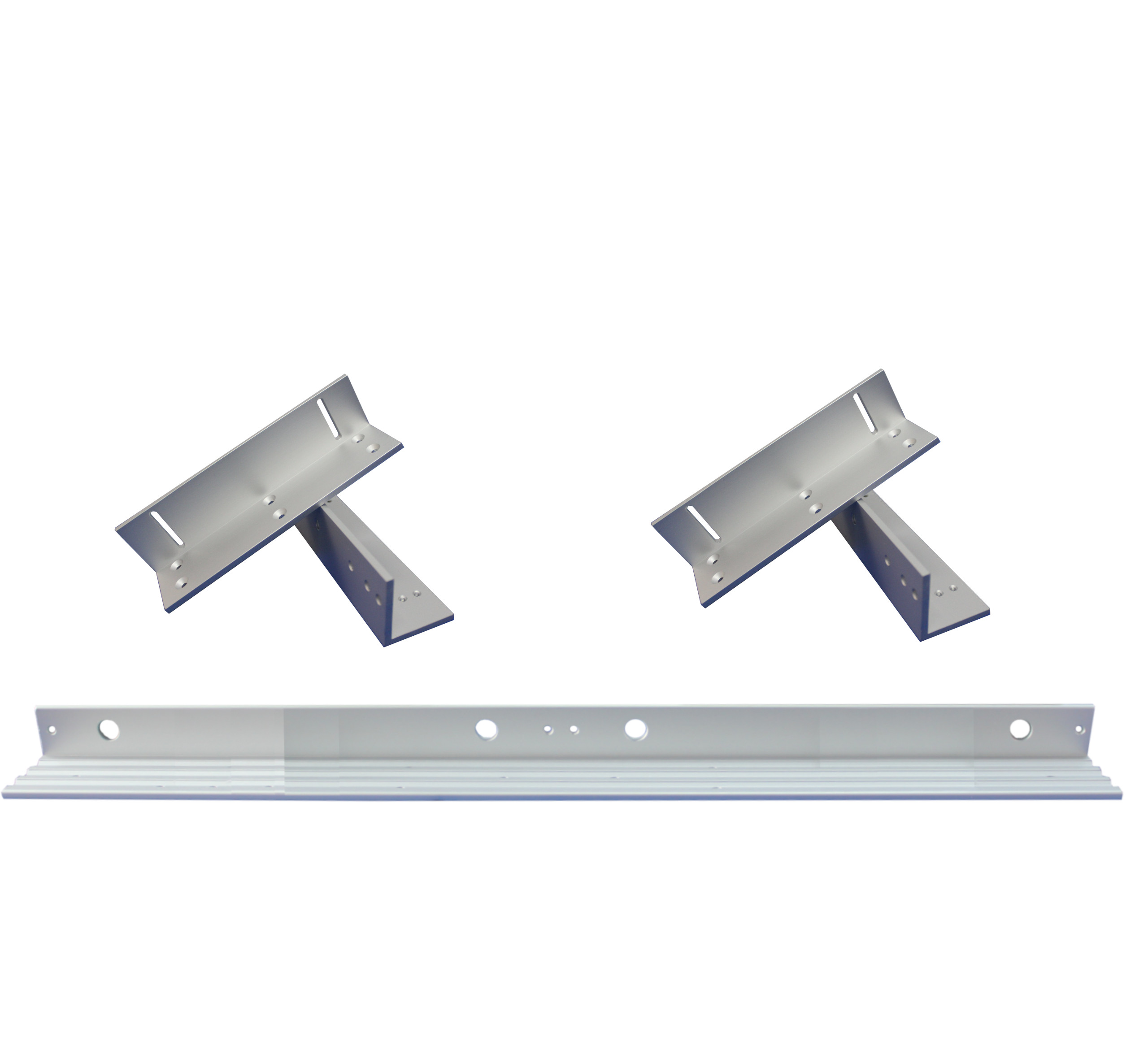

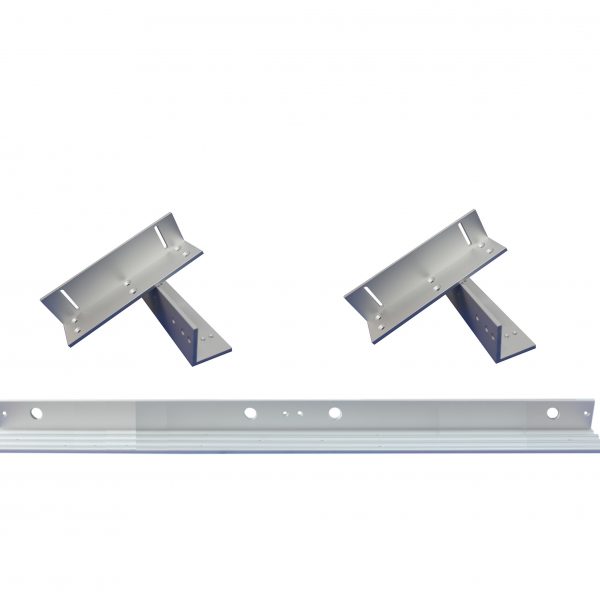

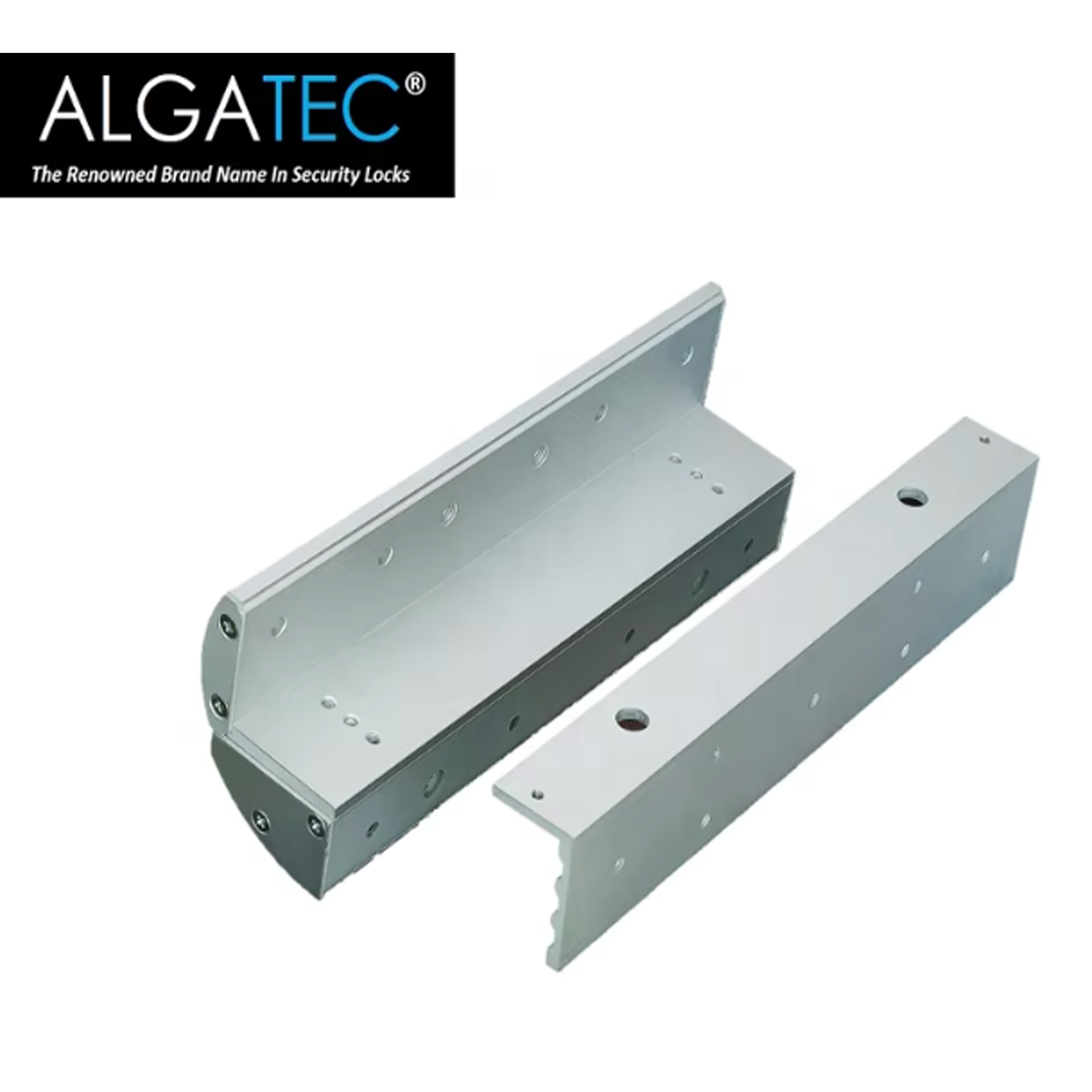

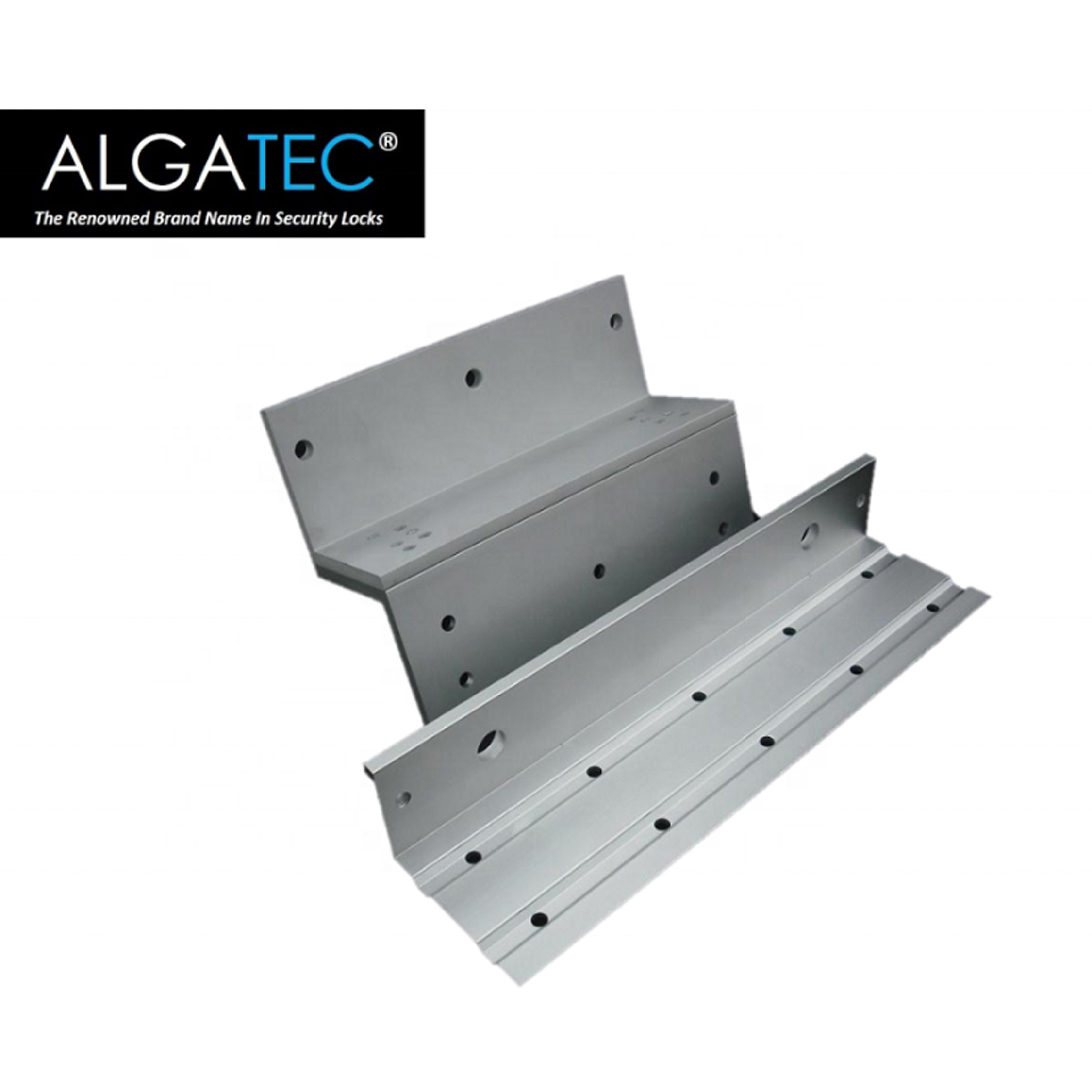

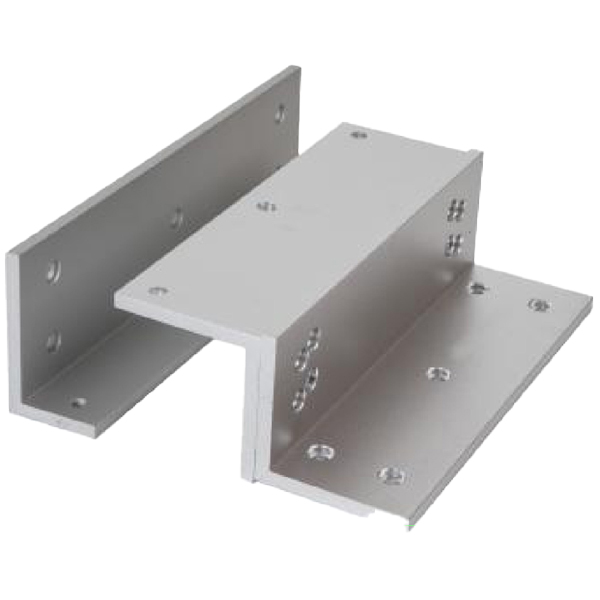

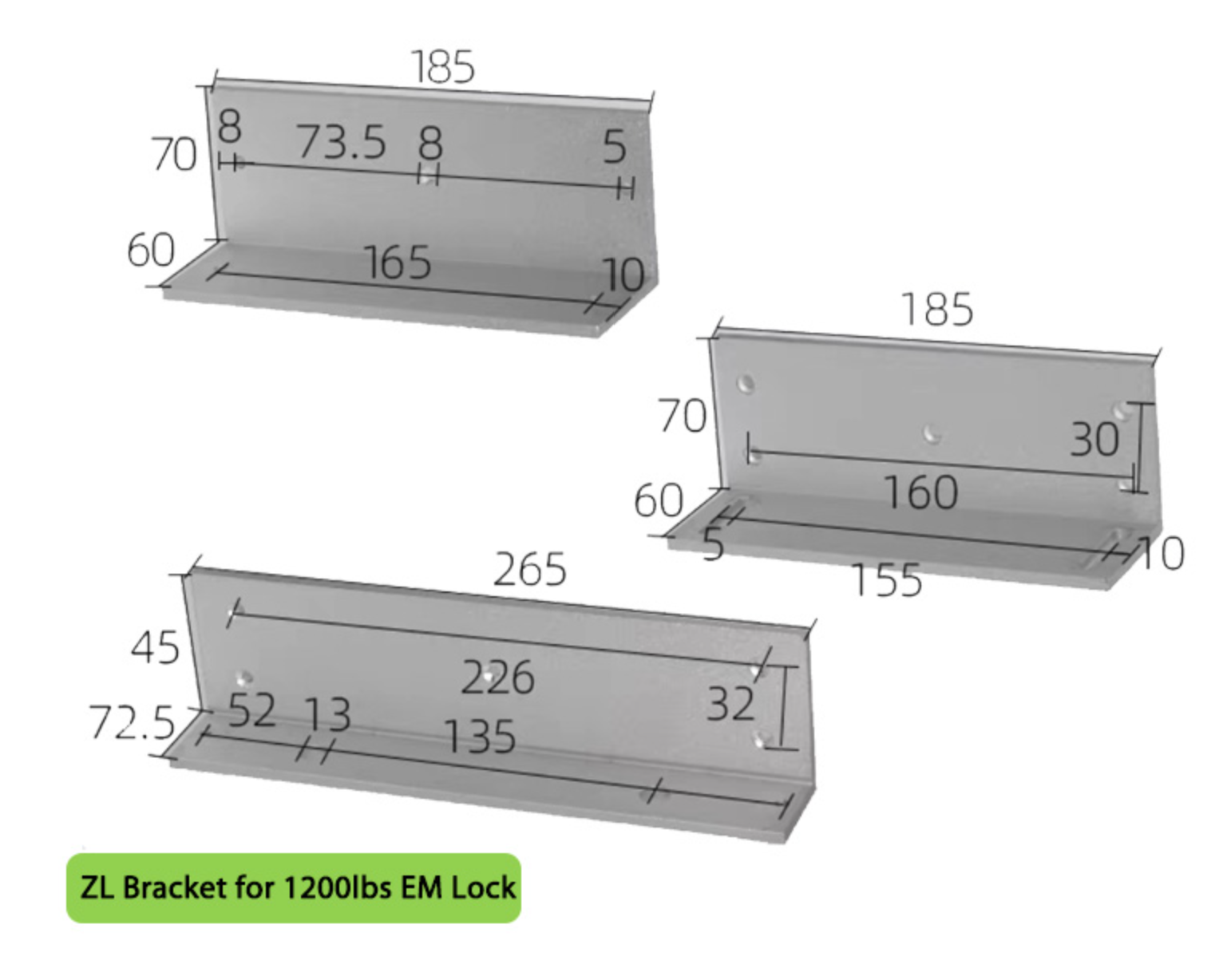

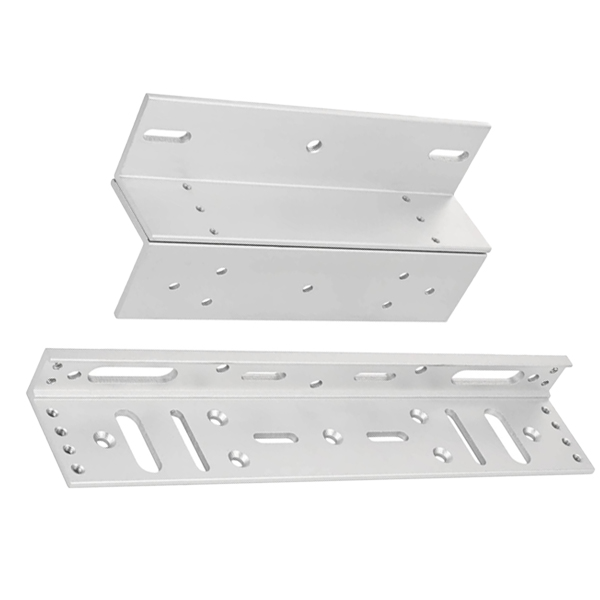

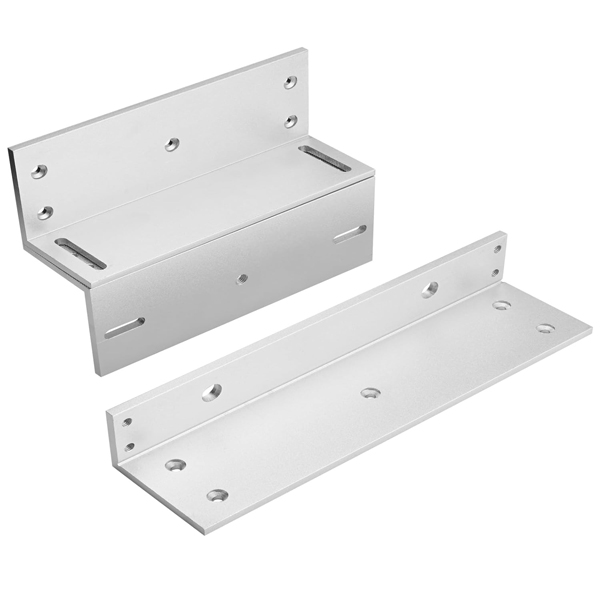

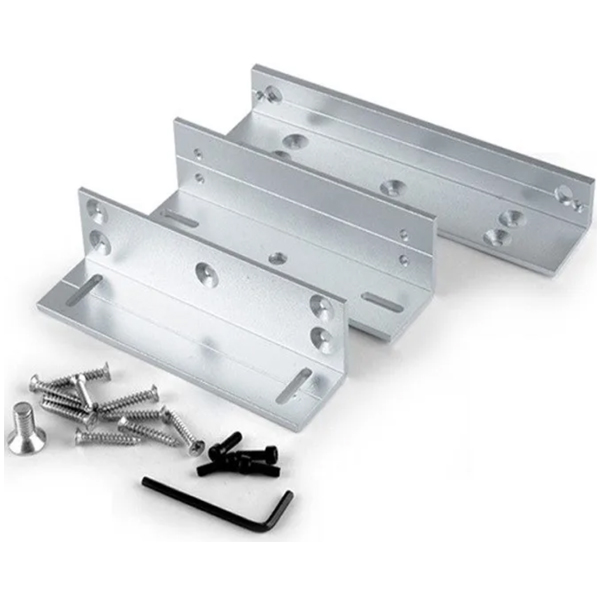

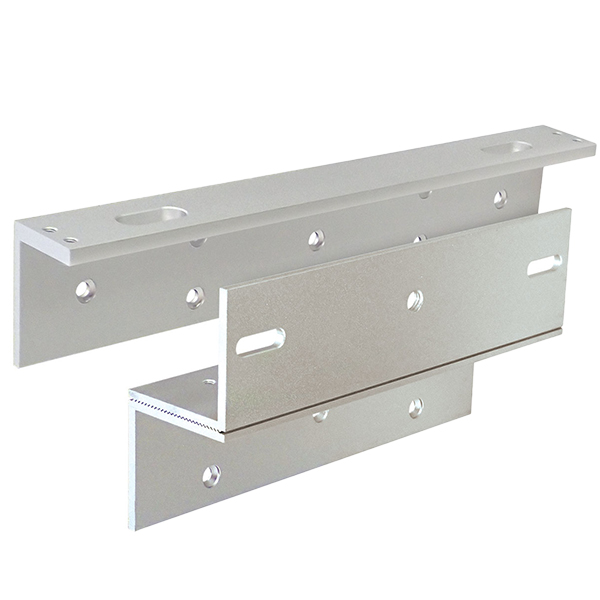

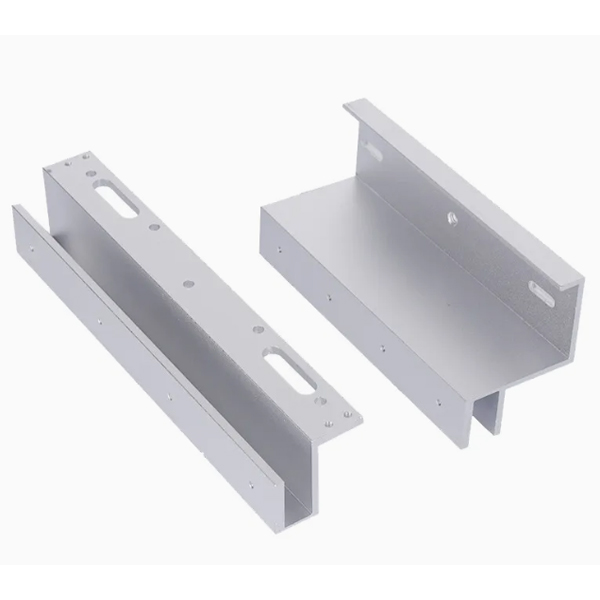

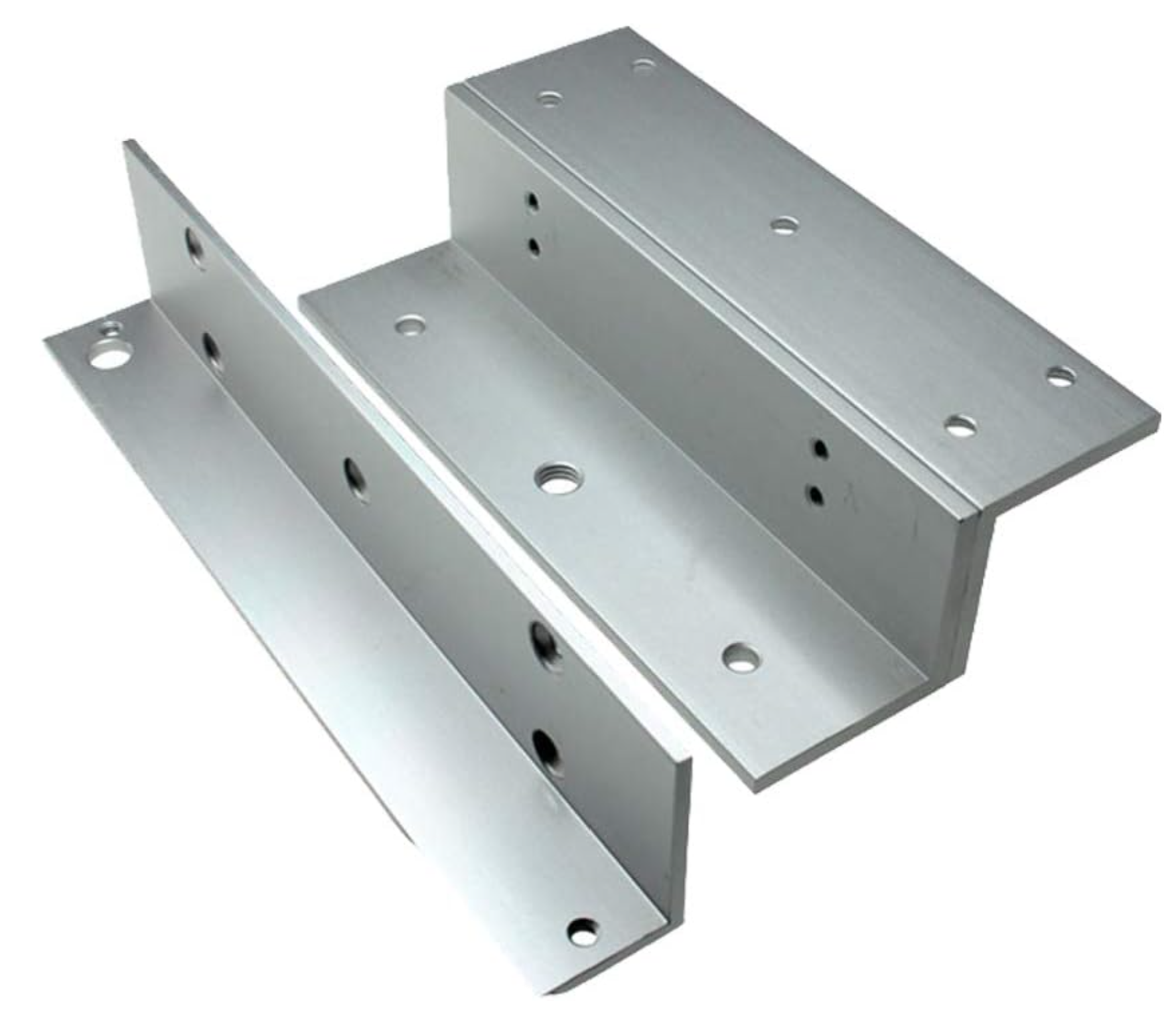

EL-BKL (ZL Bracket)
U Bracket adjustable for Elock-300, 600, 800S, 1200 and 1500
Adjustable ZL Bracket for inward door application
